TB278 Universal 3V~12V 6bit Green LED Board Module for Breadboard 3d printer MEGA2560 DUE FPGA CPLD PIC AVR STM32 ARM MSP430 MCU

TB278 Universal 3V~12V 6bit Green LED Board Module for Breadboard 3d printer MEGA2560 DUE FPGA CPLD PIC AVR STM32 ARM MSP430 MCU

  • Model: TB278
  • Availability: In stock
  • Weight: 0.003Kg
US$0.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name:3.3V 5V 12V Rapid Prototyping RED LED Breadboard starter kit for Arduiuo atmega8 MEGA2560 Pro Mini DUE MCU LoL Shiel




Packing list:


1 pcs 6 bit Green LED's Board(Does not include ARDUIUO UNO R3);

Description:

Can be inserted directly into Arduiuo uno mega2560 Breadboard,Ideal for linking up to your Arduiuo UNO Pro Mini Nano Mega2560 DUE etc,or others MCU ( AVR STM32 ARM7 ARM9 ARM10 ARM11 PIC C8051 C51 STC MSP430 FPGA/CPLD etc.)


1 6 bit Green Common Cathode LEDs.


2 7 PIN OUT 2.54mm

3 1K ohm Limiting resistor

4 Power Supply Voltage: 3.3-12V;


5 Size: 17.78MM x 11.43MM.

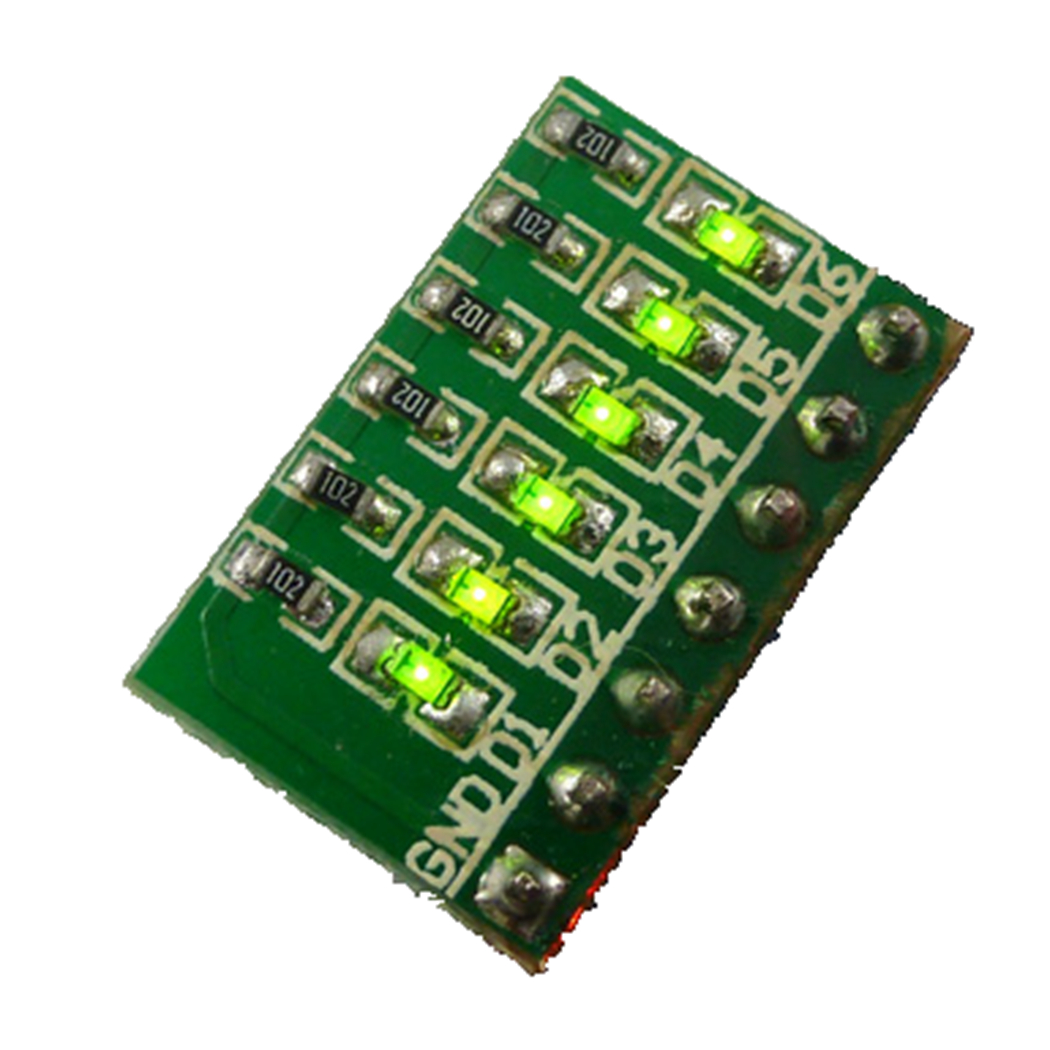

PCB:

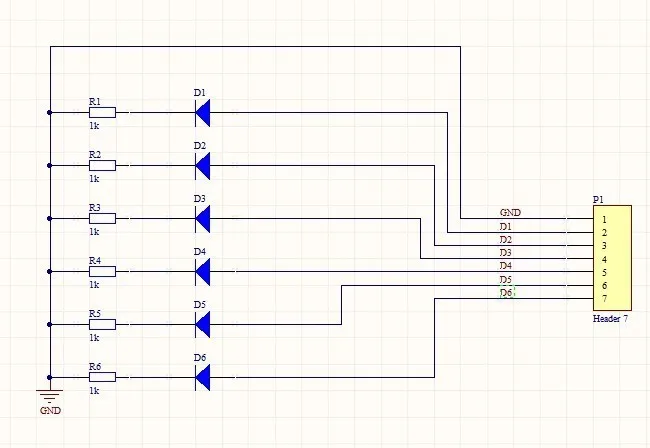

Circuit schematics :

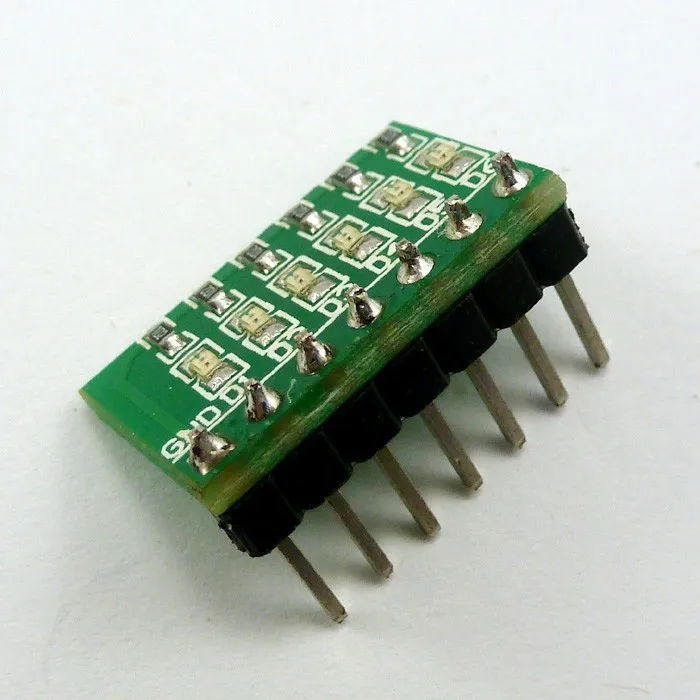

Connection with Arduiuo(Only 6 bit LED's Board ,Does not include ARDUIUO UNO R3) :


Circuit schematics :

Arduiuo uno/mega2560 Code
//******************************************************//

/*
Arduiuo_6led

This example code is in the public domain.
*/

// give it a name:
int D1 = 13;
int D2 = 12;
int D3 = 11;
int D4 = 10;
int D5 = 9;
int D6 = 8;

// the setup routine runs once when you press reset:
void setup() {
// initialize the digital pin as an output.
pinMode(D1, OUTPUT);
pinMode(D2, OUTPUT);
pinMode(D3, OUTPUT);
pinMode(D4, OUTPUT);
pinMode(D5, OUTPUT);
pinMode(D6, OUTPUT);
}

// the loop routine runs over and over again forever:
void loop() {

digitalWrite(D1, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a 200 Millisecond
digitalWrite(D1, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D2, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D2, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D3, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D3, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D4, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D4, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D5, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D5, LOW); // turn the LED off by making the voltage LOW

digitalWrite(D6, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D6, LOW); // turn the LED off by making the voltage LOW

}

//******************************************************//
