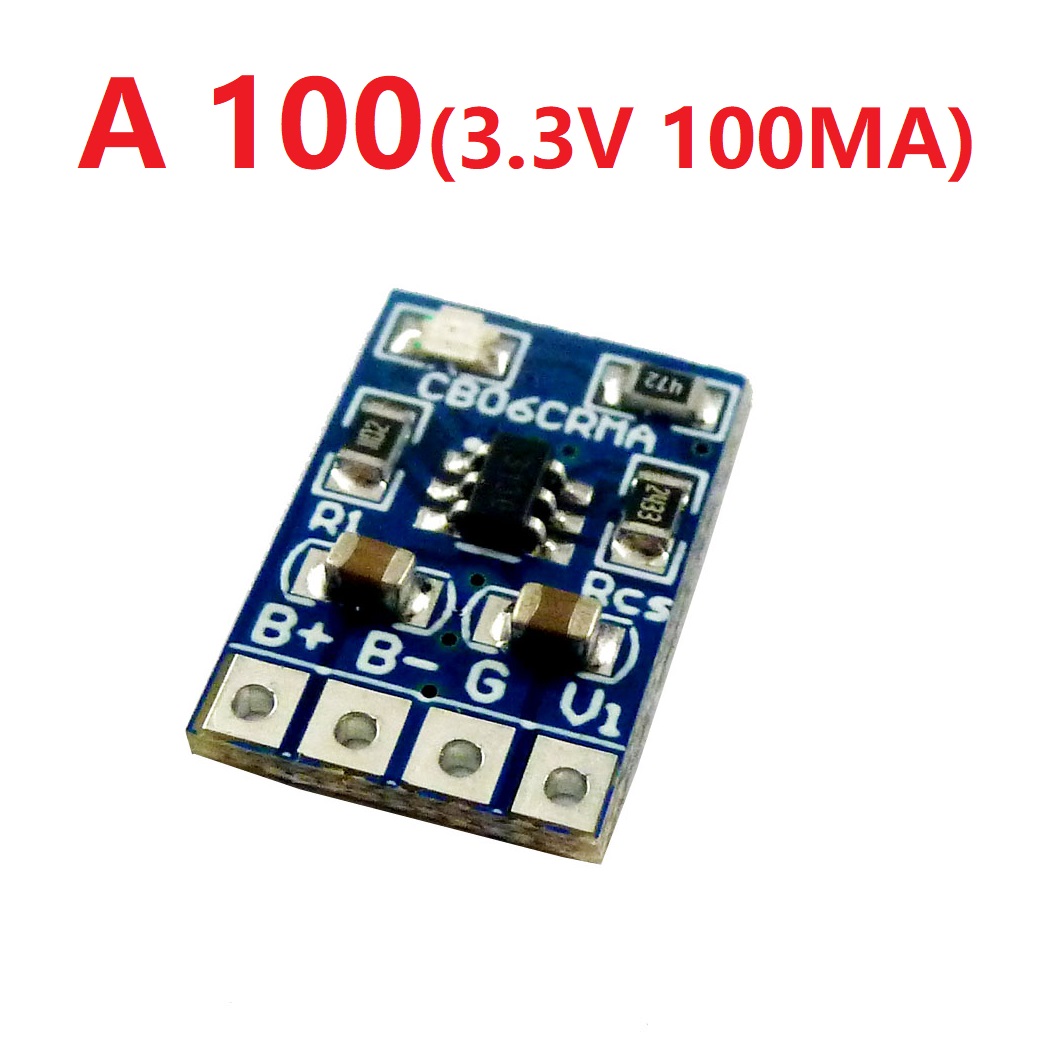

CB06CRMA 3.3V 100mA DC 3V 3.6V NI-MH Ni-CD Li-ion Polymer Coin Cell Rechargeable Lithium Battery Charger For VL2330 ML2032 1220 LIR2016

CB06CRMA 3.3V 100mA DC 3V 3.6V NI-MH Ni-CD Li-ion Polymer Coin Cell Rechargeable Lithium Battery Charger For VL2330 ML2032 1220 LIR2016

  • Model: CB06CRMA_A_100MA
  • Availability: In stock
  • Weight: 0.003Kg
US$0.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
DC 3V 3.6V NI-MH Ni-CD Li-ion Polymer Coin Cell Rechargeable Lithium Battery Charger For VL2330 ML2032 1220 LIR2016




Packing list:





3 PCS
3V 3.6V NI-MH Ni-CD Li-ion Polymer Coin Cell Rechargeable lithium battery Charger
(Please choose the parameters you need when purchasing)











Description:



3.3V A Version :


Input voltage : DC 3.9-6V(Recommend DC 4.2V/4.5V/5V)


Charging voltage : 3.3V


Charging current : 50A/100MA/200MA


Charge the 3V rechargeable Coin Cell battery.


Such as: VL2330 ML2032 ML1220 MS621 ML2016 MS414GE





4.2V B Version :


Input voltage : DC 4.5-6V(Recommend DC 5V)


Charging voltage : 4.2V


Charging current : 50A/100MA/200MA


Charge the 3.6V rechargeable Coin Cell battery OR 3.7V lithium battery.


Such as:LIR1054 LIR1220 LIR1254 LIR1454 LIR1620 LIR1632 LIR1654


LIR2016 LIR2025 LIR2032 LIR2050 LIR2430 LIR2450 LIR2477 CR2477





Automatic charge current adjustment based on the output capability of input power supply


Suitable for Solar-Powered System


Suitable for Charging Manganese Lithium, LiFePO4 and Lithium Coin Battery


Precharge Conditioning for Reviving.Deeply Discharged Cells and Minimizing Heat. Dissipation During Initial Stage of Charge


Constant Charge Current from 10mA to to 300mA(By changing the RCS resistance)


Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating


Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed


C/10 Charge Termination


Automatic Recharge





Operating ambient temperature : -40° to +85°


Storage temperature : -65° to +125°


Size 15.3mm x 10.2mm x 2.5mm(very small)


Weight : 0.45g(Very lightl)




Please contact me for detailed chip manual





The CB06CRMA is a complete constant-current /constant voltage linear charger for coin batteries. The device contains an on-chip power MOSFET and eliminates the need for the external sense resistor and blocking diode. An on-chip adaptive block can adjust charging current automatically based on the output capability of input power supply, so CB06CRMAis ideally suited for solar powered system. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature.


The regulation voltage is internally fixed at 3.3V with 1% accuracy, it can also be adjusted upwards with an external resistor. The charge current can be set externally with a single resistor. When the input supply is removed, the CB06CRMA automatically enters a low power sleep mode , dropping the battery drain current to less than 3uA. Other features include undervoltage lockout, automatic recharge and charging indicator.











Application:


Wearable equipment


Smart home


Medical equipment,Calculator


Water meters, gas and electricity


Measuring instruments, sensors
