Power supply voltage DC 3.8-6V,Charging output voltage DC 3.6V;
The maximum charge current / output current is 1A, but you can change the current by changing the value of the R1 resistor.
Precharge Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge
Constant-Current/Constant-Voltage/Constant-Temperature Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating
Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed
C/10 Charge Termination
Automatic Recharge
Battery Temperature Sensing
Battery Overvoltage Protection

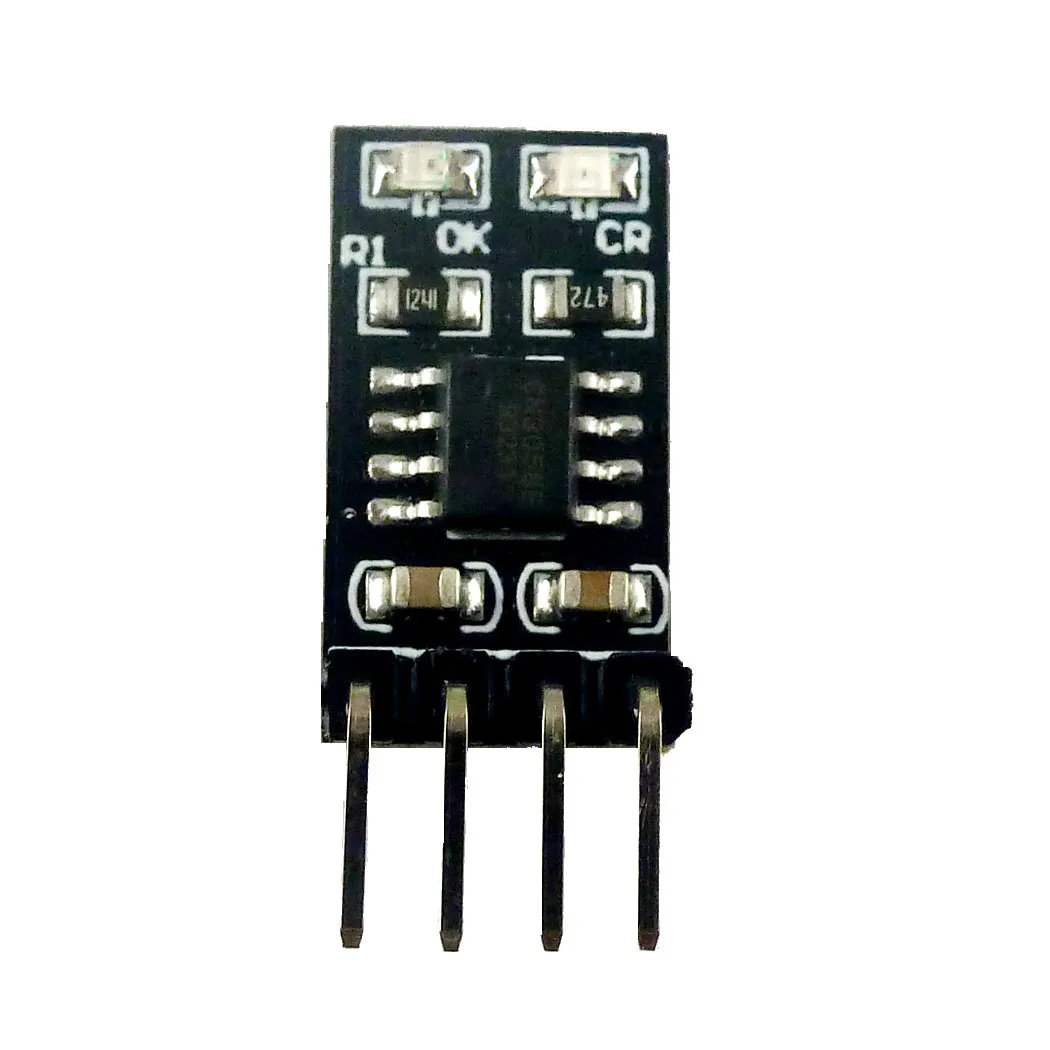

Led indicator : ''CR'' LED is charge status indicator
''OK'' LED is fully charged OR Constant voltage mode;
Operating Ambient Temperature－40℃ to ＋85℃
Size 18mm x 10.16mm x 2.7mm
Weight : 0.9g(With Pin),0.6g(No Pin)
Children's toy car, toy airplane
Solar battery charging
Mobile Loadspeaker
Electric Bicycle Charger
UPS Uninterruptible power supply
Portable Industrial and Medical Equipment
Standalone Battery Chargers
Hand-held Equipment
Battery-Backup Systems
Portable Industrial and Medical Equipment
Miner's lamp
LiFePO4 battery applications
The charging current can be changed by changing the value of resistor R1
0805 1% SMD resistor is recommended
