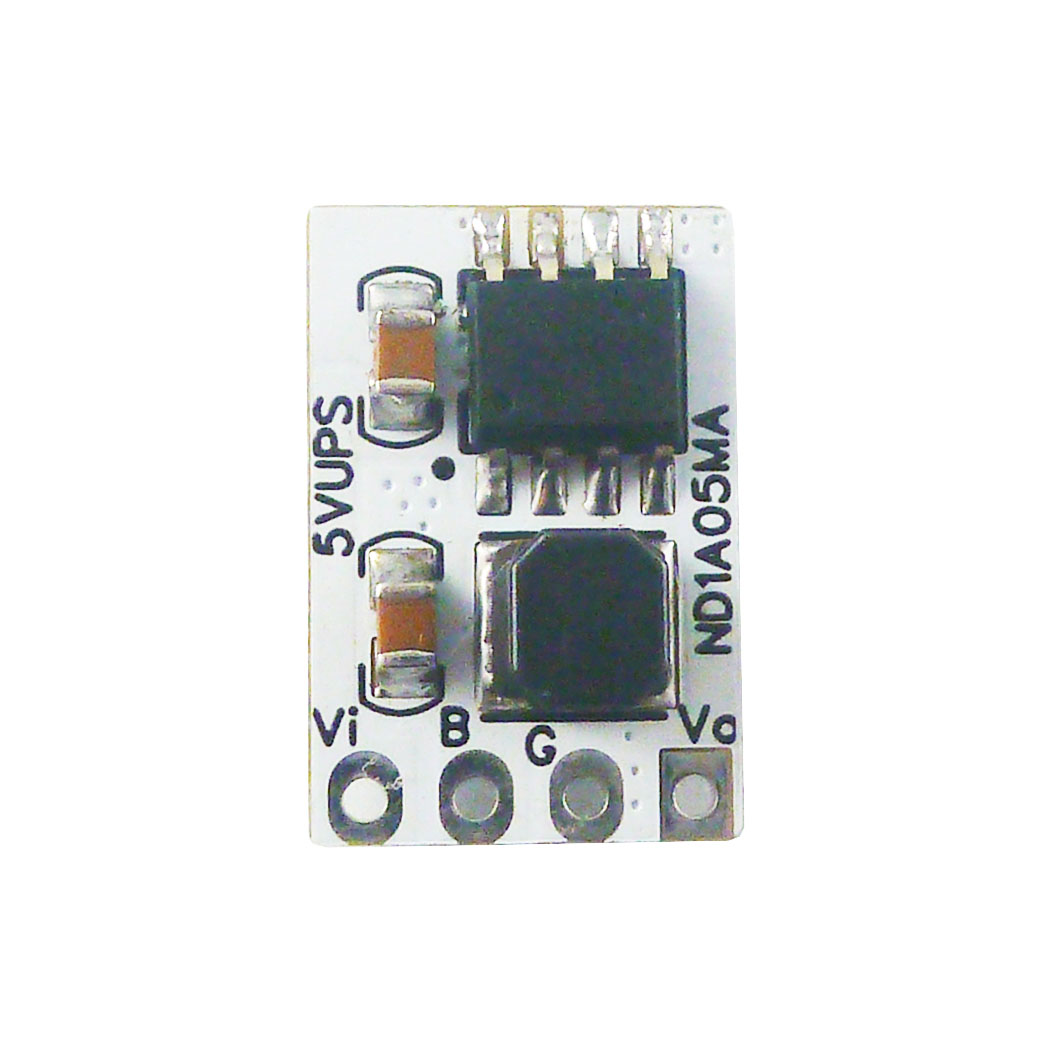

1PCS ND1A05MA 2 in 1 Charge and Boost modules 5V Output Module
Description:
2 in 1 Charge and Discharger(Boost) UPS modules
Charge voltage : DC 5V(4.5V-6V)
Charging current : 500mA(The charging current can be adjusted by modifying the R1 resistance value.)
Full charge voltage : 4.15-4.24V
Discharge voltage: 5V
Discharge current: 1000MA
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°
Small Size: 15*10.6*5MM
Light Weight :<0.8g
5V Input 5V/1A Uninterrupted Output
100μA No load Iq
Up to 96% Efficiency during Boosting
Programmable Charging Current
Short-circuit Protection
Boost Output to Input Reversed Current Protection
1 The charging current is only 500MA. When the average discharge current is greater than 500MA, please use a larger capacity battery and fully charge the battery first.
2 Be sure to connect the lithium battery when using it
3 If the heat is severe, please reduce the output current or enhance heat dissipation.
Tips:
The module has a simple charge and discharge protection function.
You can use batteries without a protective plate or with a protective plate.
Applications:
for Arduino UNO MEGA2560 Uninterrupted Power Supply
Battery powered equipment
Lithium Battery 18650 14500
UPS power supply equipment diy
Solar charging
STM32 FPGA/CPLD PIC AVR Board
Electronic diy kit
Wifi Module ESP8266 ESP32
Bluetooth-Compatible Module:HC-05 HC-06 SPP-C
Pin Description:
Vo 1A Discharge output port positive(5V)
G GND(0V)
B Battery Charging positive pole(4.20V)
Vi Input Power positive pole(4.5-6V)
