Product Name : Mini Dc-Dc 1.2A 3V 3.3V 3.7V 4.5V To 5V 9V 12V Step-Up Current Mode Pwm Converter Dc Voltage Inverter

Packing list:

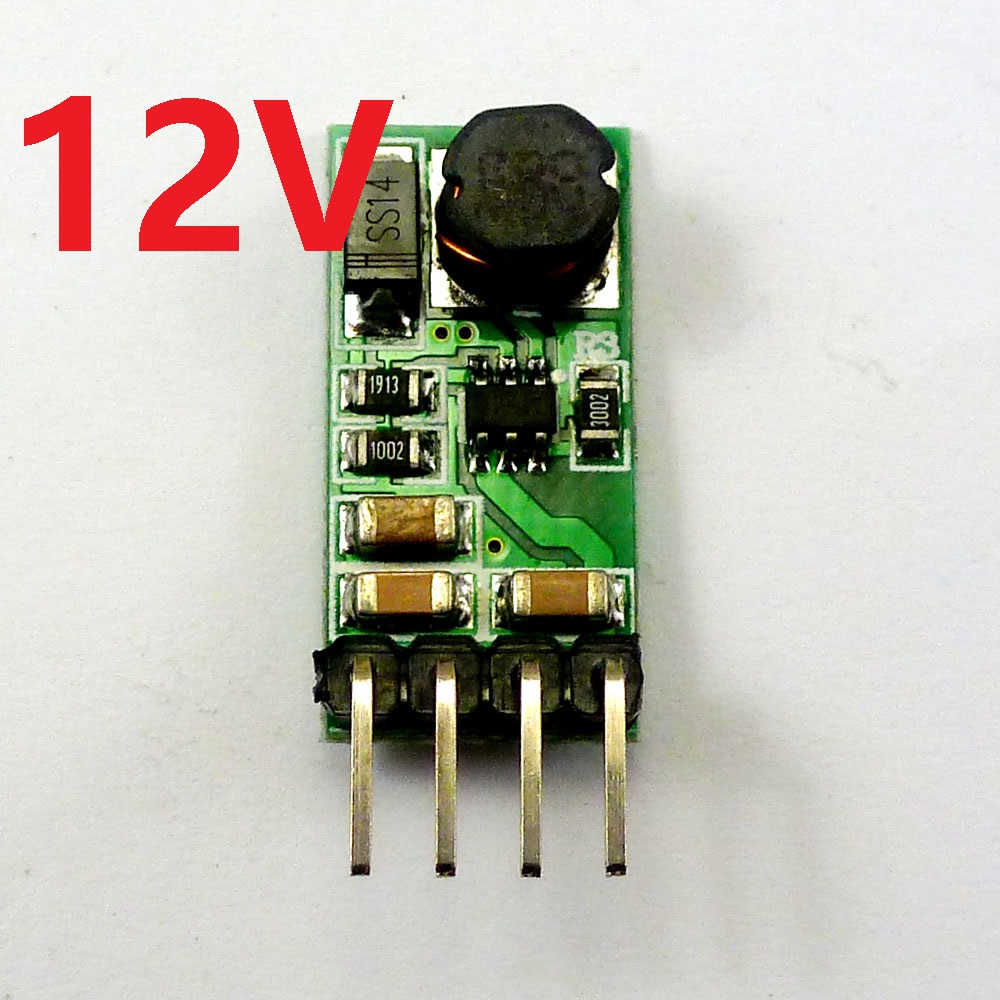

1 PCS 5W 3V-4.5V TO 5V 9V 12V Boost Step-UP Voltage Regulator Module



Description:
5V:
Input voltage 2.6~6V, output 5V (deviation +-6%)
Maximum input current : 1.2A
Long-term work Current : 1A
Conversion efficiency : 79-91%
Start Voltage 2.6V, Output Current 50MA
INPUT 2.8V 1A; OUTPUT 5V 290MA
INPUT 3V 1A; OUTPUT 5V 480MA
INPUT 3.3V 1A; OUTPUT 5V 590MA
INPUT 3.7V 1A; OUTPUT 5V 650MA
INPUT 4.5V 1A; OUTPUT 5V 790MA


9V:
Input voltage 2.8~6V, output 9V (deviation +-5%)
 Maximum input current : 1.2A
Long-term work Current : 1A
Conversion efficiency : 81-91%
Start Voltage 2.8V, Output Current 60MA
INPUT 3V 1A; OUTPUT 9V 290MA
 INPUT 3.3V 1A; OUTPUT 9V 330MA
 INPUT 3.7V 1A; OUTPUT 9V 360MA
 INPUT 4.5V 1A; OUTPUT 9V 440MA
 INPUT 5V 1A; OUTPUT 9V 490MA
 INPUT 6V 1A; OUTPUT 9V 590MA


12V:

Input voltage 2.8~6V, output 12V (deviation +-5%)

Maximum input current : 1.2A

Long-term work Current : 1A

Conversion efficiency : 80-90%

Start Voltage 2.8V, Output Current 50MA

INPUT 3V 1A; OUTPUT 12V 220MA

INPUT 3.3V 1A; OUTPUT 12V 250MA

INPUT 3.7V 1A; OUTPUT 12V 280MA

INPUT 4.5V 1A; OUTPUT 12V 340MA

INPUT 5V 1A; OUTPUT 12V 370MA

INPUT 6V 1A; OUTPUT 12V 450MA



DC-DC Boost module working frequency 1.0MHZ.

Operating ambient temperature : -40~+85 Degrees Celsius

2.54mm pin pitch,Arduiuo UNO DUE Breadboard FPGA/CPLD Development Board friendly.

Excluding Pin Size 20.5mm x 10.16mm x 5.6mm(Very small)

Weight : about 1.4g(Very light)



Applications:

MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR

C8051 etc


PLC Modbus RS485

VCR

PDA

LED Lighting

12V Relay board

Wireless communication equipment

315M 433M Wireless remote controller



Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range

2 Output power can not be greater than the maximum load for a long time

3 Input power must be greater than the output power, because the power consumption of the module itself
