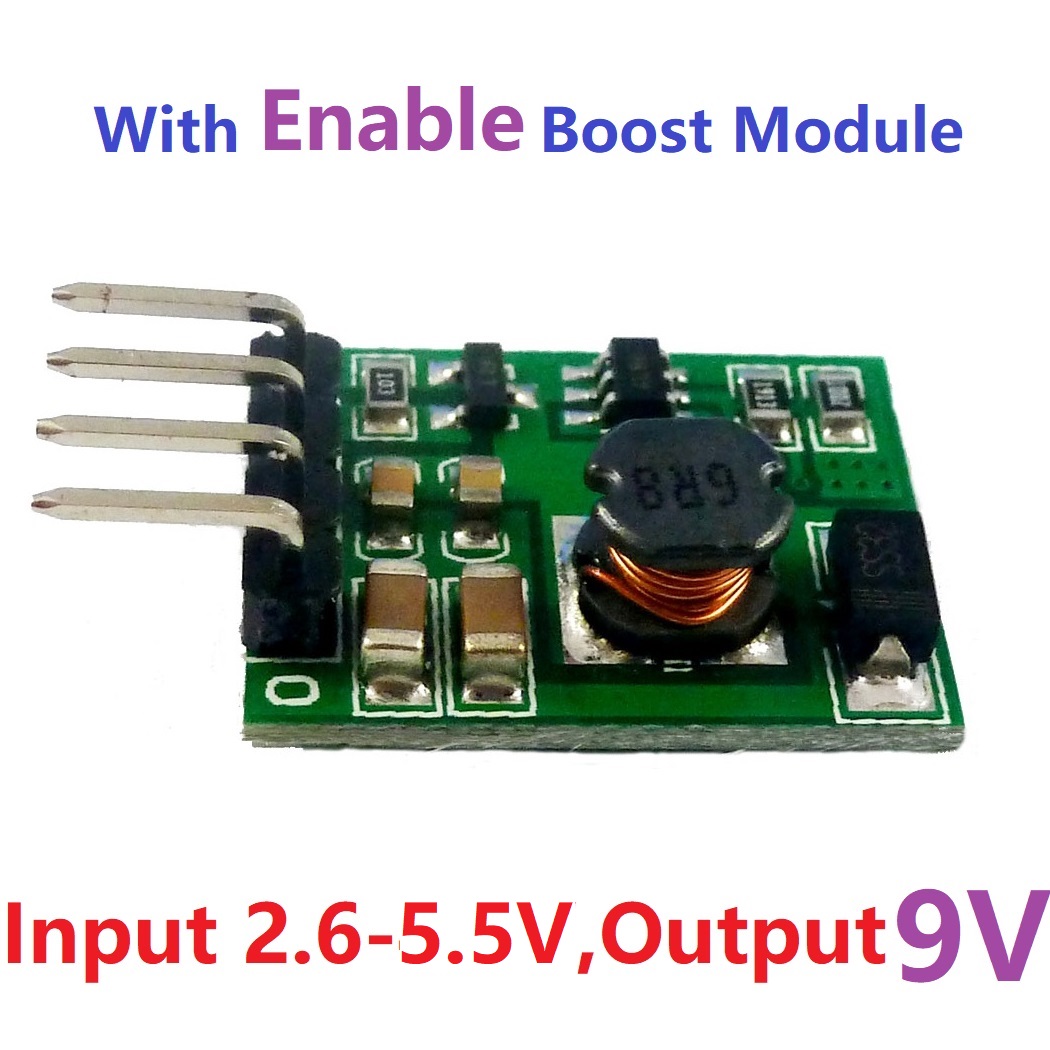

DDEN12MA With Enable Dc-Dc Step-Up Boost Converter 3V 3.3V 3.7V To 9V Voltage Regulate for Arduiuo Breadboard Stm32 Lcd

DDEN12MA With Enable Dc-Dc Step-Up Boost Converter 3V 3.3V 3.7V To 9V Voltage Regulate for Arduiuo Breadboard Stm32 Lcd

  • Model: DDEN12MA_9V
  • Availability: In stock
  • Weight: 0.003Kg
US$1.59
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name:

Multifunction with Enable ON/OFF 6W DC-DC Step-up Boost Converter Voltage Regulate 2.6-5V to 5V 6V 9V 12V



Packing list:
1 PCS 6W DDEN12MB Input 2.6V-5.5V Output 5V/6V/9V12V DC-DC Boost Converter Module
(Specific according to the version and quantity you choose)




Description:


DC DC Boost Converter Module working frequency 1MHZ.

Up to 94% Efficiency (usually is 75%-91%)

Quiescent current : Turn on output 210uA,Turn off output 5uA.

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

Size : 20 x 15 x 6MM
Weight : 1.5g


Protection :

Over current protection(OCP)
Over voltage protection(OVP)
Short circuit protection(SCP)
Over temperature protection(OTP)

Pin description:

Pin description:
Vi : Input positive(+)
En : Output enable, Connect to GND turn on output, Not connected(Or Connect to Vi) turn off output
This pin can also be controlled by MCU, low level turn on output, high level Turn off output
G : Input and Output negative(GND/-)
Vo: Output positive(+)

Output 5V :

Input voltage DC 2.6 ~ 4.5V,output DC 5V±3%
Maximum output : 5V/1300MA(See the table below for details)



Output 6V :

Input voltage DC 2.6 ~ 5.5V,output DC 6V±3%
Maximum output : 6V/1100MA(See the table below for details)


Output 9V :

Input voltage DC 2.6 ~ 5.5V,output DC 9V±3%
Maximum output : 12V/700MA(See the table below for details)


Output 12V :

Input voltage DC 2.6 ~ 5.5V,output DC 12V±3%
Maximum output : 12V/550MA(See the table below for details)



Applications

Battery powered equipment
Instrumentation, multimeter
Small power motors
PTZ Camera webcam
IP Camera
Toy car boat
Model aircraft
power bank
LED Lighting
WIFI Router
PLC RS485 devices



Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



Q & A:


Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
