TB397 5V DC-DC 3-6.8V to DC 5V 9V 12V Step Up Boost Voltage Converter Power Supply UPS Module For Led Motor

TB397 5V DC-DC 3-6.8V to DC 5V 9V 12V Step Up Boost Voltage Converter Power Supply UPS Module For Led Motor

  • Model: TB397_5V
  • Availability: In stock
  • Weight: 0.01Kg
US$2.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name:
DC-DC 3-6.8V to DC 5V 9V 12V Step Up Boost Voltage Converter Power Supply UPS Module For Led Motor


Packing list:
1 pcs Step-up Voltage Converter module (5V or 9V or 12V)
1 pcs Plastic shell


Description:
5V
Input voltage DC 1.5-5V, output DC 5V
Maximum output current: 3.5A
Start Voltage: 1.5V
Input 2.5V Output Current 5V 0.4A
Input 3V Output Current 5V 0.8A
Input 3.3V Output Current 5V 1.5A
Input 3.7V Output Current 5V 2.5A
Input above 4V Output Current 5V 3.5A
Module Properties: non-isolated step-up BOOST module

9V
Input voltage DC 2.5-6.8V, output DC 9V
Maximum output current: 3.5A
Start Voltage: 1.5V
Input 3.3V Output Current 9V 0.6A
Input 3.7V Output Current 9V 1.2A
Input 5V Output Current 9V 2.5A
Input above 6V Output Current 9V 3.5A
Module Properties: non-isolated step-up BOOST module



12V
Input voltage DC 3-6.8V,output DC 12V
Maximum output current: 2.5A
Input 3.3V Output Current 12V 0.5MA
Input 3.7V Output Current 12V 1A
Input 5V Output Current 12V 2A
Input above 6V Output Current 12V 2.5A


Conversion Efficiency: 80-90%(Typical)
Operating Temperature:Industrial main chip
Short circuit protection:No.(Please Install fuses or protection circuits at Input port)
Input Reverse Polarity Protection: No.Please Series diode at the input port

Size:50(L)*25(W)*9(H)mm


Note :
1: Input voltage cannot bigger than the output , or boost part does not work. Voltage difference cannot be more than three times ,or the output power is limited !
2: No-load current: 12V output board (IN 5V = 22mA,6V = 17mA );


This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

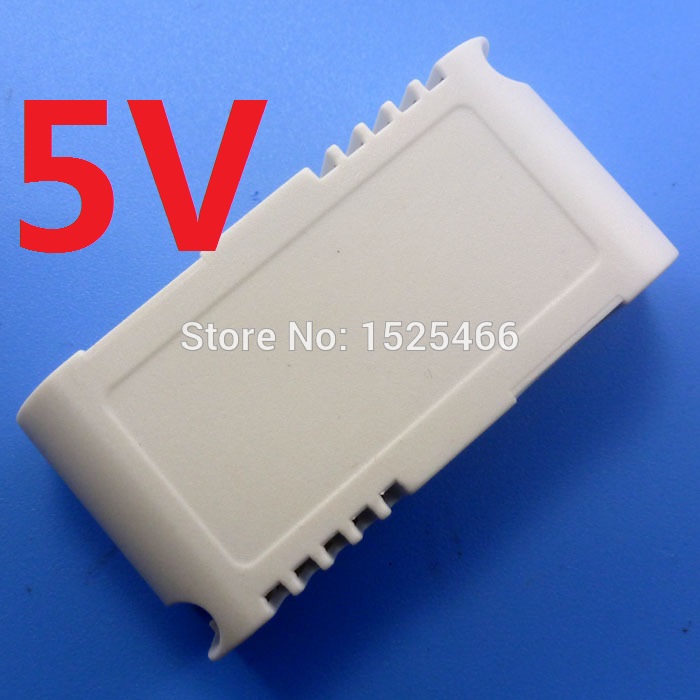

Power supply Plastic shell:
Enclosure Material: PC
Outside diameter : 42 x 40 x 21
Inside diameter : 39 x 37 x 19
