DD32AJ4B 4CH 3A 3.3V 5V 12V ADJ DC DC Buck Converter Module Multiple Switching Power Supply with DIN Rail Case for PLC UPS Power Bank

DD32AJ4B 4CH 3A 3.3V 5V 12V ADJ DC DC Buck Converter Module Multiple Switching Power Supply with DIN Rail Case for PLC UPS Power Bank

  • Model: DD32AJ4B_R
  • Availability: In stock
  • Weight: 0.12Kg
US$16.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name : 4CH 3A 3.3V 5V 12V ADJ DC DC Buck Converter Module Multiple Switching Power Supply with DIN Rail Case for PLC UPS Power Bank

Packing list:

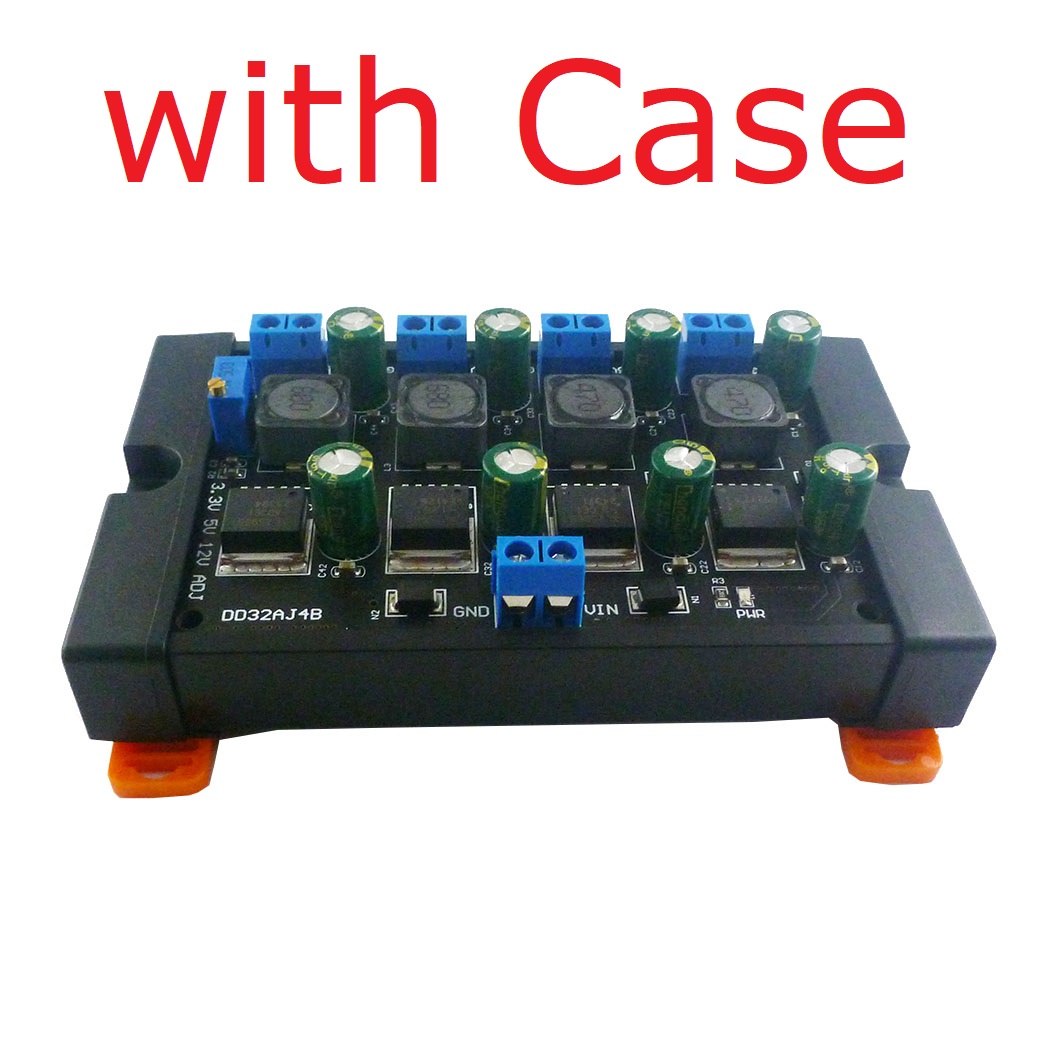

1 PCS DD32AJ4B 3A 4CH with din rail mount DC DC Step-Down Buck Converter Module
Description:

4-channels Step-down Buck DC-DC Converter power module

3.3V output: Input 4.5-30V, Output 3.3V (±3%)
5V output : Input 6.5-30V, Output 5V (±3%)
12V output : Input 13.5-30V, Output 12V (±3%)
AJD output : Input 4.5-30V, Adjustable Output 2-28V
Maximum output current per channel : 3A;
Overall maximum load power: 50 watts
Master chip : XL2596(compatible LM2596)
Working frequency 150KHz.
Input reverse connection protection
Built in thermal shutdown function,Built in current limit function,Built in second current limit function

Operating Temperature :–40°C to +85°C
Storage Temperature : –65°C to +150°C

Size : 92 x 60 x 15mm(only Board),92 x 60 x 15mm(with Case)
Weight : 58g(only Board),117g(with Case)


Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



Applications:

MCU ARM STM32 CPU FPGA/CPLD Pro Mini MEGA3560 Raspberry Pi
PTZ CCTV IP Camera
PLC RS485 Relay
Smart home / Home automation
WIFI Router Switch Network equipment
LED Motor Driver
Lead-acid batteries

Solar Panel Battery powered equipment
Wireless Module:Nrf24l01 SI4432 SI4463 CC1101 CC2500 CC2530 Zigbee
