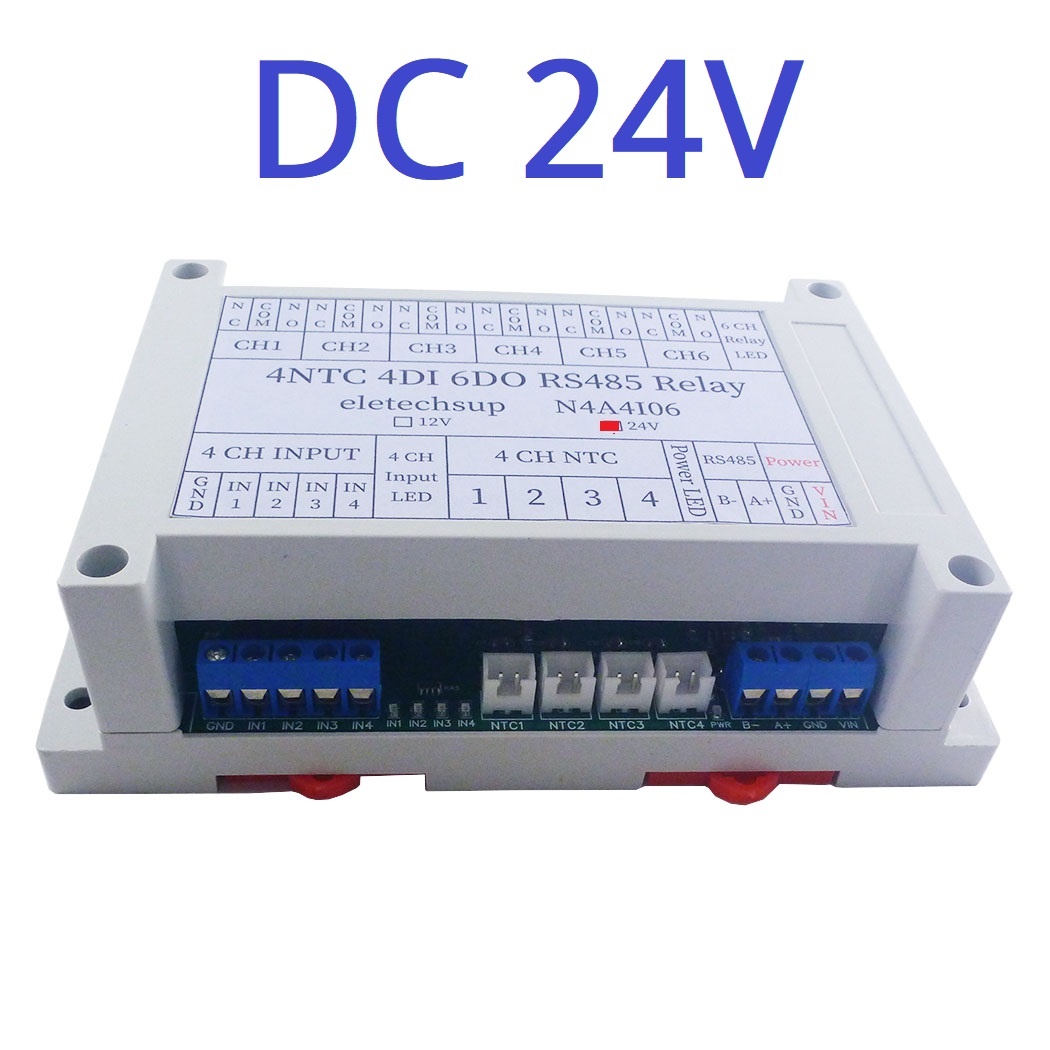

N4A4I06 24V 14CH Multifunction RS485 Network Bus NTC Temperature Collector 4AI-4DI-6DO Modbus RTU PLC Remote IO Analog Digital Expander

N4A4I06 24V 14CH Multifunction RS485 Network Bus NTC Temperature Collector 4AI-4DI-6DO Modbus RTU PLC Remote IO Analog Digital Expander

  • Model: N4A4I06_24V
  • Availability: In stock
  • Weight: 0.2Kg
US$26.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Package inlcuded:

1PCS DC 12V/24V 4AI-4DI-6DO NTC Temperature collector Multifunctional relay module

Features:

1 Working voltage: DC 12V/24V
2 Working current: 9-15MA,

3 4-channel NTC (10K B value 3950) temperature input, 4-channel photoelectric isolation switch input (NPN), 6-channel 10A relay output

4 Supports standard Modbus RTU instructions, function code: write 05/06/15/16 read 01/02/03/04

5 With hardware restore to factory settings function, with TVS anti-surge protection

6. In MODBUS command mode, up to 64 devices can be supported in parallel.

7 The default baud rate is 9600BPS. You can select the baud rate 2400 4800 19200 38400 57600 115200BPS through instructions.

8 You can choose the check mode as no check, even check and odd check.

9 You can set the data sending return time, the maximum can be set to 1000ms

10 Housing with DIN rail

11 size size 145*90*40mm
12 Weight: 198 grams

13 Maximum load: 10A/250VAC, 10A/125VAC, 10A /30VDC, 10A /28VDC, 10A /12VDC


For more information, please contact me

NTC sensor specifications:
Product Name: 5*25mm NTC Waterproof Probe
Total length : 50CM
Resistance value: 10K
Resistance accuracy: ±1%
Resistance B value: 3950 ± 1%
Temperature range: -20 ° C -125 ° C
Wire size: 2651 26# parallel line temperature 105 °C
Plug model: XH2.54-2P



Wiring Diagram:
6CH 10A Relay Output
4CH NPN Digital Input
4CH Analog Input(NTC Temperature Sensor)
