Operating Voltage : 5-24VDC
Power interface : 2.1mm x 5.5mm Female Male DC Power socket
Audio interface : 2x 3.5mm audio jack socket
MCU input interface : 7x 2.54MM pin header,GND 5V D3 D2 D1 D0 STD
Size : 63*40*13mm
Weight : 16g

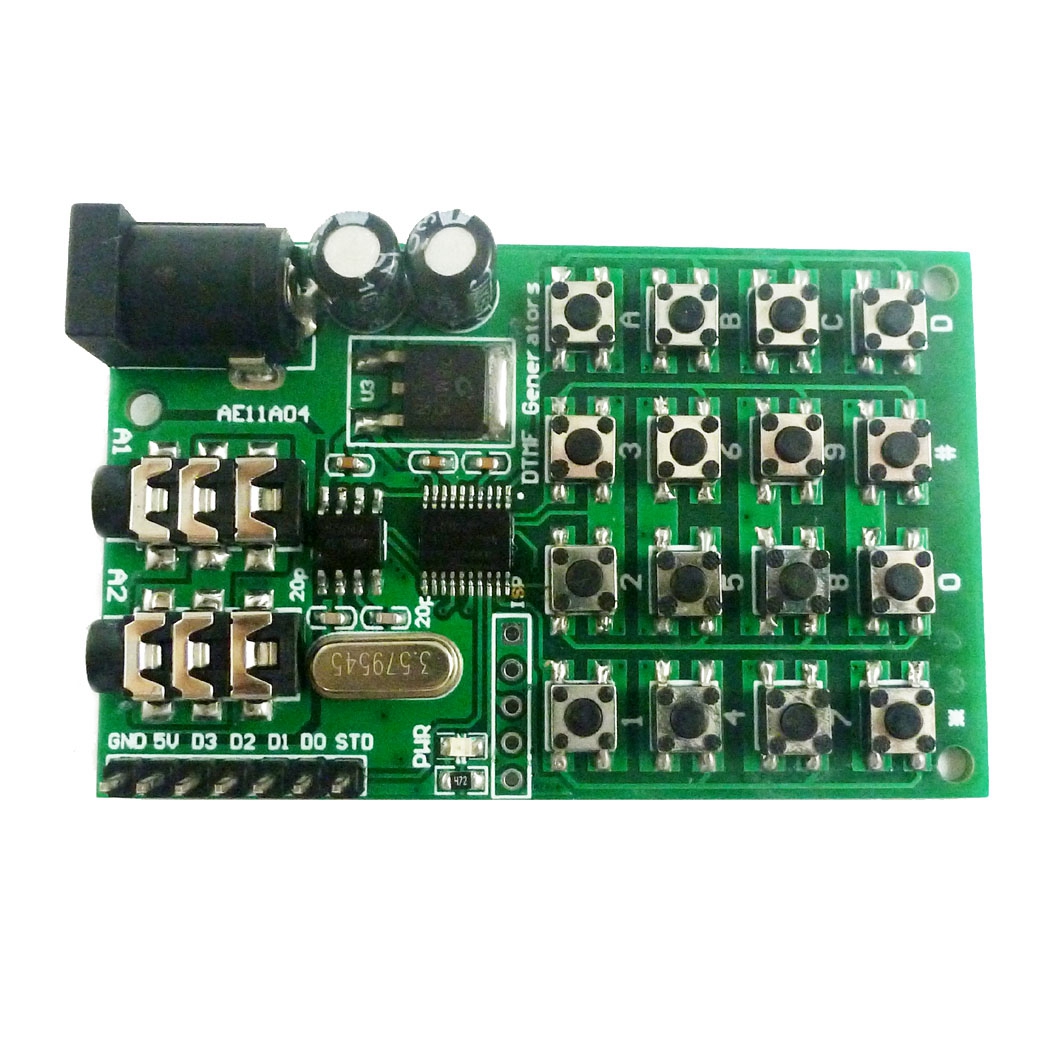

The AE11A04 DTMF tone generators are designed
for Dialing keyboard AND MCU interfaces. They can be instructed by a
MCU(OR Dialing keyboard ) to generate 16 dual tones from the Audio 1/2 . 16 dual tones is ''1234567890#*ABCD''
For more information, please contact us
Applications:
DTMF Remote control switch
Smart Home / Home Automation
Automotive electronics
Industrial automation and control
DTMF Relay measurement
Audio 1: This is a universal interface that connects most audio devices. For example: mobile audio interface, PC audio interface, DTMF decoder

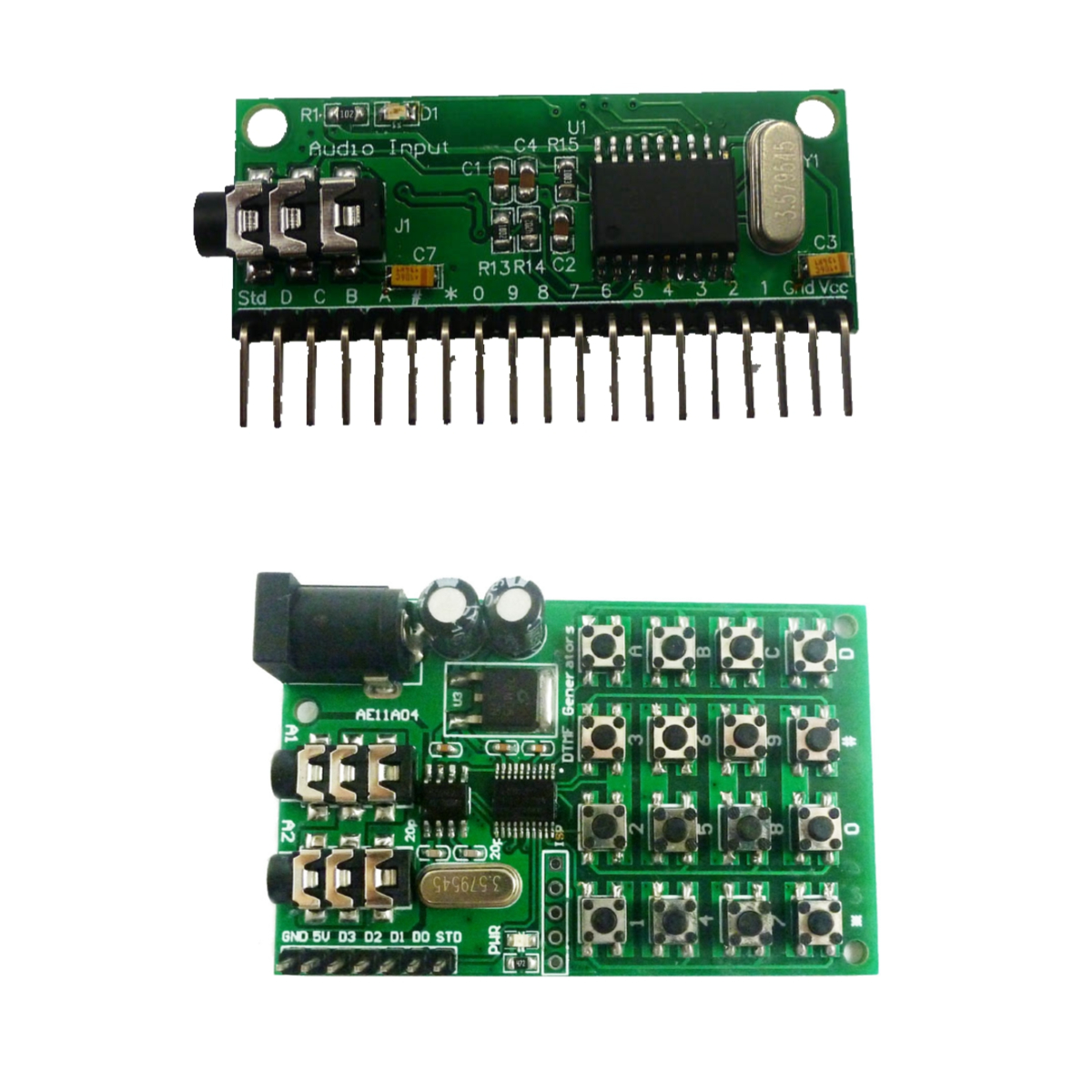

Audio 2: This is a specific audio interface. Support the following products of our company: CE004 CE005 CE023 AD22B04 AD22A08
How to use:
1 Output DTMF tone through Dialing keyboard
2 Output DTMF tone through MCU control
