1 PCS 1-8 Channel DC 12V/24V NPN/PNP PLC Switch IO Signal Amplifier Module
General
Relay Modules is used for PLC output load current amplification and isolation protection,and installed in the digital output terminal of PLC,MCU industrial control board, time relay, buttons and other controllers. It amplifies the output current of the output terminalfor high-power equipment and weak current control, to protect the control system not being damaged.
Features:
1. DIN Rail optional 1/2/4/8 channels relay interface modules
2. 1 NO&NC independent relay module;
3. Buit-in MPA Electromagnetic relay certified with CCC,CE
4. Switching current upto 10A at 250VAC or 30VDC
5. Input connections by screw terminal block.NPN&PNP in common use, AC&DC in common use
6. Relay status indicator LED,surge suppression protection and overvoltage protection are provided for each relay channel
7. DIN Rail mountable for width TS15/28/35
Description:
1.Driving voltage: DC 12V (12V Version),DC 24V (24V Version)
2.The control signal drives the relay directly.control current per Channels: 30MA(12V version) ;15MA(24V version)
3.Control mode: NPN/PNP dual-purpose
4.Connect a 3KV high-voltage ceramic capacitor in parallel at the output end to protect the relay contacts
5 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
The following products of our company can be used to drive this relay module:
N4D3E16 23IOA08 23IOB16 23IOC24 23IOD32 23IOE48
PDMRA01 1 Channel:
Size: 18 * 72 * 19mm(Only PCB Board);
Weight: 18g(Only PCB Board);
PDMRB02 2 Channels:
Size: 37 * 72 * 19mm(Only PCB Board);40 * 82*40mm(with Din Rail Box)
Weight: 35g(Only PCB Board);73g(with Din Rail Box)
PDMRC04 4 Channels:
Size: 71 * 72 * 19mm(Only PCB Board);74 * 82*40mm(with Din Rail Box)
Weight: 69g(Only PCB Board);128g(with Din Rail Box)

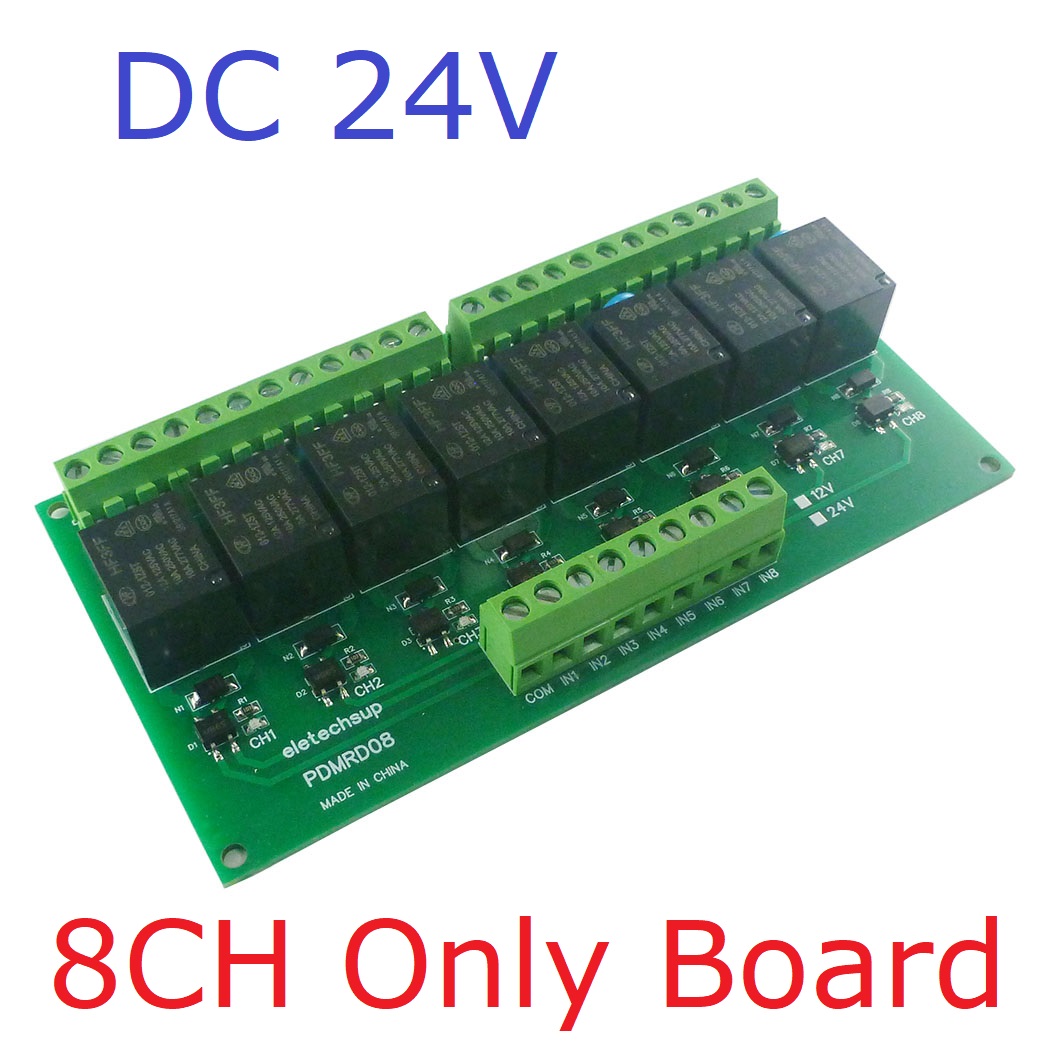

PDMRD08 8 Channels:
Size: 137 * 72 * 19mm(Only PCB Board);140 * 82*40mm(with Din Rail Box)
Weight: 134g(Only PCB Board);232g(with Din Rail Box)
Load current:
Please control the resistive load within 10A
Please control the inductive load within 4A
NOTE: The control signal drives the relay directly.
Drive current: 30MA(12V version) ;15MA(24V version)
Application:
PLC IO signal amplifier
Smart Home,Home Automation ,Wiser Home;
PTZ Camera
Security Monitoring
Identification system;
LED Lamp Drivers
Automatic curtain control
Automated industry
CNC machine tool
