Packing list:
Description :
Working voltage : DC 5-27V(Perfect for 5V 6V 9V 12V 18V 24V LED Driver)
Output Current: 0-350MA;By changing the RCS resistance, the maximum drive current can be changed
Maximum output power: 8W
Current regulation: Through PWM control
Single pin ON/OFF and brightness control using PWM
Simple low parts count
Wide input voltage range: 5V to 30V
Up to 350mA output current
PWM dimming
3% output current accuracy.
Up to 1MHz switching frequency
Typical 3% output current accuracy
Inherent open-circuit LED protection
High efficiency (up to 93%)
Adjustable Constant LED Current
High-Side Current Sense
Hysteretic Control: No Compensation
Soft Over Temperature Protection
Size : 15*15*6mm
Weight : 1.5g
Low voltage halogen replacement LEDs
Automotive lighting
LED back-up lighting
Illuminated signs

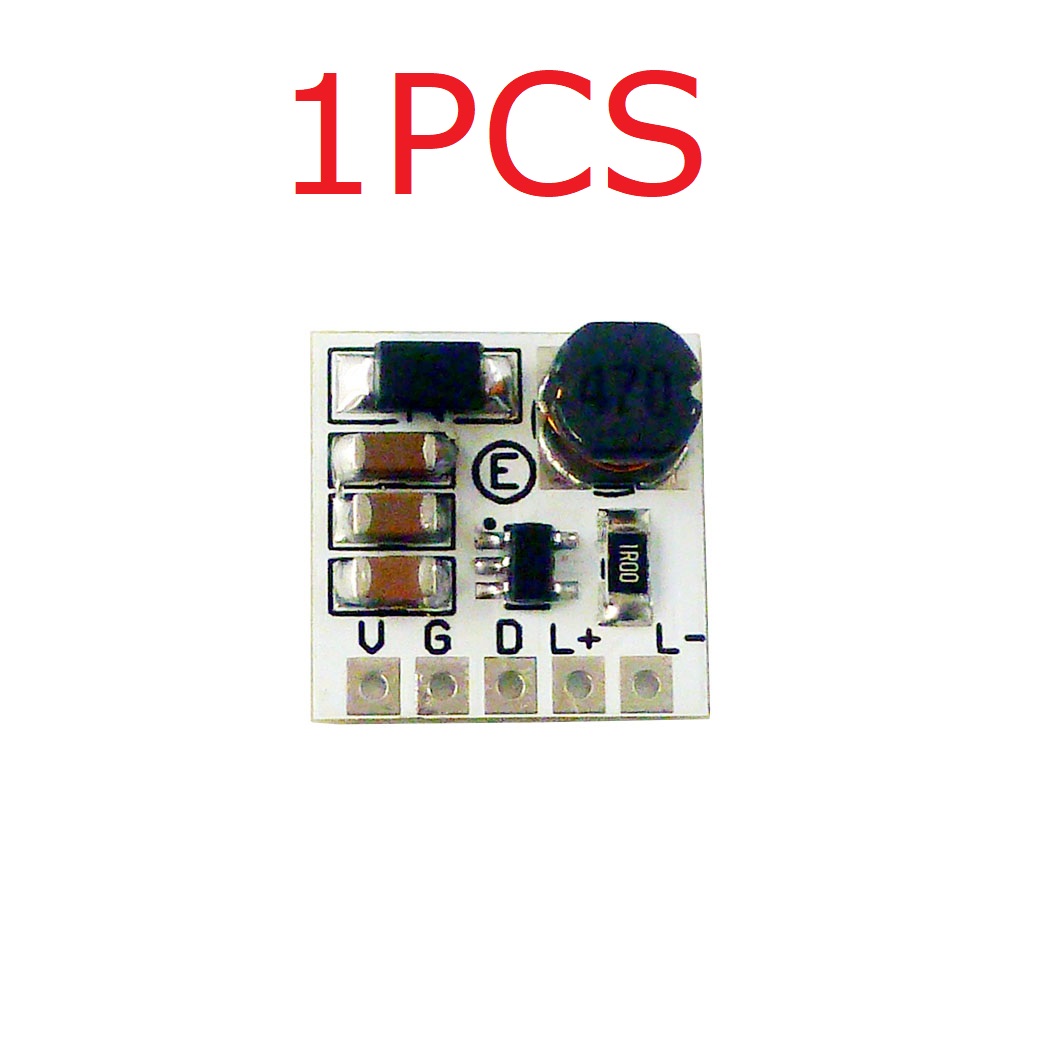

Pin Description:
V(VIN) : Power Supply+
G(GND) : Power Supply-
D(DIM) : Logic level dimming input
L+(LED+): LED+
L-(LED-) : LED-
Wiring Diagram 1 : 350MA LED Constant Current Drive Circuit
Wiring Diagram 2 : 350MA LED Constant Current Drive Circuit(with switch)
Wiring Diagram 3 : 0-350MA LED PWM Dimming Circuit
