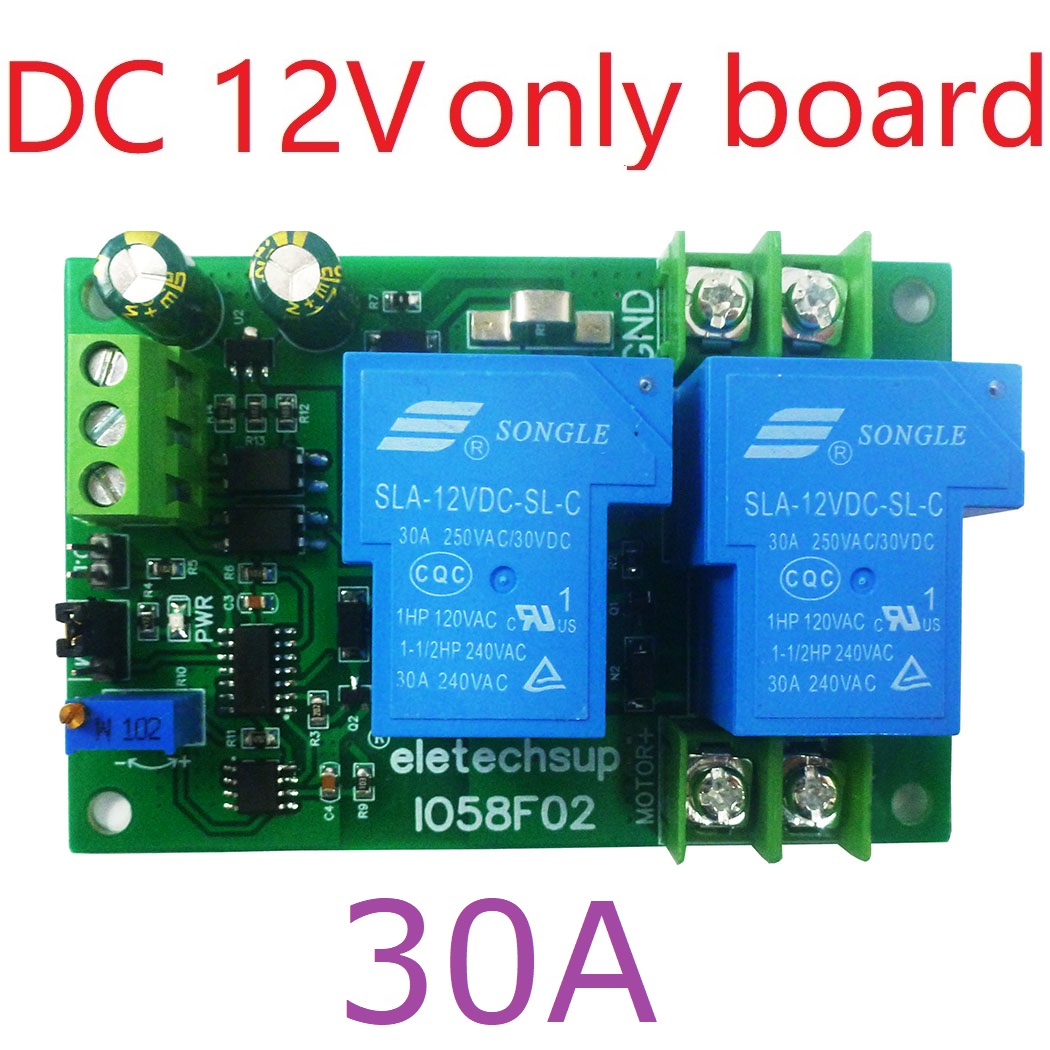

IO58F02 30A DC 12V Power Brushed Motor Overload Overcurrent Short Circuit Protector Module Forward Reverse Controller

IO58F02 30A DC 12V Power Brushed Motor Overload Overcurrent Short Circuit Protector Module Forward Reverse Controller

  • Model: IO58F02_12V_30A
  • Availability: In stock
  • Weight: 0.086Kg
US$13.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name:10A 20A 30A DC 12V 24V Power Brushed Motor Overload Overcurrent Short Circuit Protector Module Forward Reverse Controller



Product Included:
1pcs DC 12V/24V 10A/20A/30A DC Motor Overcurrent Overload protection






Product parameters:

10A Version:

1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC power supply power ≥ motor power x3);
2 Applicable motor: 12V/24V Brushed DC motor;
3 Maximum current: Short-term working current 10A, long-term working current 3A;
4 Protection current adjustment range: 0.2A~10A;
5 Motor control: Forward, Reverse;
6 Working modes: 2 optional modes, Non-locking and self-locking;
7 Working current (excluding motor): 40mA;
8 Size: 97*50*32mm (with shell), 79.5*48.2*19mm (without shell);
9 Weight: 80.3 grams (with shell), 45,5g(without shell).


20A/30A Version:
1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC power supply power ≥ motor power x3);
2 Applicable motor: 12V/24V Brushed DC motor;
3 Maximum current: Short-term working current 20A/30A, long-term working current 10A;
4 Protection current adjustment range: 0.2A~20A/0.2A~30A;
5 Motor control: Forward, Reverse;
6 Working modes: 2 optional modes, Non-locking and self-locking;
7 Working current (excluding motor): 5-70mA;
8 Size: 87*58*25mm;
9 Weight: 80.1 grams


Please contact me for detailed instructions

Pin Description
M- : Motor-
M+:Motor+
VCC:Power Supply+
GND:Power Supply-

COM:Control signal common terminal(GND)
FWD:Forward control
REV:Reverse control
LED :Power supply indicator
O.L : Overload signal output
MODE:Momentary/Self-locking mode selection
ADJ :Overload current regulation


Application

Motor Overload Protection
Motor Overcurrent Protection
Motor Short Circuit Protection
LED Overcurrent Protection
