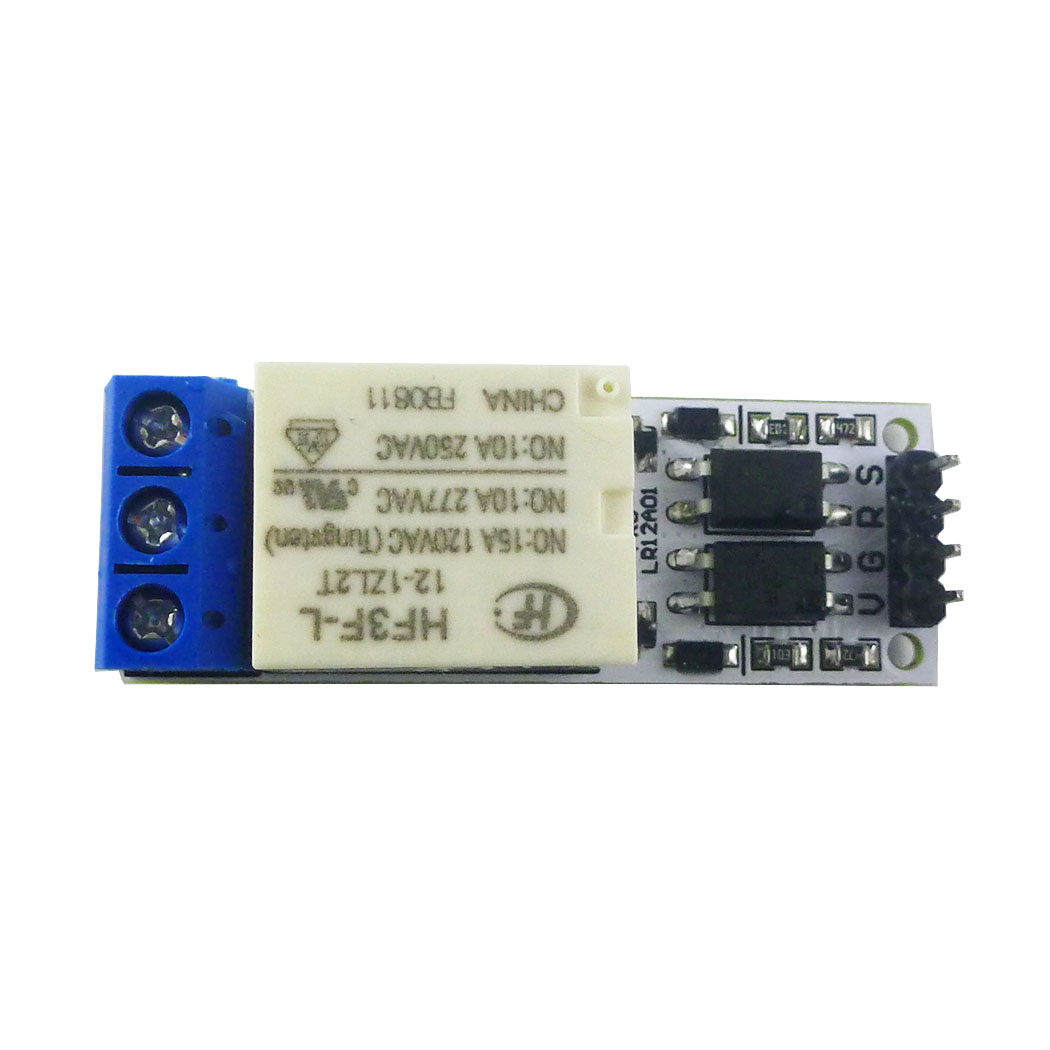

LR12A01 DC 5V Magnetic Latching Relay Module Bistable Self-locking Flip-Flop Latch Switch Board for Arduino ESP32

LR12A01 DC 5V Magnetic Latching Relay Module Bistable Self-locking Flip-Flop Latch Switch Board for Arduino ESP32

  • Model: LR12A01_PRO_5V
  • Availability: In stock
  • Weight: 0.02Kg
US$2.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Description:


Working voltage: 5V Version(DC 3.7-6V);12V Version(DC 10-15V);24V Version(DC 18-25V)
Working current: 90MA/60MA/30MA(Provide current only when switching states)
Standby current: 20-30uA(OR
zero power consumption standby)
Load current : AC 120V/10A, DC 24V/10A
Trigger mode: Low pulse trigger
Size: 48mm * 17mm * 17.5mm
Weight: 13g


Module interface:
1. V: Positive power supply (VCC)
2. G: Negative power supply (GND)
3. R : Reset(CON disconnect NO)
4. S : Set(
CON connect NO)

Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays

3. NC: normally close relay interface

This is a latching(keep) relay module,Trigger S Pin , the relay pull (and holds);Trigger R Pin, the relay releases (and holds)
The trigger duration is 0.1-2 seconds, it is recommended not to exceed 50
seconds.

Typical applications:
Automotive electronics
Lithium battery lead acid battery system
Motor LED PLC Modbus rtu
Camera PTZ CCTV
UPS Uninterruptible power supply
Smart Home/home automation
Emergency lighting
MCU FPGA CPLD development board


Question:
What's a
Magnetic latching relay?

Answer:
Magnetic latching relay is a new type of relay developed in recent years. It is also an automatic switch. Like other electromagnetic relays, it can switch on and off the circuit automatically. The difference is that the normally closed or normally open state of magnetic latching relay completely depends on the action of permanent magnet, and the switching state of magnetic latching relay is triggered by a certain width of pulse electric signal.



If you follow the wiring method of Application 2, you can achieve zero power consumption standby




Note:
The power supply cannot be reversed, otherwise it will burn out the transistor (S8050 J3Y)

But don't worry, replace the S8050 (J3Y) transistor can be used normally.
