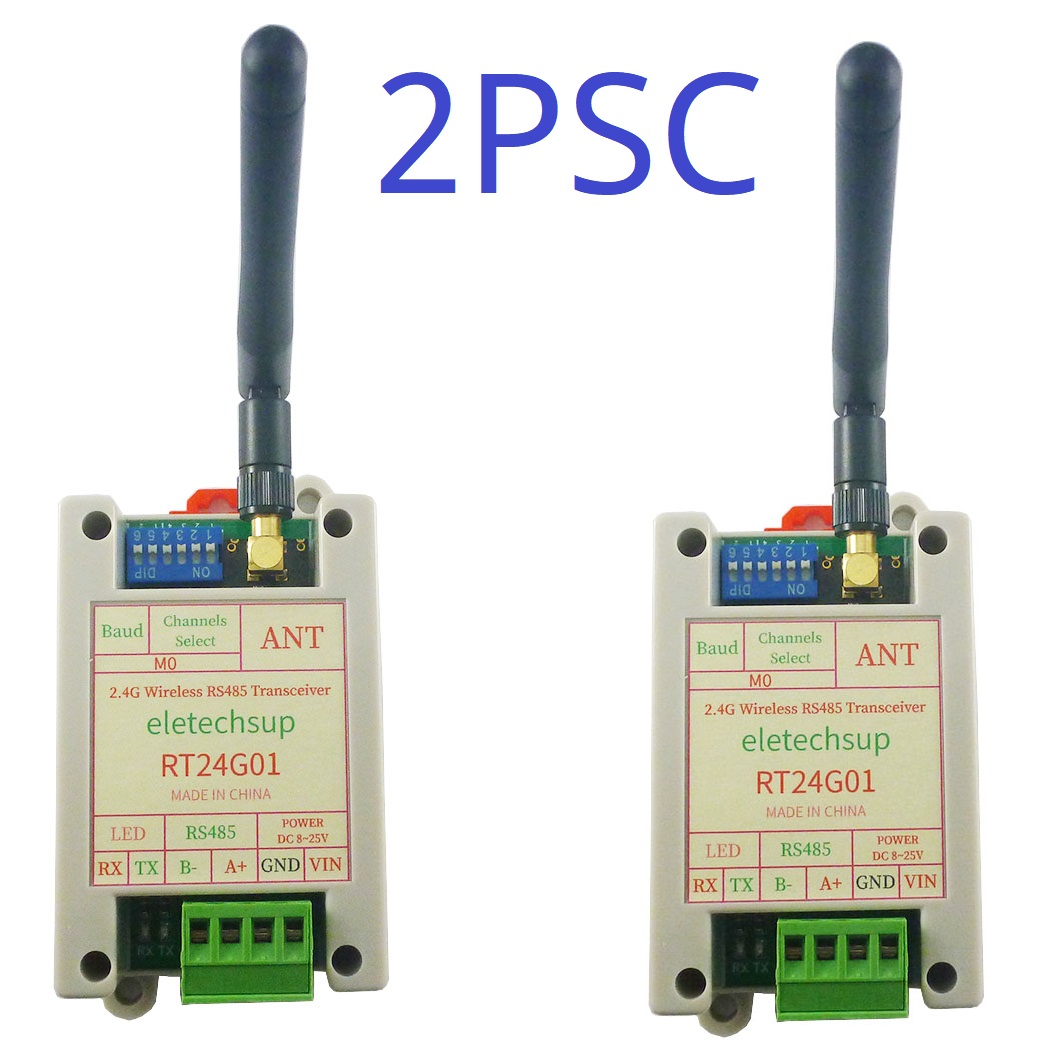

RT24G01 UHF Radio Modem 2Mbps Air Data Rate RS485 Fast Transceiver 2.4G 20DBM Quasi-Full-Duplex UART DTU Module for Smart Meter Scale

RT24G01 UHF Radio Modem 2Mbps Air Data Rate RS485 Fast Transceiver 2.4G 20DBM Quasi-Full-Duplex UART DTU Module for Smart Meter Scale

  • Model: RT24G01*2
  • Availability: In stock
  • Weight: 0.15Kg
US$35.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Features:
1 2M wireless transmission rate, which can transmit data quickly.
2 DIP switches to set parameters, easy to use
3 9V 12V 24V power supply, suitable for industrial control equipment such as PLC HMI
4 16 communication channels to avoid WIFI signal interference

Recommend to buy more than 2pcs!!!
For more information, please contact me


Description:

Supply voltage: DC 9V 12V 24V ;
Working current:20-70MA(DC 12V);
Baud rate:9600/19200/38400/115200 , N, 8, 1;
Wireless operating frequency: 2400MHz~2520MHz, 16 channels, channel spacing 8MHz, default 2400MHz;
Transmit power:20dBm;
Receiving sensitivity: -82dBm.
Air data rates: 2Mbps;
ACK mode: NACK;
FIFO size: 31 bytes;
Wireless transmission distance:300-400m(unobstructed open space)
Communication interface:RS485;
Connection method: one-to-one, repeater, master-slave transmission;
Size: 107 X 54 X 32MM;
Weight: 74g.



Product Overview:


RT24G01 2.4G wireless RS485 transparent transmission module, developed based on the 2.4G frequency band, can convert the data signal received by RS485 into a wireless signal, and can communicate wirelessly with the wireless transparent transmission module at the other end within a certain distance. After the transmission module receives the wireless signal, it converts it into an RS485 signal and outputs it.
The air rate reaches 2M, which can quickly transmit RS485 data.
Users can use multiple wireless transparent transmission modules for data transmission without laying out too many or too long signal transmission lines. The modules only need to be powered on and connected to RS485 devices to achieve mutual data transmission, which greatly facilitates user remote operations. RS485 equipment, and effectively prevent the signal line from being unable to transmit data due to rust, disconnection, poor contact, etc.
The module only needs to set two parameters, and the parameters only need to be set through DIP switches, which simplifies the parameter setting process and greatly facilitates user use. The parameters that can be set are baud rate and channel. For the setting of the DIP switch, please refer to the following selection table.
The wireless operating frequency of the module = channel * 8MHz + 2400MHz.


hint:
1 When used as a master and slave device, no setting is required. One of them serves as the master device and the others are slave devices.
2 Please provide a stable power supply. Low ripple DC 12V/2A or 24V/1A power supply is recommended.
3. Each data transmission does not exceed 31 bytes. Parts exceeding 31 bytes will be transmitted separately. Some devices may not be compatible.
4 Before connecting to your device, please first debug the RT24G01 transceiver module using USB to RS485.


How to use (>=2pcs):

1 2PCS,Module 1 and Module 2 send data to each other.

2 3PCS,Module 1 sends data, module 2 acts as a repeater (multiple repeaters can be used), and module 3 receives data; delay sending and receiving distance.

3 >=3PCS,One as master device, the other as will be as slave device.
the way they work as well as wired RS485 bus. Master device transmit data, Slave devices all receive data.Any slave device transmit data, master device and the other slave devices can receive .When ever only allowed one device (master or slave) to transmit data.

(There is no need to set the master and slave devices. One module serves as the master device and the other modules are slave devices.)
