ZD3605PA Input +-Voltage Out +- 10V Precision Voltage Reference source Board Replace AD584 LM399 LM4040 AD588

ZD3605PA Input +-Voltage Out +- 10V Precision Voltage Reference source Board Replace AD584 LM399 LM4040 AD588

  • Model: ZD3605PA_10V
  • Availability: In stock
  • Weight: 0.003Kg
US$1.59
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Click on the picture or search SKU for product details
We are a professional manufacturer, if you don't find the product you need, please contact us directly.
Product SKU Click Picture Description
Boost-Buck
+ to - voltage		  DD0315NA

  1

Input voltage : DC +3~+15V,
Output : DC -3.3V -5V -6V -9V -12V -15V;
Maximum output current : 180-500MA
Boost-Buck
+ to - voltage		 DDUB12NA 2 Input voltage : DC +4.8V-+28V,
Output : DC -5V/-10V/-12V/-15V;
Maximum output current : 250-500MA
Boost
+ to +/-voltage		 DD1718PA 3 Input voltage : DC +3~+18V,
Output : DC ±5 ±6 ±9 ±12 ±15 ±24
Maximum output current : 100-200MA
Boost-Buck
+ to +/-voltage		  DD39AJPA 4 Input voltage : DC +3.6~+30V,
Output : DC ±3~±30V adjustable
Maximum output current : 200-3000MA
Boost-Buck
+ to +/-voltage		 DD1912PA 5 Input voltage : DC +3~+24V,
Output : DC ±5V/±6V/±9V/±10V/±12V/±15V/±18V±24V
Maximum output current : 100-1000MA
 1% +/-voltage
 reference Module		 ZD3605PA 6 Input voltage : DC +-3.5~+-20V,
Output : DC ±2.5V ±3.3V ±5V ±7.5V ±10V ±12V
Maximum output current : 14MA



Product Name:  Input +-Voltage Out +-2.5V 3.3V 5V 7.5V 10V 12V Precision Voltage Reference source Board Replace AD584 LM399 LM4040 AD588

Packing list:

1 PCS TL431 voltage reference source Module


Description:

TL431 Positive & Negative Dual Output  ±1% Precision voltage reference source Module

±2.5V :
Input Voltage ±3.5-10.1V,Output Voltage ±2.5V
Input Current 2.5-16MA,MAX Output Current 0.6-14MA

±3.3V :
Input Voltage ±4.3-10.9V,Output Voltage ±3.3V
Input Current 2.5-15MA,MAX Output Current 0.6-13MA

± 5V :
Input Voltage ±6-12.6V,Output Voltage ±5V
Input Current 2.1-16MA,MAX Output Current 0.1-13MA

±7.5V :
Input Voltage ±8.5-15.1V,Output Voltage ±7.5V
Input Current 3-16MA,MAX Output Current 1-14MA

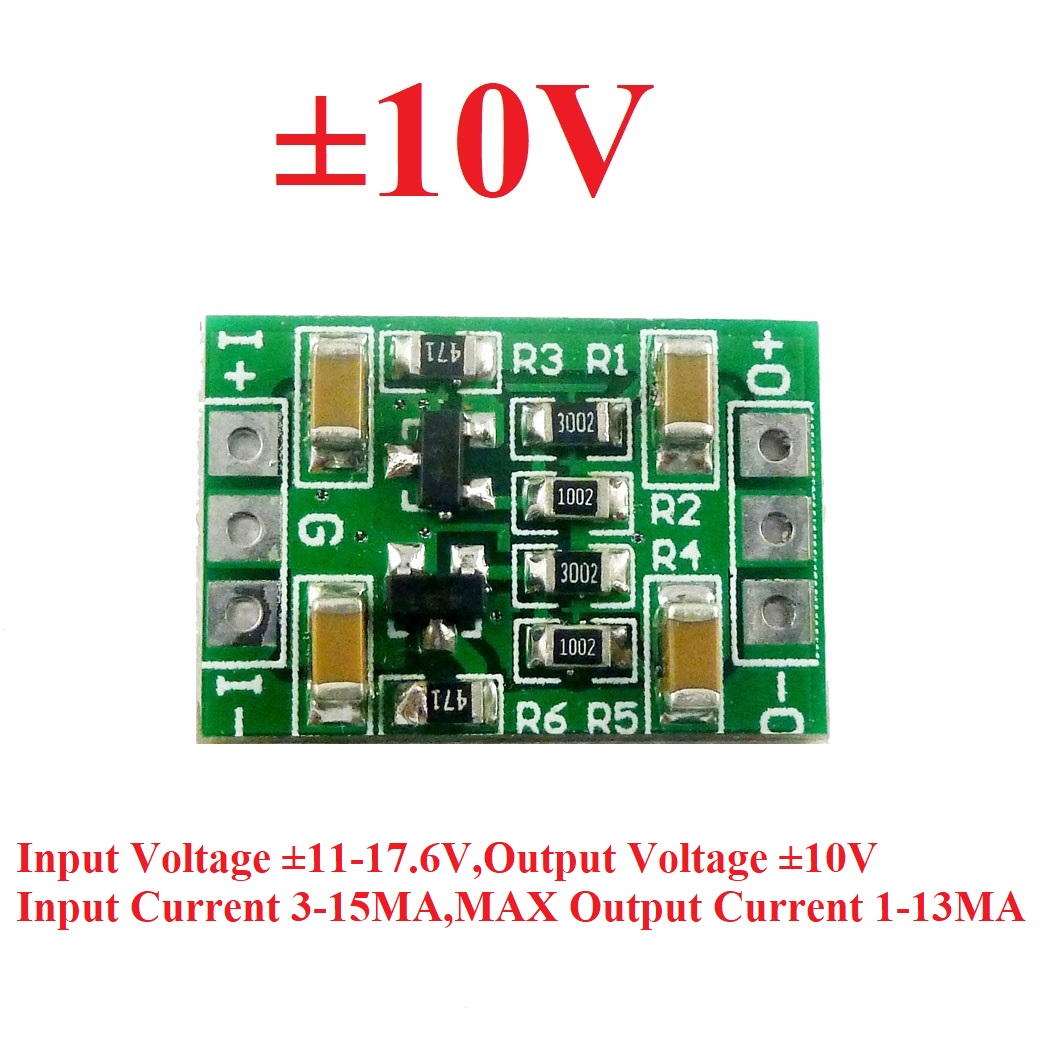

±10V :
Input Voltage ±11-17.6V,Output Voltage ±10V
Input Current 3-15MA,MAX Output Current 1-13MA

±12V :
Input Voltage ±13-19.6V,Output Voltage ±12V
Input Current 3-14MA,MAX Output Current 1-12MA

Accuracy : ±1%
Operating temperature range : -40~+125 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
2.54mm pin pitch,for MCU Development Board Breadboard friendly.
Size : 19*13*2.8mm
Weight : 0.9g

Note:

1 This is a voltage reference source, and its output current is small and cannot be used as a power supply.
2 If the input voltage is too small or the output current is too large, the output will be distorted
3 If the input voltage is too large, the module will heat up


Applications

Operational Amplifier : LM324 LM358 AD101 AD201 Etc.
ADC : ADC0809 MAX160 AD7705 Etc.
DAC :DAC0832 PCF8591 TL5615 MPC4822 TL5610
Replace AD584 LM399  LM4040 MC1403 LM326 AD637 AD584
Audio equipment
RS232 RS485 RS422 Bus
LCD voltage reference
Instrumentation equipment
Wifi/Router/Ethernet devices
