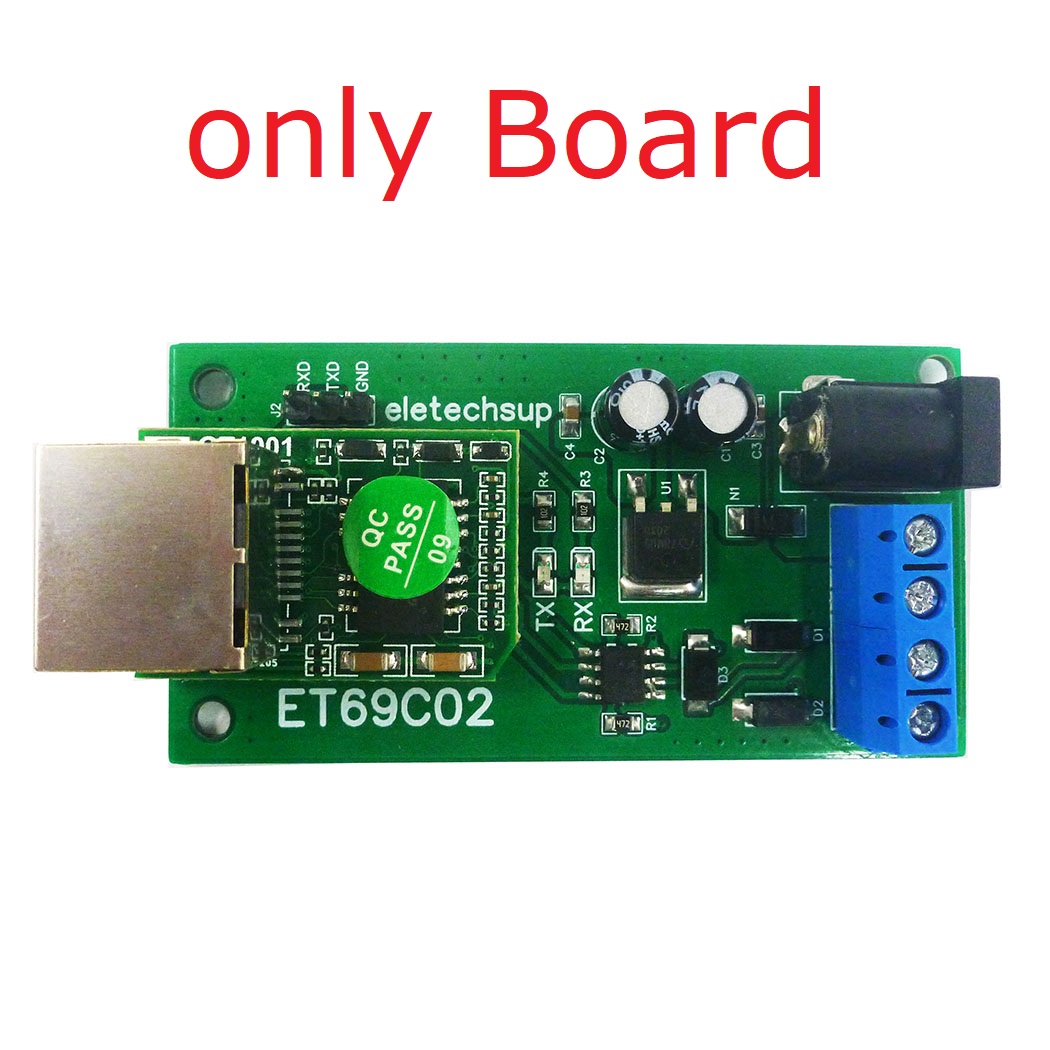

ET69C02 Serial Port Server Module RS485 to Ethernet Network TCP/IP Converter UDP TCP Client Server MQTT PLC

ET69C02 Serial Port Server Module RS485 to Ethernet Network TCP/IP Converter UDP TCP Client Server MQTT PLC

  • Model: ET69C02
  • Availability: In stock
  • Weight: 0.034Kg
US$12.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name:
Serial Port Server Module RS485 to Ethernet Network TCP/IP Converter UDP TCP Client Server MQTT PLC








Package inlcuded:



1PCS ET69C02 DC 12V Ethernet to RS485 Module















Description:











Working voltage : DC 12V (DC 6.5-25V)







Working current : 20-25mA







Work Mode: UDP,TCP Client,TCP Server,Modbus Slave,Modbus Master,MQTT










TVS anti-surge protection










The default baud rate is 9600BPS. The baud rate can be selected by WEB settings


1200 2400 4800 9600 19200 38400 57600 115200BPS










The parity can be none parity, even parity and odd parity







Size: 72 * 37 * 24mm(Only PCB Board);82 * 41*40mm(with Din Rail Box)







Weight: 24g(Only PCB Board);58g(with Din Rail Box)












For more information, please contact me












Application



Ethernet to RS485



Support all RS485 devices of eletechsup, such as:



10IOA08/R4DCB08/R4D3B16/N4D3E16/N4AIA04



Smart Home,Home Automation ,Wiser Home;



Security Monitoring



Identification system;



IP Camera



LED Lamp Drivers



Automatic curtain control












DIN rail Box parameters:
Product model: UM72
Color:



Green






Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 37 mm PCB boards
Net weight: 34g
Installation: DIN35 and C45 rail
