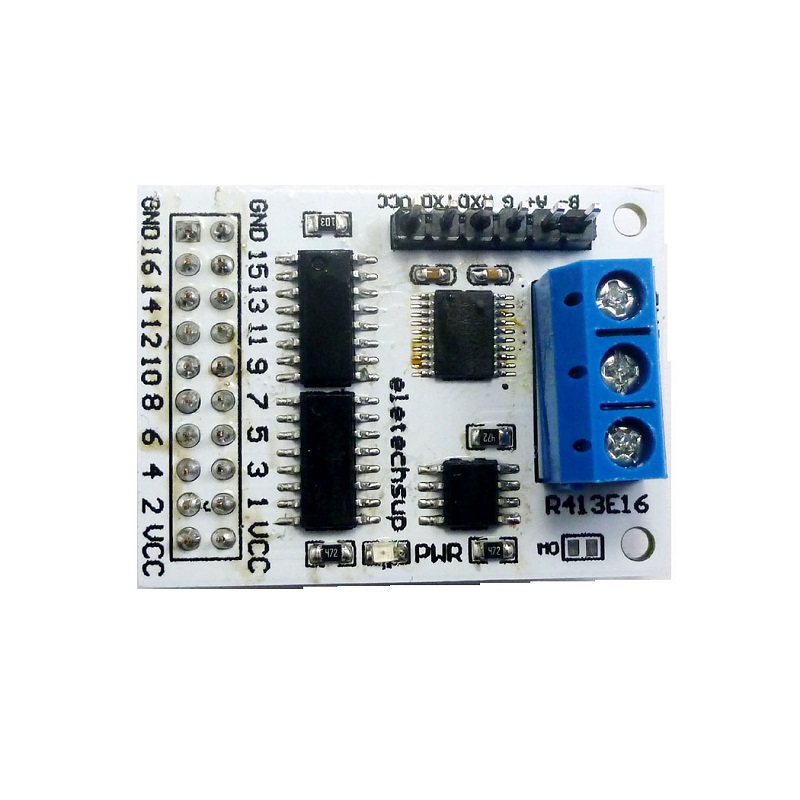

R413E16 Core board RS485 Relay 16ch Multifunction NPN PNP IO Control Core Board Modbus Rtu Module

R413E16 Core board RS485 Relay 16ch Multifunction NPN PNP IO Control Core Board Modbus Rtu Module

  • Model: R413E16_A
  • Availability: In stock
  • Weight: 0.003Kg
US$6.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns




Product Name: 16ch Multifunction RS485 Relay NPN PNP IO Control Core Board Modbus Rtu Module


Package inlcuded:
 1 x 5V 16 Channel Multifunction RS485 Control Board for 5-24V 1-16CH Relay Module

Description:

1: Operating Voltage : DC 5V
2: Operating Current : 11-15MA
3: ''open'' ''close''  ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
4: Two instruction-control mode : AT command and MODBUS command
5: Under the AT command ,the maximum delay is 9999 seconds
  Under the MODBUS command ,the maximum delay is 255 seconds
6 AT commands can be made serial HyperTerminal (serial assistant) Enter;
  MODBUS commands can be made serial HyperTerminal (serial assistant)  OR ''Modbus Poll'' Enter;
7 Automatic recognition of two kinds of commamds,no need to switch..
7 Under the MODBUS command mode, it can support up to 247 devices in parallel
8 With RS485 and RS232 (TTL) dual bus interface
9 Output control pins 16, 5V TTL level, low level (default) / high level output
10 Size: 40 * 30 * 22mm(A version); 40 * 30 * 11.5mm(B version)
11 Weight: 9.2g(A version); 6.2g(B version);

Instruction manual Please ask us after the purchase

Note: The relay board needs to be purchased separately or prepared by yourself

Application

Automated industry PLC
5V 12V 24V 1-16 Channel Relay Module
Smart Home,Home Automation ;
Identification system;
Motor FW & BW;
CCTV Camera PTZ Control;
Security system;
LED dot matrix screen;
RS485 remote control;
diy electronic


MODBUS command  and  AT command  is automatically recognized, no switching required

Output level selection : ( figure above) M0 disconnect is Low level output. M0 Connect is Hight level output
Slave ID: Different ''Sliver ID'' can be set by command, the maximum number is 247
Under the MODBUS command mode,the slave ID must be correct
command Description, Please refer to '' 16 Channel  Multifunction RS485 Module commamd''


Typical applications:

1 AT command mode , in this mode can be through the serial HyperTerminal (serial assistant) enter a simple AT command control relay. AT command mode time up to 9999 seconds



2 MODBUS command mode, you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control


It can control 1-16 channels 5V/6V/9V/12V/24V Relay Module



With RS485 interface and RS232 (TTL) interface(It is recommended to remove the SP485 chip)
Version identification:


 A version for esy insertion into existing relay boards
B version for easy embedding of custom PCB














Product Name: 16ch Multifunction RS485 Relay NPN PNP IO Control Core Board Modbus Rtu Module


Package inlcuded:
 1 x 5V 16 Channel Multifunction RS485 Control Board for 5-24V 1-16CH Relay Module

Description:

1: Operating Voltage : DC 5V
2: Operating Current : 11-15MA
3: ''open'' ''close''  ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
4: Two instruction-control mode : AT command and MODBUS command
5: Under the AT command ,the maximum delay is 9999 seconds
  Under the MODBUS command ,the maximum delay is 255 seconds
6 AT commands can be made serial HyperTerminal (serial assistant) Enter;
  MODBUS commands can be made serial HyperTerminal (serial assistant)  OR ''Modbus Poll'' Enter;
7 Automatic recognition of two kinds of commamds,no need to switch..
7 Under the MODBUS command mode, it can support up to 247 devices in parallel
8 With RS485 and RS232 (TTL) dual bus interface
9 Output control pins 16, 5V TTL level, low level (default) / high level output
10 Size: 40 * 30 * 22mm(A version); 40 * 30 * 11.5mm(B version)
11 Weight: 9.2g(A version); 6.2g(B version);

Instruction manual Please ask us after the purchase

Note: The relay board needs to be purchased separately or prepared by yourself

Application

Automated industry PLC
5V 12V 24V 1-16 Channel Relay Module
Smart Home,Home Automation ;
Identification system;
Motor FW & BW;
CCTV Camera PTZ Control;
Security system;
LED dot matrix screen;
RS485 remote control;
diy electronic


MODBUS command  and  AT command  is automatically recognized, no switching required

Output level selection : ( figure above) M0 disconnect is Low level output. M0 Connect is Hight level output
Slave ID: Different ''Sliver ID'' can be set by command, the maximum number is 247
Under the MODBUS command mode,the slave ID must be correct
command Description, Please refer to '' 16 Channel  Multifunction RS485 Module commamd''


Typical applications:

1 AT command mode , in this mode can be through the serial HyperTerminal (serial assistant) enter a simple AT command control relay. AT command mode time up to 9999 seconds



2 MODBUS command mode, you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control


It can control 1-16 channels 5V/6V/9V/12V/24V Relay Module



With RS485 interface and RS232 (TTL) interface(It is recommended to remove the SP485 chip)
Version identification:


 A version for esy insertion into existing relay boards
B version for easy embedding of custom PCB
