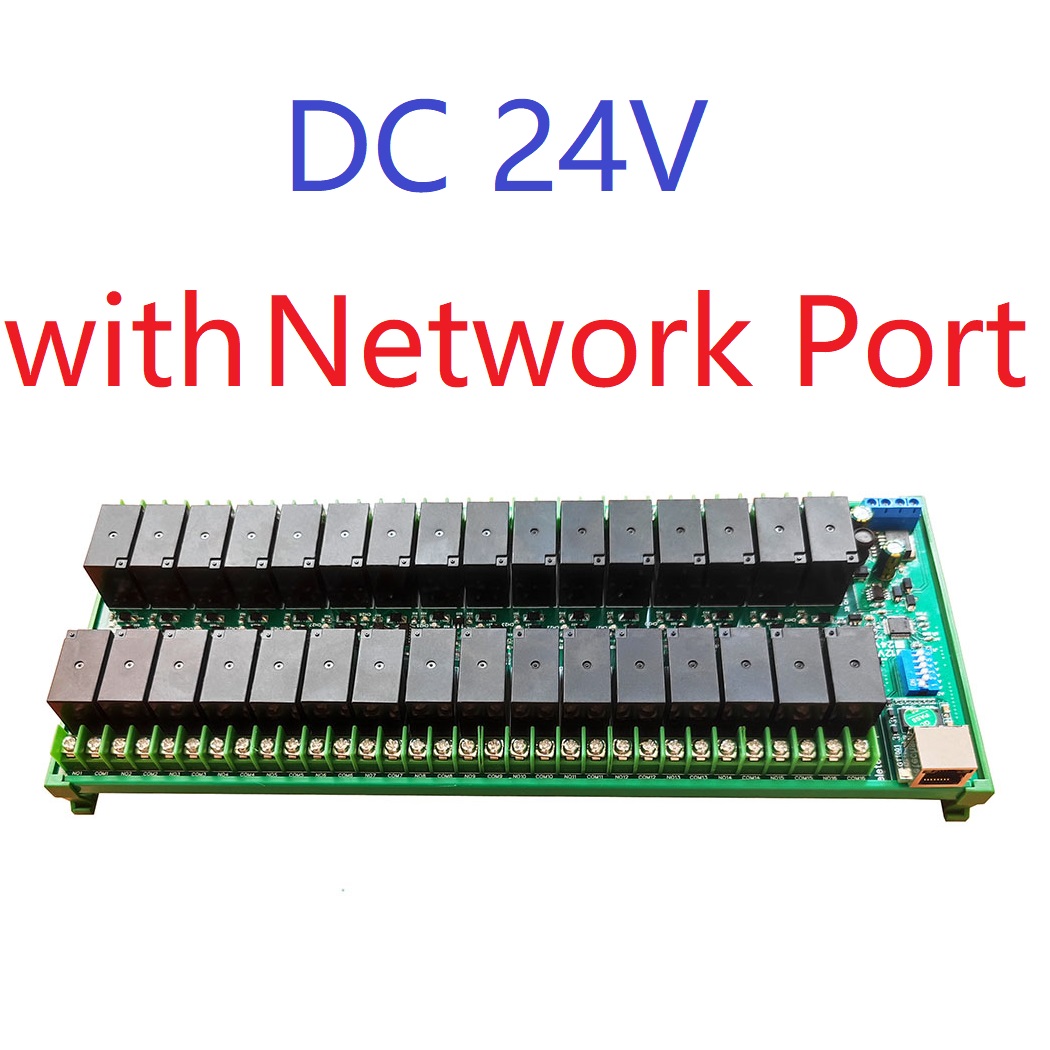

R4D5E32 24V 32Ch DC 24V 20A High Current Ethernet RS485 Relay Module RJ45 Network Port TCP/IP Modbus RTU Board

R4D5E32 24V 32Ch DC 24V 20A High Current Ethernet RS485 Relay Module RJ45 Network Port TCP/IP Modbus RTU Board

  • Model: R4D5E32_NP_R_24V
  • Availability: In stock
  • Weight: 1.1Kg
US$79.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name:32Ch DC 12V 24V 20A High Current Ethernet RS485 Relay Module RJ45 Network Port TCP/IP Modbus RTU Board

Package included:



1 PCS DC 12V/24V 20A 32 Channel RS485 /Network Modbus Rtu Relay Board







Description:

1 DC 12V (12V Version),DC 24V (24V Version)

Standby current (all relays closed) 15MA, 1 relay open 85MA, 2 relays open 156MA,3relays open 227MA,4relays open 299MA,5relays open 369MA,6relays open 439MA,7relays open 510MA,8relays open 582MA.Each relay requires 70MA drive current.

4 Old command (default) :''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay''
6 Commands
4 MODBUS old command (default) supports 03 06 16 function code,
5 MODBUS new command (M0 welding) supports 01 03 05 06 16 function code
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR''Modbus Poll''Enter;
7 Under the MODBUS command mode, it can support up to 64 devices in parallel
8 The default baud rate is 9600BPS. The baud rate can be set by command : 2400 4800 9600 19200 38400 57600 115200BPS
9The checkmethods can be none parity check, even parity check and oddparity check
10 The data sending and returning time can be set,with a maximum value of 1000ms
11 Size: 310 * 122 * 25mm(Only PCB Board);320 * 132*46mm(with Din Rail Box)
12 Weight: 1000g(Only PCB Board);1100(with Din Rail Box)
13 Maximum load: 20A / 250VAC, 20A / 125VAC, 20A / 30VDC, 20A / 28VDC, 20A / 12VDC





For more information, please contact me

Note: The driving power of each relay is 0.9 watts, and all 32 relays ON need a 28.8 watt power adapter


Upgraded Features:


20A high Current Relay
Network port / RS485 port
Network port reset to factory settings
TVS anti-surge protection
MODBUS RTU Old Command 03 06 16
MODBUS RTU New Command 01 05 03 06 16
Support more baud rates, can modify the parity bit





Application
PLC IO expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ Camera
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control
