2.Standby current (all relays closed) 14MA, 1 relay open 40MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 200MA,8 relays open 226MA,and so on
3:2-channels digital input (PNP active high), 1-channel 0-20MA current analog input, 1-channel 0-10V voltage analog input, 20 channels 10A relay switch outputs
4: Support standard Modbus RTU command, function code:
Command 1 (default): write 06/16 read/03;
Command 2 (solder M0 jumper): write 05/06/15/16 read 01/02/03/04
5: With hardware Reset function, with TVS anti-surge protection
6 Under the MODBUS command mode, it can support up to 64 devices in parallel
7 The default baud rate is 9600BPS. The baud rate can be selected by Conmand 2400 4800 9600 19200 38400 57600 115200BPS
8 The parity can be none parity, even parity and odd parity
9 The data sending and returning time can be set,with a maximum value of 1000ms
10 Size: 239 * 72 * 12mm(Only PCB Board);243 * 82*40mm(with Din Rail Box)
11 Weight: 267g(Only PCB Board);272g(with Din Rail Box)
12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
Upgraded Features:
Command 1 supports 03 06 16 MODBUS RTU function code
Command 2 supports 01 02 03 04 05 06 16 function code (M0 short circuit)
Support more baud rates, can modify the parity bit
Hardware reset to factory settings (RESET jumper)
Upgraded relays (more durable)
TVS anti-surge protection
For more information, please contact me

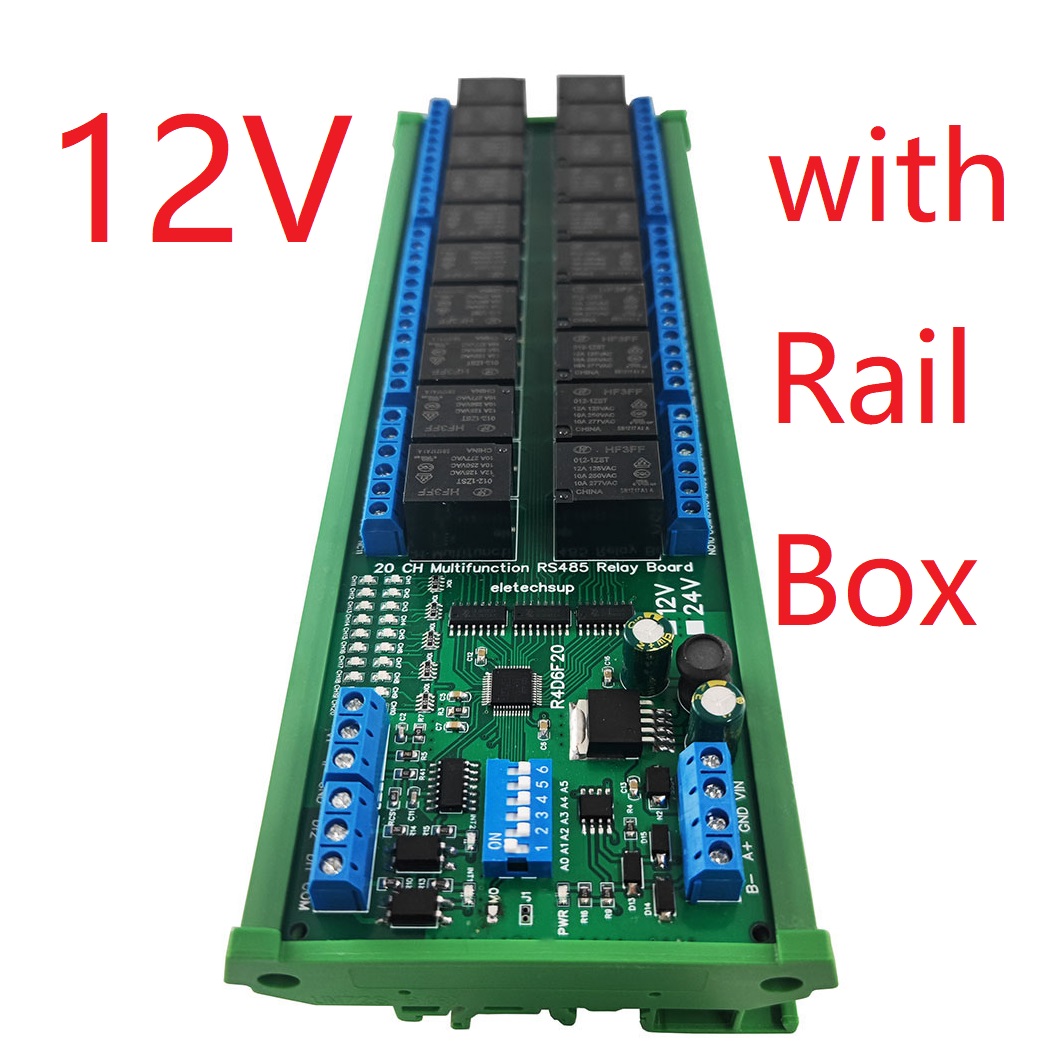

DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 239 mm PCB boards
Net weight: 160g
Installation: DIN35 and C45 rail
Smart Home,Home Automation ,Wiser Home;
PTC Camera
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control
Wiring Diagram:
Ii : 1-Channel 4-20MA Current Input
Vi : 1-Channel 0-10V Voltage Input
Di1/Di2 : 2-Channel PNP Digital Input
Relay: 20-Channels 10A Relay Output
Typical applications:
1 The dial switch (slave address) is invalid and can only control one module at a time.
2.MODBUS command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control
