The global electromagnetic resonance phenomenon is named after physicist Winfried Otto Schumann who predicted it mathematically in 1952. Schumann resonances are the principal background in the part of the electromagnetic spectrum from 3 Hz through 60 Hz, and appear as distinct peaks at extremely low frequencies around 7.83 Hz (fundamental), 14.3, 20.8, 27.3, and 33.8 Hz.

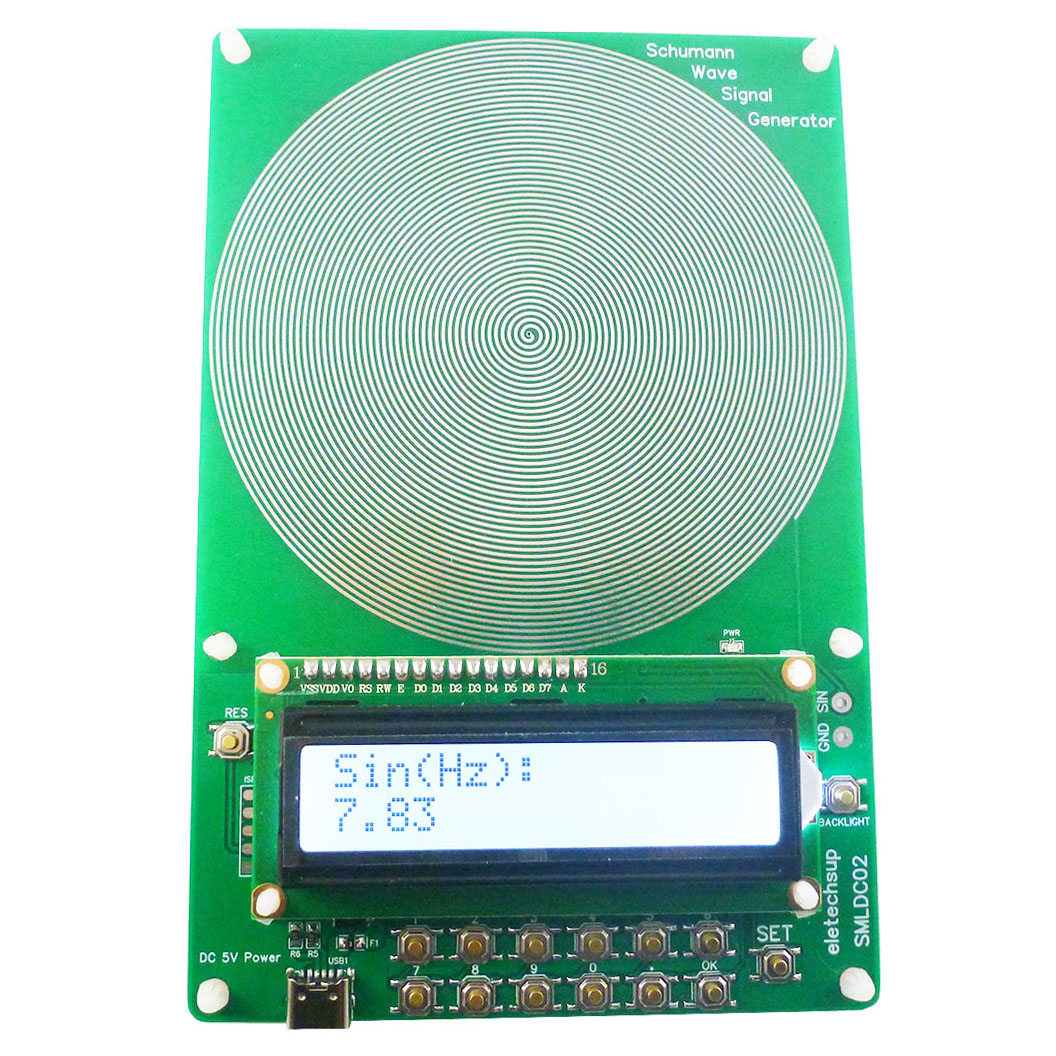

This product can not only output 7.83Hz Schumann wave,
but also can adjust the frequency within the range of 0.01Hz~100KHz,
digital circuit crystal oscillator frequency reference, more stable, stronger anti-interference
1 Working voltage: DC 5V (DC 4-12V)
2 Working current: 8-14MA
3 Power interface: Type-c(Support TYPE-C TO TYPE-C power supply)
4 Default frequency: 7.83Hz
5 Adjustment range: 0.01Hz~100000Hz Pure Sine Wave
6 Signal voltage amplitude: 3V
7 PCB Board Size: 150*100*13MM
8 Weight : 85g
New version features:
Anti-reverse connection protection, overvoltage protection, overcurrent protection
Wide voltage power supply: DC 4-12V
LCD backlight can be turned on/off (short press the BACKLIGHT button)
The parameter power-off saving function can be turned on/off
0.01-100000HZ ultra-long range sine wave output
For more information please Google ''Schumann Resonance''.
For audio-visual space - to enhance the sound field and audio-visual effects
For the bedroom - to help sleep soothe the nerves, treatment of insomnia
For the office - relax and improve work efficiency
For the create space - to improve creative inspiration
For the tea ceremony, spirituality, realization space - resting body and mind
Package include :
1x NEW Version Schumann Resonance Ultra-low Frequency Pulse wave Generator Audio Resonator
(Uses TYPE-C power supply and supports all TYPE-C power supplies.
Since TYPE-C cables are now widely used, no additional TYPE-C power supply cables are provided.)
Q&A:
Q1:How to change the output frequency?
A1:Press the ''0-9'' and '.' buttons to enter the value, and press the OK button to confirm. If the input is wrong, press the SET button to re-enter.
For example, press [7][.][8][3], then press [OK], you can set to 7.83Hz, the default power-on output is 7.83Hz, and the setting range is 0.01~100KHz
Q2:Need to save parameters even after power off?
A2:Please press and hold the ''SET'' button until the LCD displays ''Data Save ON''
Q3: How to verify the output waveform?
A3: Please use an oscilloscope to measure the ''GND/SIN'' port. You can see a pure sine wave.
Q4: How to turn off the LCD backlight?
A4:Short press the ''BACKLIGHT'' button to turn off the LCD backlight; short press the ''BACKLIGHT'' button again to turn on the LCD backlight
Q5:How to turn off the output signal indication (PWR LED)?
A5:Long press the ''BACKLIGHT'' button to turn off the output signal indication; long press the ''BACKLIGHT'' button again to turn on the output signal indication.
Q6:LCD does not display correctly after power on?
A6:Please press the RES button briefly and power on again
