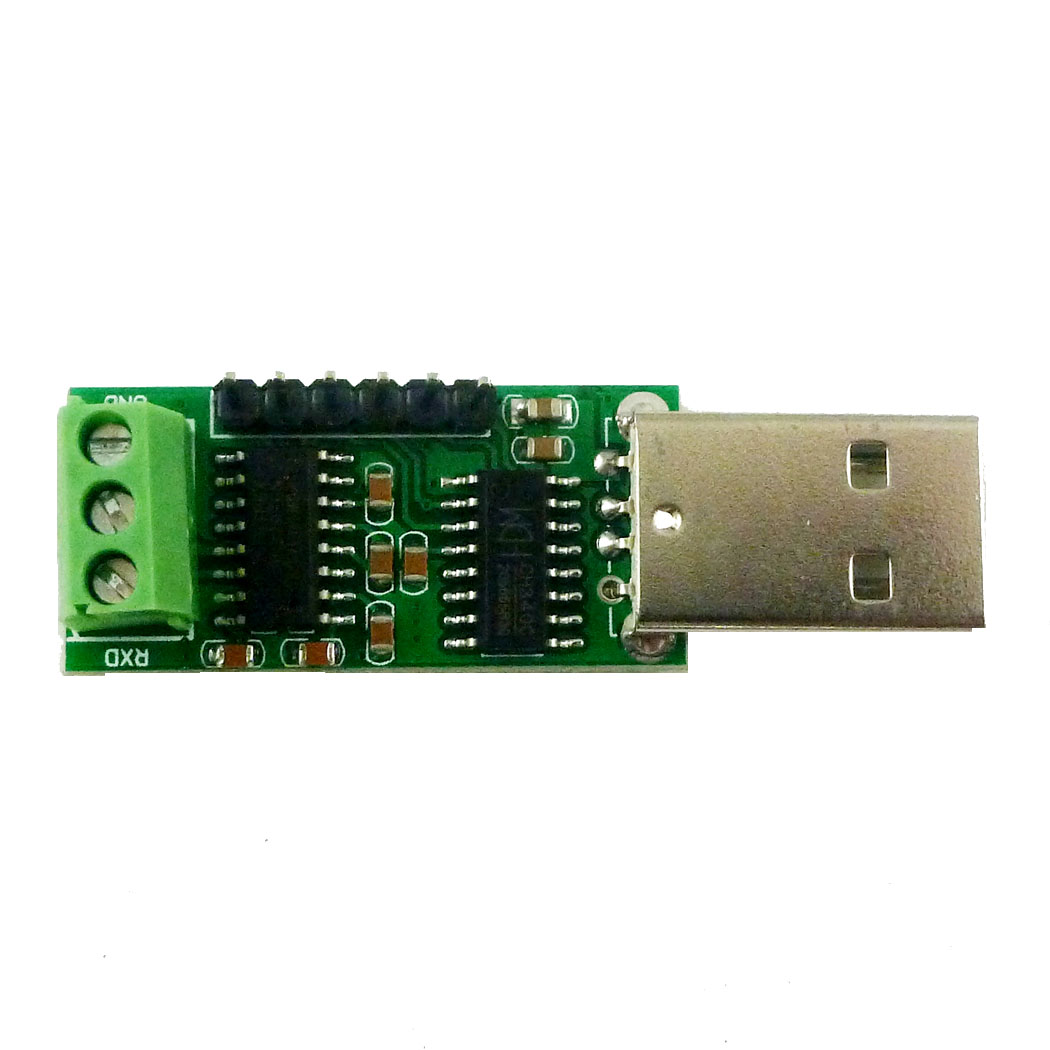

Product Name: 3 In 1 USB To RS232 TTL232 Pro Mini Download Cable Serial Ports CH340 Converter Board Industrial Grade IC SP232
Packing list:
1 PCS Multi-function USB to Serial port Converter
Description:
This is Multi-function converter USB TO RS232 & USB TO TTL232 Converter & PRO mini downloader.
The USB driver IC is CH340, stable performance, fully compatible with USB1.1,USB2.0,USB3.0 , baud rate up to 256 kbps;
The RS232 bus IC is SP232,this is Industrial grade RS232 conversion IC
USB to RS232 serial port, 3 pin pin assignment as below : GND TX RX
USB to TTL serial port, 6 pin assignment as below : GND 5V
RXD
TXD
CTS
DTR
Compatible with PRO MINI download port
Uses : CH340 replace FT232 CP2102 PL2303 for Arduiuo Pro Mini Download
Size : 36 x 14 x 12mm(Does not include USB ports )
Weight : 6g
Supports the following Windows OSes:
Windows 98SE
Windows ME
Windows 2000 SP4
Windows XP SP2 and above (32 & 64 bit)
Windows Server 2003 (32 & 64 bit)
Windows Server 2008 / 2008 R2 (32 & 64 bit)
Windows Vista (32 & 64 bit)
Windows 7 (32 & 64 bit)
Windows 8
Windows 8.1
Windows 10
Application :
RS232 Bus device
TTL232 Communication MCU FPGA/CPLD ARM AVR PIC
Ardunuo PRO mini downloader cable
PLC Modubs device
Camera PTZ
MODEM
Computer communication terminal
