Product Name: 4CH -40~300 Celsius PT100 RTD Temperature Sensor Collector Module RS485 Analog Read Modbus RTU PLC Expanding Board
Package inlcuded:
1 PCS DC 12V 24V 4CH RS485 PT100 Temperature Collector
1 Product description
(1)4-channel PT100 temperature acquisition
(2)RS485 MODBUS RTU standard communication protocol,Netted with configuration software, PLC or industry touch panel
(3)Communication circuit designed for thunder protection and interference immunity
(4)Used for signal collection and control in industrial field
2 Specification
1． Working voltage: DC 7-25V (9V 12V 24V)
2． Working current: 14-18MA
3． Adapted sensor: PT100 3-wire or 2-wire sensor
4． Temperature measurement range: -40℃ to +300℃;
5． Temperature measurement accuracy: 1%.
6． RS485 communication isolation protection 3000VDC
7． Standard MODBUS RTU command (function code, 06/16 Write, 04/03 Read )
8． Baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
9． Parity bits: None (default) /Even /Odd
10． Installation method Standard DIN rail installation
11． Dimensions 125×70×30mm
12． Weight : 114g

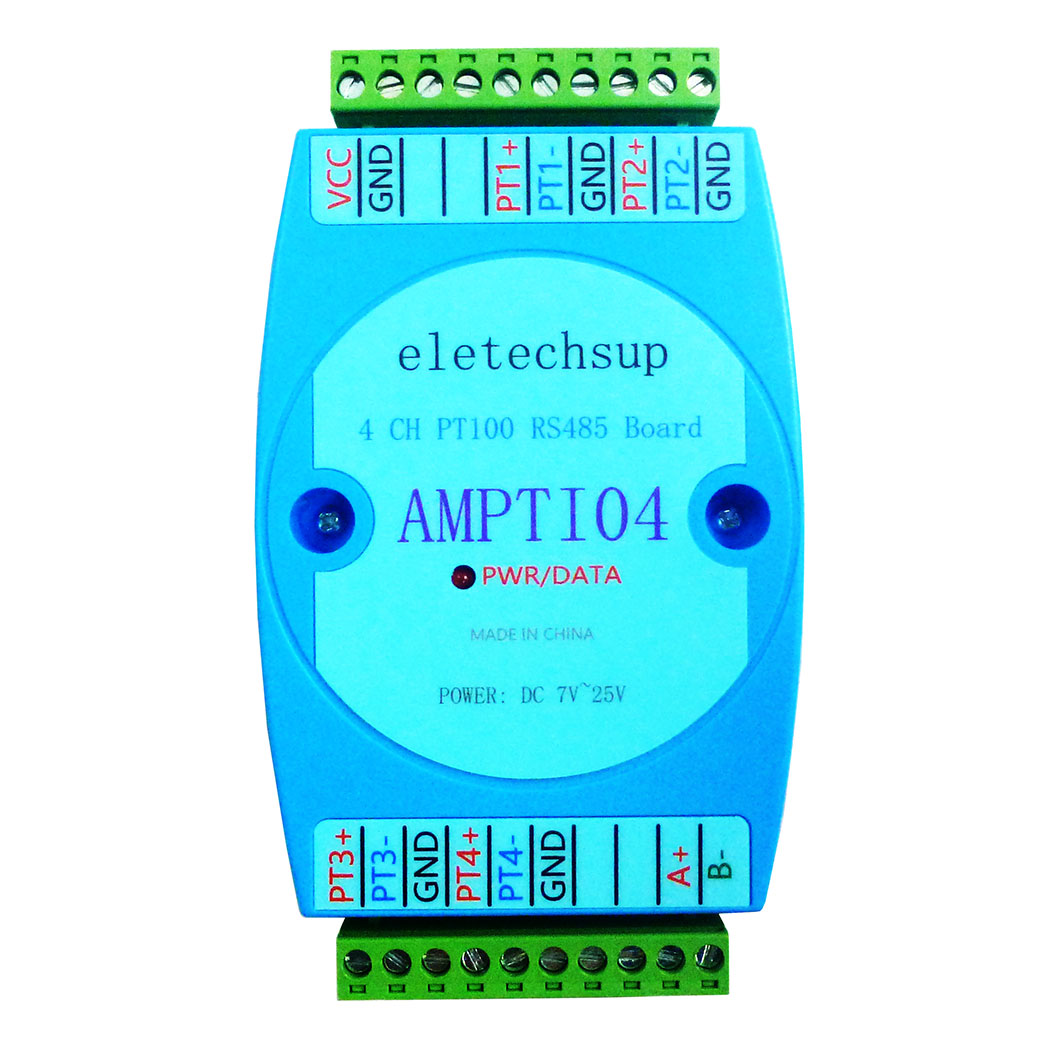

3 Interface definition:
VCC : Power input+
GND: Power input-
PT1+: 1 channel PT100 positive input
PT1-: 1 channel PT100 negative input
PT2+: 2 channel PT100 positive input
PT2-: 2 channel PT100 negative input
PT3+:3 channel PT100 positive input
PT3-: 3 channel PT100 negative input
PT4+: 4 channel PT100 positive input
PT4-: 4 channel PT100 negative input
A+: RS485 signal A+
B-: RS485 signal B-
For more information, please contact me
PT100 sensor specifications(Type A):
Type: PT100
Probe Diameter: 6.5mm
Probe Length: 30mm
Probe Material : Stainless steel
Cable Length: 0.5M
PTFE sheath 3-Wire type
Temperature -200~550°C degree
Nominal accuracy : 0.1%
PT100 sensor specifications(Type B):
Type: PT100
Probe Diameter: 4mm
Probe Length: 30mm
Probe Material : Stainless steel
Cable Length: 0.5M
PTFE sheath 3-Wire type
Temperature -50~200°C degree
Nominal accuracy : 0.3%
Application
PLC Output expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Motor FW & BW
Automatic curtain control
Temperature Controller
RS485 Networking Diagram
