Description :

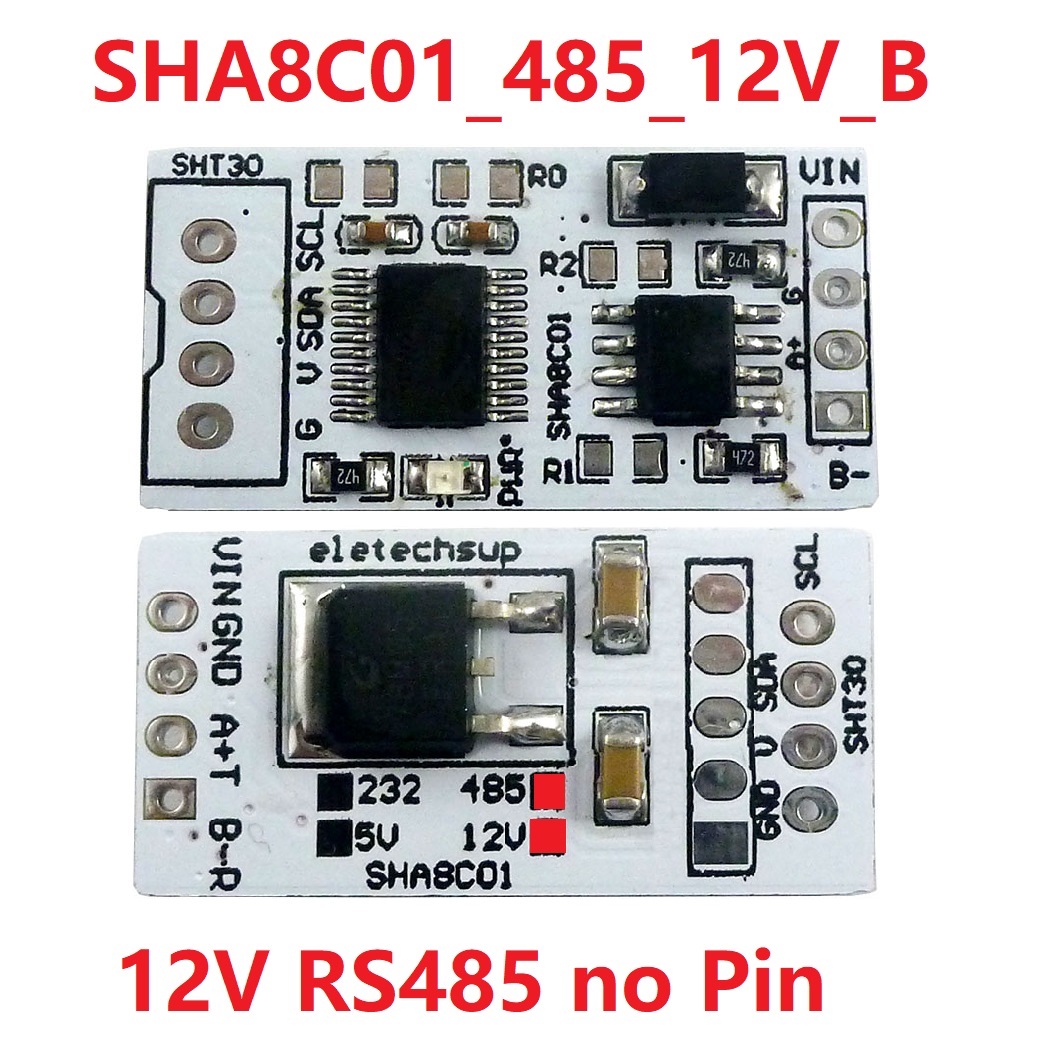

Working voltage: 5V version(DC 3.7-5.5V); 12V version(6-25V)
Working current: 7-13MA
MODBUS RTU protocol, 03 read command, 06 write command.
Serial port baud rate: 9600 (default), N, 8, 1
By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)
Adapted sensor: SHT30 temperature and humidity sensor
Temperature measurement range: -40-125℃ (Because the shell and wire are not resistant to high temperature, please use it in the environment of -40-80℃)
Humidity measurement range: 0-100%RH Accuracy: ±0.2℃; ±2%RH
Size: 30 X 15 X 5.8MM
Weight: 2g
SHT30 sensor specifications:
Product model: TB446 SHT30
Working voltage: 2.5-5.5V DC
Output signal: IIC digital signal
Output interface: XH2.54 4P terminal block
Temperature measurement range: -40-125℃ (Because the shell and wire are not resistant to high temperature, please use it in the environment of -40-80℃)
Humidity measurement range: 0-100%RH
Accuracy: ±0.2℃; ±2%RH
IIC address: 0X44
Wire length: 30 cm
Weight: 15 grams
Shell material: ABS
Industrial Systems
Consumer Products
Thermometers
Thermally Sensitive Systems
Indoor and outdoor temperature measurement
Temperature in vegetable garden
Weather forecasting, and monitoring
Temperature and humidity in Computer Room
Warehouse temperature and humidity
