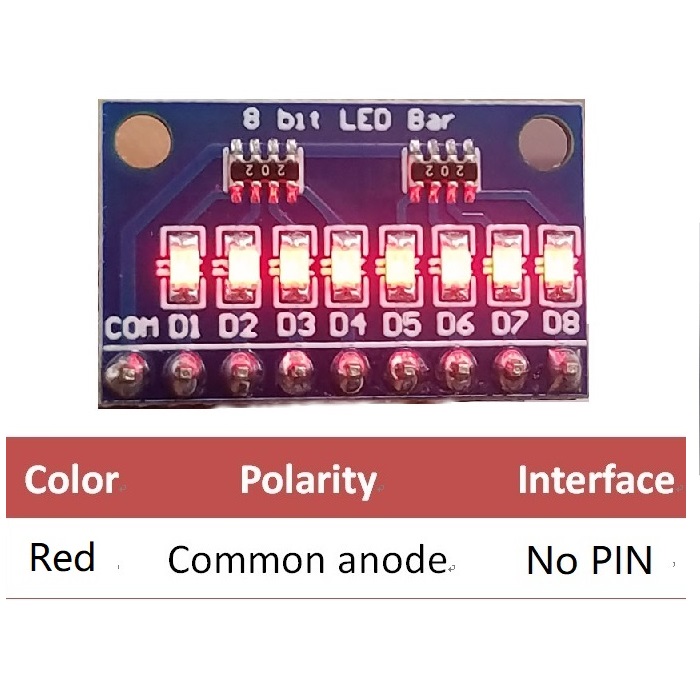

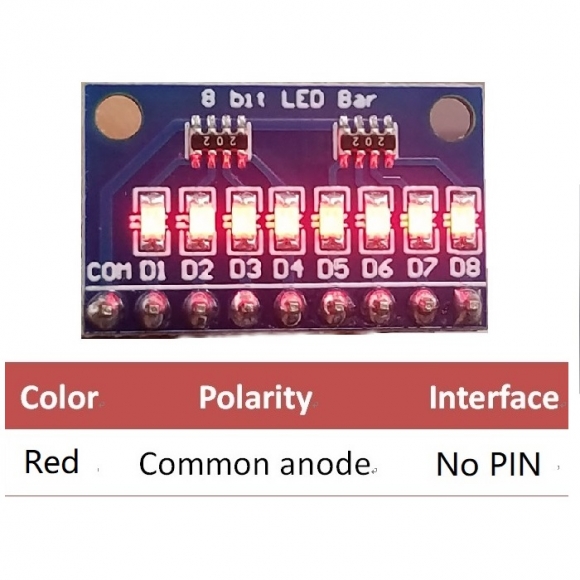

Product Name:3-24V 8 Bit Red LED indicator Bar Module Diy Kit for Arduino NANO MCU pi
Packing list:
Description:
Color : Red
Working Voltage : DC 3-24V
Polarity : Common anode/Common cathode
Interface : 2.54MM with PIN/2.54MM no PIN
Size: 22.86 x 14.13 x 2.11 mm
Weight : 1.3g(with Pin),0.75g(no Pin)
Application :
MCU/ARM/FPGA/Atmega328p
PLC Motor
Electronic diy kit
ESP8266/nodemcu
NANO/UNO/MEGA2560/Breadboard
Raspberry pi 4/robot
Circuit schematics :
Connection with UNO
Arduiuo_8led
This example code is in the public domain.
*/
// give it a name:
int D1 = 9;
int D2 = 8;
int D3 = 7;
int D4 = 6;
int D5 = 5;
int D6 = 4;
int D7 = 3;
int D8 = 2;
// the setup routine runs once when you press reset:
void setup() {
// initialize the digital pin as an output.
pinMode(D1, OUTPUT);
pinMode(D2, OUTPUT);
pinMode(D3, OUTPUT);
pinMode(D4, OUTPUT);
pinMode(D5, OUTPUT);
pinMode(D6, OUTPUT);
pinMode(D7, OUTPUT);
pinMode(D8, OUTPUT);
}
// the loop routine runs over and over again forever:
void loop() {
digitalWrite(D1, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a 200 Millisecond
digitalWrite(D1, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D2, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D2, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D3, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D3, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D4, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D4, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D5, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D5, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D6, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D6, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D7, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D7, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D8, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D8, LOW); // turn the LED off by making the voltage LOW
}
