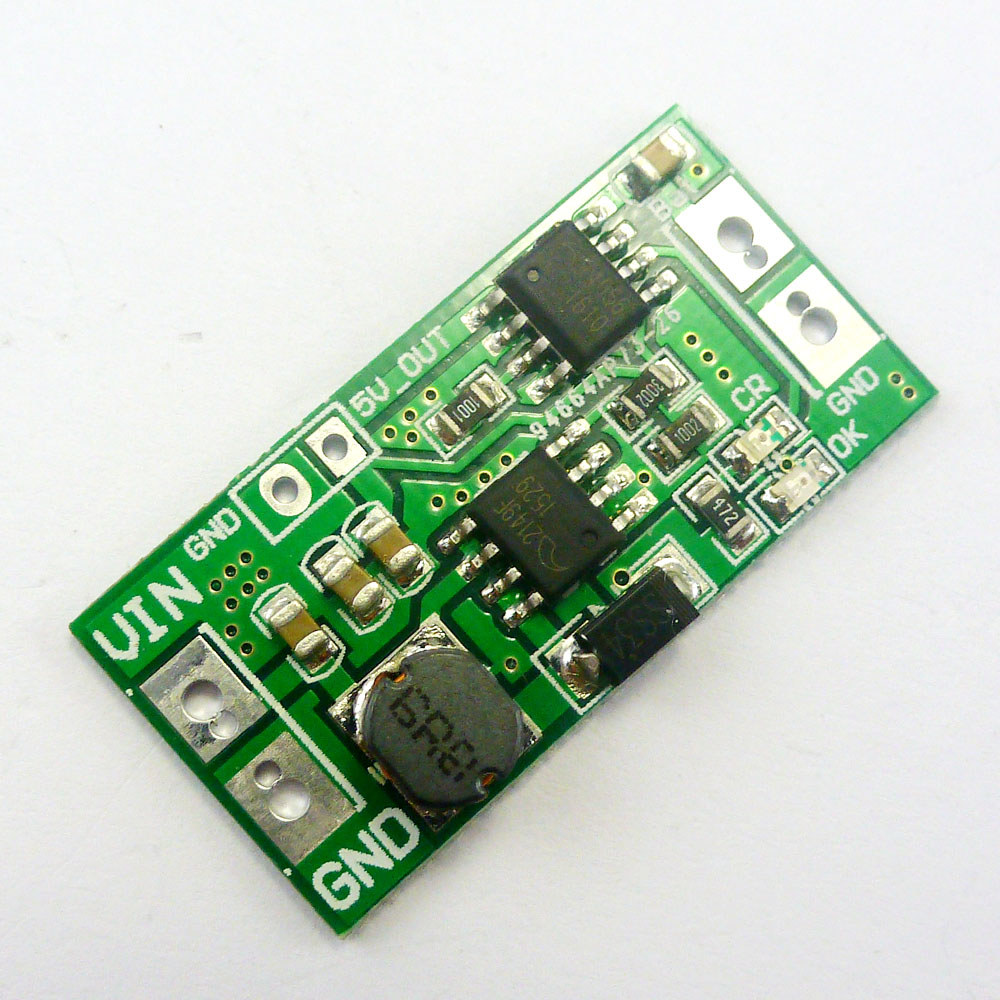

DD05CRTA 2 in 1 Boost Charger Module & DC DC Step Up Converter DC 2.5V 3V 3.3V 3.7V to 4.2V 5V Charging board DD05CRTA

DD05CRTA 2 in 1 Boost Charger Module & DC DC Step Up Converter DC 2.5V 3V 3.3V 3.7V to 4.2V 5V Charging board DD05CRTA

  • Model: DD05CRTA
  • Availability: In stock
  • Weight: 0.003Kg
US$1.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: 2 in 1 Boost Charger Module & DC DC Step Up Converter DC 2.5V 3V 3.3V 3.7V to 4.2V 5V Charging board DD05CRTA



Packing list:

1 PCSDD05CRTA 2 in 1  DC 0.9-5V to 4.2V 5V Boost Charging board




Description:

DC 0.9-5V Boost Lithium Battery Charger Module - Linear charging.

Input voltage 0.9-5V

Output_1 : DC 4.2V/0-1A, as battery Charger
Maximum charging current : 1000MA
Full charge voltage : 4.2V+-2%.
Led indicator : "OK" LED is fully charged OR battery failure status indicator;
                         "CR" LED is charge status indicator

Output_2 :  0.9-5V to 5V Step up module
Start Voltage 0.9V, Output Current 1MA
INPUT 1.2V/0.23A,    OUTPUT_2 5V/0.04A;
INPUT 1.5V/1.24A,    OUTPUT_2 5V/0.25A;
INPUT 1.8V/1.24A,    OUTPUT_2 5V/0.35A;
INPUT 2.5V/1.22A,    OUTPUT_2 5V/0.52A;
INPUT   3V/1.22A,    OUTPUT_2 5V/0.65A;
INPUT   3V/1.5A,     OUTPUT_2 5V/0.75A;
INPUT 3.3V/1.23A,    OUTPUT_2 5V/0.72A;
INPUT 3.3V/1.5A,     OUTPUT_2 5V/0.84A;
INPUT 3.7V/1.2A,     OUTPUT_2 5V/0.8A;

Operating ambient temperature :  -40° to +85°
Storage temperature :  -65° to +125°
Size   : 32x16x5.8mm
Weight : 2.2g

Can be used DC 0.9V-5V power supply charger(Such as Solar panels)Charging module comes with charge-management functions, will not overcharge or over discharge

Comes with rechargeable function,Will enter standby mode when fully charged.When the battery capacity is below 80%, the charging start.



Applications:

Battery powered equipment
Lithium Battery 18650
Mobile phone
Solar charging
MP3/MP4 player
Audio equipment
Portable Devices
Bluetooth Applications
Wifi Applications
