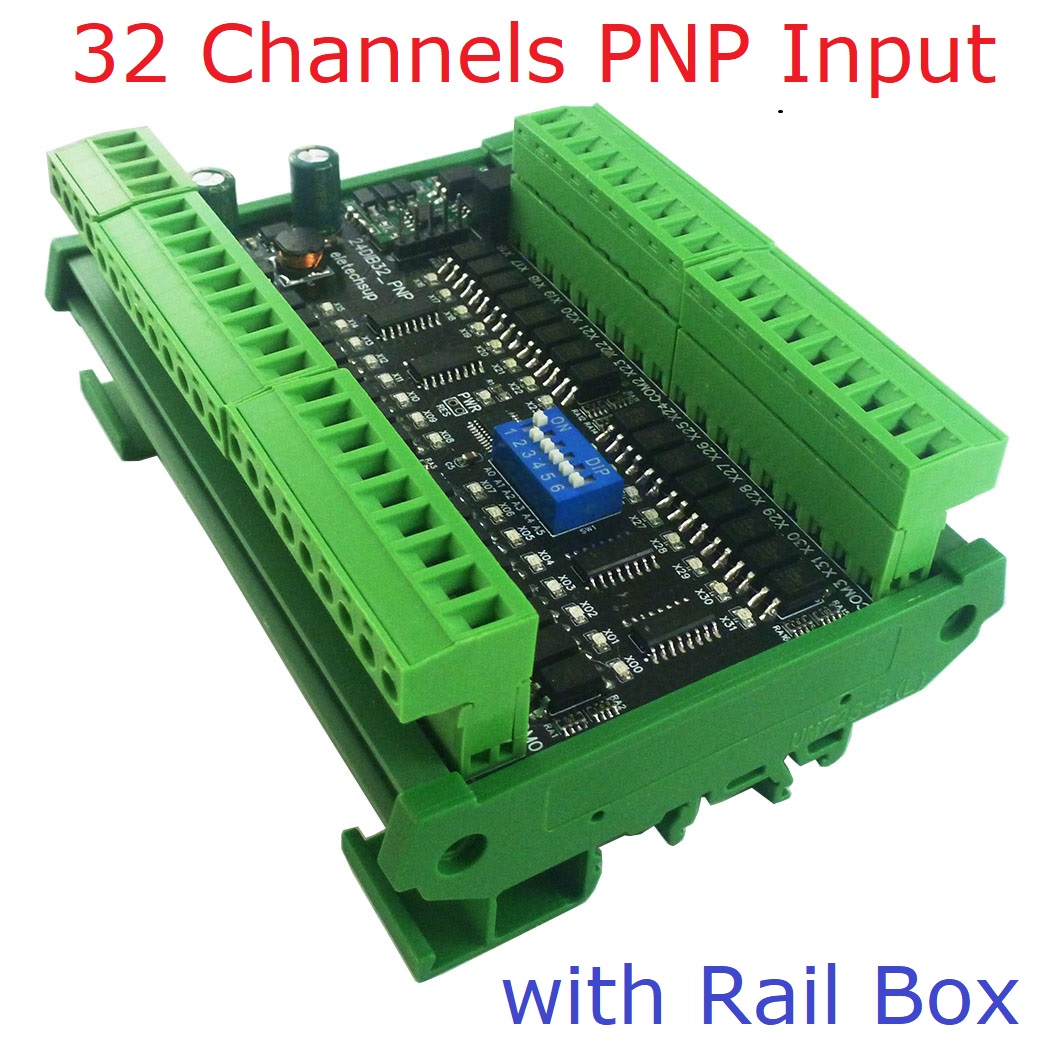

24DIB32 PNP 32CH DI PNP Digital Switch PLC IO Expansion Board 3000VDC Optical isolation Input RS485 Modbus RTU Module

24DIB32 PNP 32CH DI PNP Digital Switch PLC IO Expansion Board 3000VDC Optical isolation Input RS485 Modbus RTU Module

  • Model: 24DIB32_PNP_R
  • Availability: In stock
  • Weight: 0.21Kg
US$31.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name : 16-48 DI NPN/PNP Digital Switch PLC IO Expansion Board 3000VDC Optical isolation Input RS485 Modbus RTU Module

Packing list:
1 pcs DC 6.5-25V 16/32/48CH NPN/PNP Switching Input RS485 Board




Description:

16/32/48CH NPN/PNP Switching Signal Acquisition Board:
Working voltage: DC 6.5-25V (9V 12V 24V)
Working current: 8-20MA
RS485 3000VDC photoelectric isolation communication
Digital input 5000VDC photoelectric isolation input
NPN/PNP Switch/Digital Input level: 3.3V 5V 12V 24V
MODBUS RTU Function Code : 02 03 06 16
Baud rates: 1200-115200,Parity: None /Even /Odd

16 CH(NPN)
Size: 70*88*47(with Case), 68*72*25(Only Board)
Weight: 130 grams(with Case), 68 grams (Only Board)

32 CH
(NPN/PNP)
Size: 122*88*47(with Case), 120*72*25(Only Board)
Weight: 205 grams(with Case), 114 grams (Only Board)

48 CH
(NPN)
Size: 169*88*47(with Case), 167*72*25(Only Board)
Weight: 278 grams(with Case), 159 grams (Only Board)


Instruction manual Please ask us after the purchase

Application:
Automated industry PLC
PLC IO expansion board

RS485 Digital IO
Smart Home,Home Automation ;
Identification system;
CCTV Camera PTZ Control;
Security system;
RS485 remote control;
