Product Name:Dedicated 3.2V LiFePO4 Battery Charger Module 3.6V 1A CV CC with Overvoltage Protection Automatic Recharge Low-Power

Packing list:

1 PCS1A 3.2V Single Cell LiFePO4 Battery Dedicated charging module




Description:

Complete Charge Management for Single Cell LiFePO4 Battery

Power supply voltage DC 3.8-6V,Charging output voltage DC 3.6V;

The maximum charge current / output current is 1A, but you can change the current by changing the value of the R1 resistor.

Precharge Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge

Constant-Current/Constant-Voltage/Constant-Temperature Operation with Thermal Regulation to Maximize Charge Rate Without Risk of Overheating

Automatic Low-Power Sleep Mode When Input Supply Voltage is Removed

C/10 Charge Termination

Automatic Recharge

Battery Temperature Sensing

Battery Overvoltage Protection

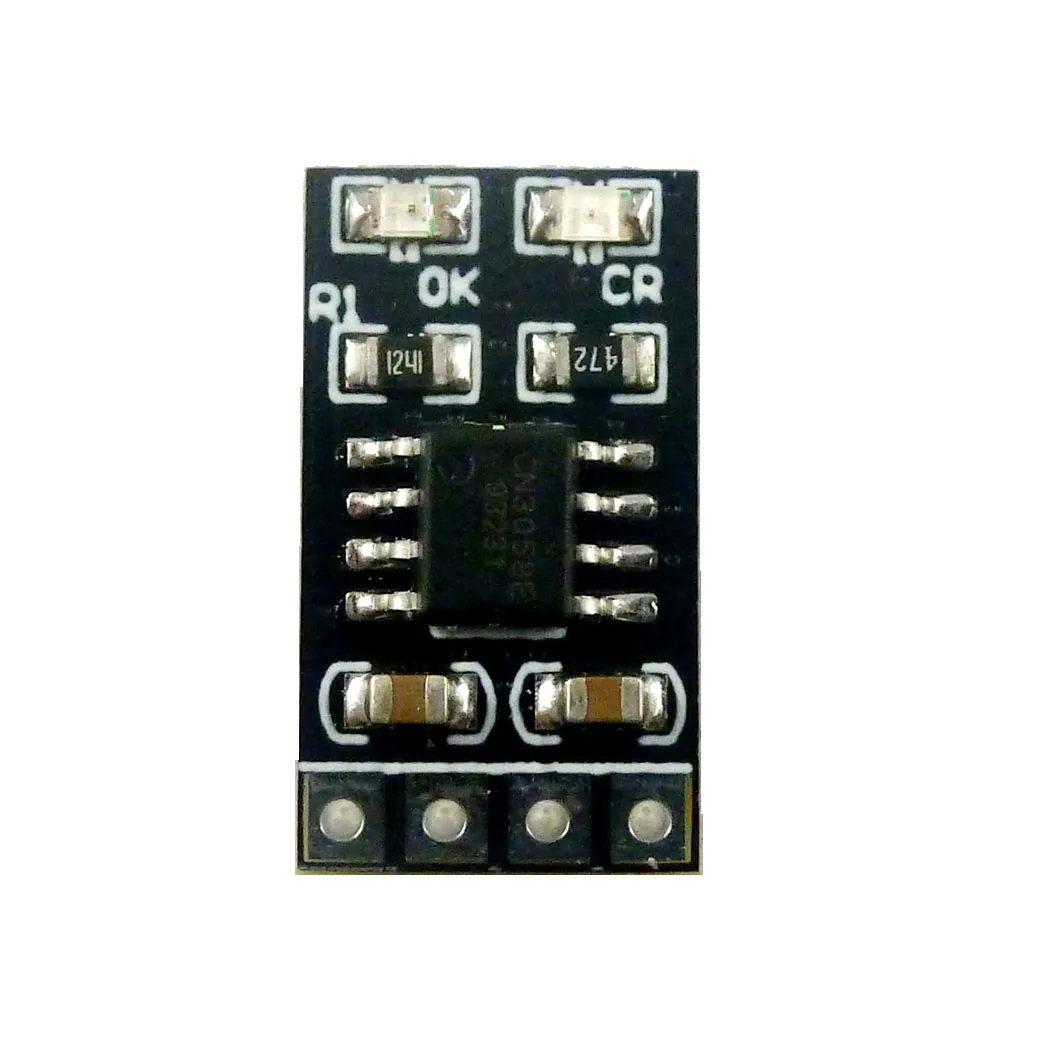

Led indicator : ''CR'' LED is charge status indicator
''OK'' LED is fully charged OR Constant voltage mode;

Operating Ambient Temperature-40℃ to +85℃

Size 18mm x 10.16mm x 2.7mm
Weight : 0.9g(With Pin),0.6g(No Pin)

If you need a chip brochure please contact me


Applications:

Car battery charging
Children's toy car, toy airplane
Solar battery charging
Mobile Loadspeaker
Electric Bicycle Charger
UPS Uninterruptible power supply
Portable Industrial and Medical Equipment
Standalone Battery Chargers
Hand-held Equipment
Battery-Backup Systems
Portable Industrial and Medical Equipment
Miner's lamp
LiFePO4 battery applications





The charging current can be changed by changing the value of resistor R1
0805 1% SMD resistor is recommended
