Packing list:
(Please choose the parameters you need when purchasing)
1-Cell(1S) 1.5V Version:
Input voltage : DC 3.5V-6V(Recommend DC 3.7V/3.8V/4.5V/5V)
Charging voltage : 1.5V
Charging current : 1A
2-Cell(2S) 3V Version:
Input voltage : DC 3.7-6V(Recommend DC 3.7V/3.8V/4.5V/5V)
Charging voltage : 3V
Charging current : 1A

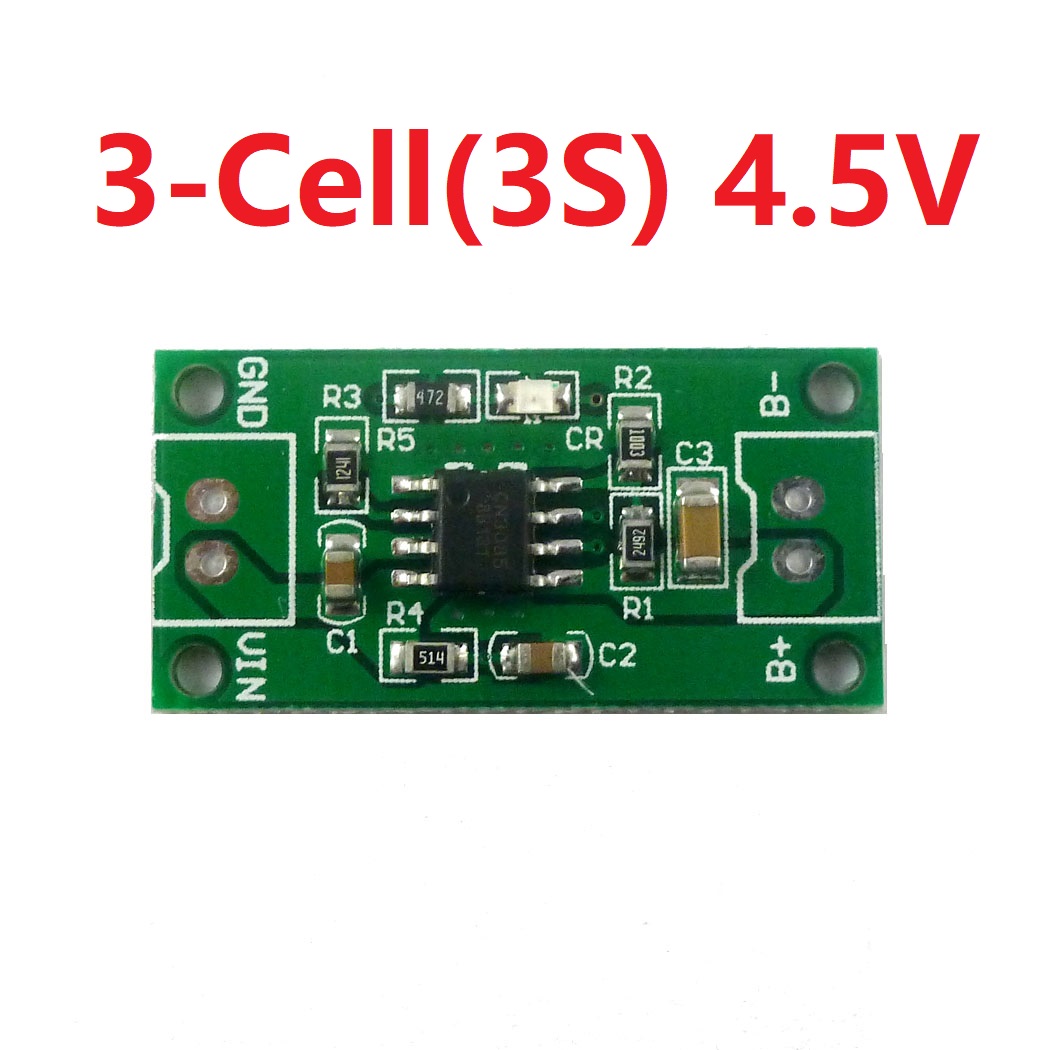

3-Cell(3S) 4.5V Version:
Input voltage : DC 5-6V(Recommend DC 5V)
Charging voltage : 4.5V
Charging current : 1A
Precharge Conditioning for reviving deeply discharged cells and minimizing heat dissipation during initial stage of charge?
Constant-Current/Constant-Temperature operation with thermal regulation to maximize charge rate without risk of overheating
Automatic Low-Power Sleep Mode when input supply voltage is removed
Maintenance Charge Mode(Timer Termination)
Automatic Recharge
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°
Size 30mm x 15mm x 2.7mm
Weight : 1.8g(With Terminal),1.4g(No Terminal)
Applications:
kids toys car
Digital Cameras
Solar charging
Bluetooth Applications
Audio equipment
Digital Camera
Electronic Dictionary
Portable Devices
Nickel Metal Hydride Battery Charger
Led indicator :
Bright: Charging; Off: full; If you want to increase the brightness of the LED, change the resistor R5.
The charging current can be changed by changing the value of resistor R3
0805 1% SMD resistor is recommended
The charging Voltage can be changed by changing the value of resistor R1
Vch = 1.205*(1+R1/100K)
The charging voltage can be changed by changing the value of the resistor R1. The following batteries can be charged:
