Product Name:DC 6V 9V 12V 24V 4CH Flip-Flop Latch Relay Board Bistable Self-locking Electronic Switch Module
Packing list:

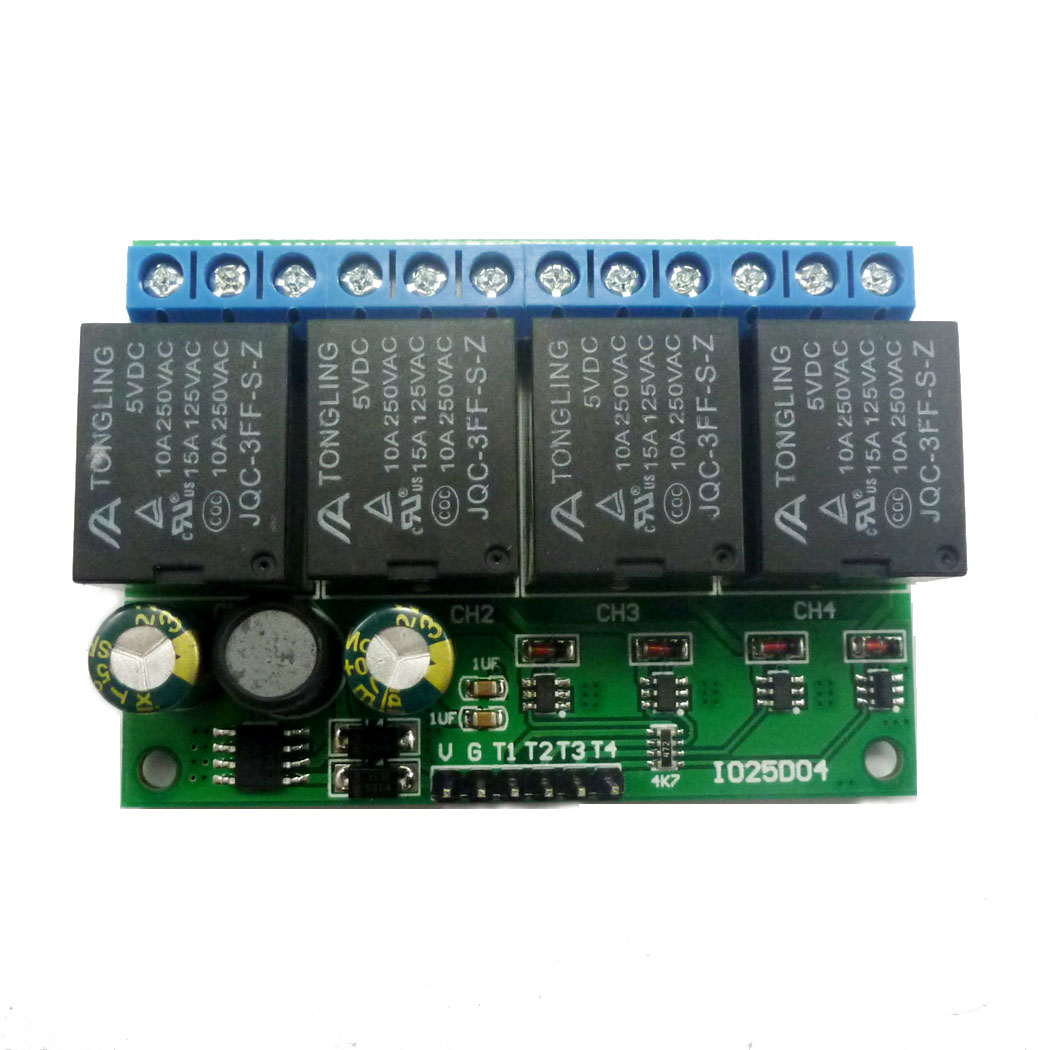

1 pcs 4 Channel DC 6-24V Self-locking Relay Module
Description:
Working voltage: DC 6-24V
Working current: 1 relay 37MA;2 relay 73 MA; 3 relay 1 10MA; 4 relay 146 MA
Standby current: 2mA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 65mm * 47mm * 19mm (L * W * H), Small size
Weight: 57 g
This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
Module interface:
1. V: positive power supply (VCC)
2. G: negative power supply (GND)
3. T1 : Trigger port 1
4. T2 : Trigger port 2
5. T3 : Trigger port 3
6. T4 : Trigger port 4
Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface
USE 1:
By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.
USE 2:
By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the third low-pulse, the relay pull, and so on.
Typical applications:
Automotive electronics
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car
PLC
