Product Name: High-Voltage EBike DC-DC Converter Buck Step-Down Regulator Module 80V 72V 64V 60V 48V 36V 24V to 15V 12V 9V 6V 5V 3.3V
Packing list:
1 PCS High-Voltage DC-DC Converter Buck Step-Down Regulator Module 80V 72V 64V 60V 48V 36V 24V to 15V 12V 9V 6V 5V 3.3V

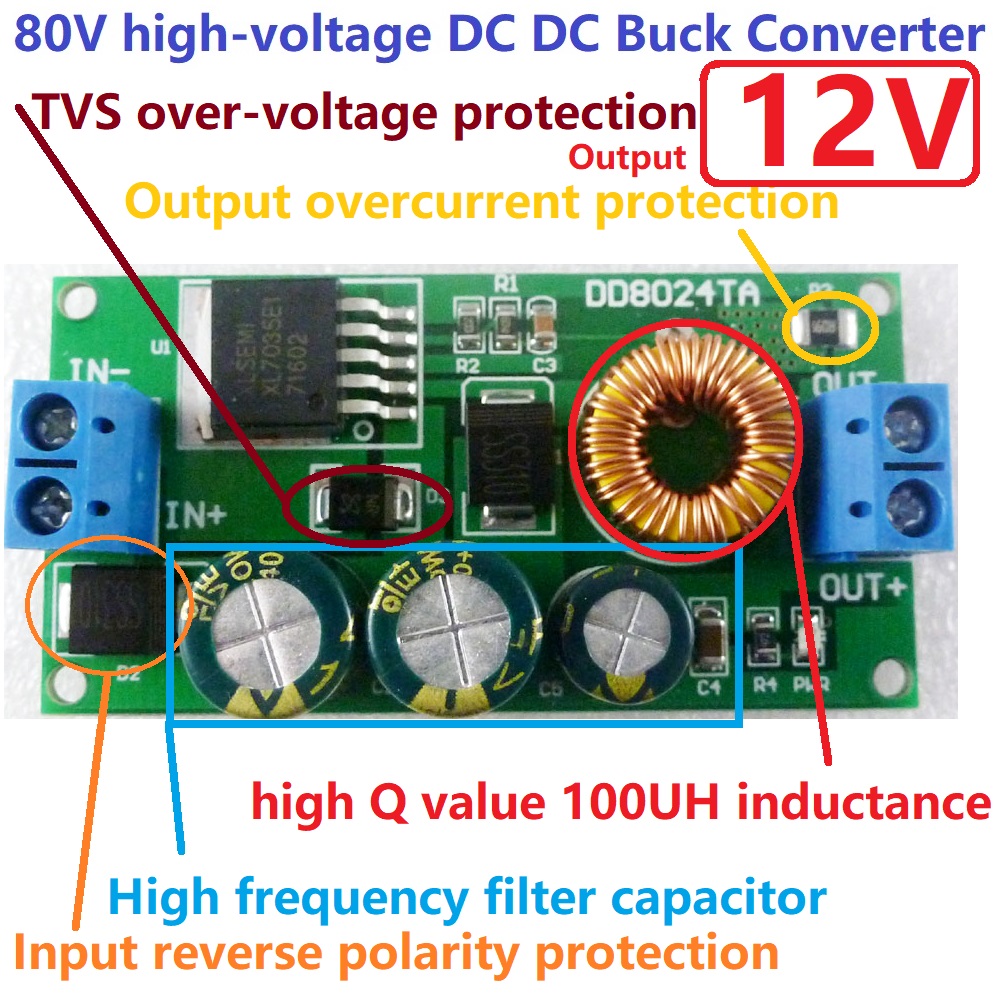

Description:
1 input reverse polarity protection
2 TVS overvoltage protection
3 high frequency filter capacitor
4 high Q value 100UH inductance
5 Output overcurrent protection
6 Over temperature protection
7 Output short circuit protection
For high power versions, Please click on the image below.
3.3V :
Input voltage 10~80V,output 3.3V
Maximum output current 1A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
Operating Temperature : –40°C to +85°C
Size : 59 x 30 x 16mm
Weight : With terminal 19g;No terminal 15.5g
5V :

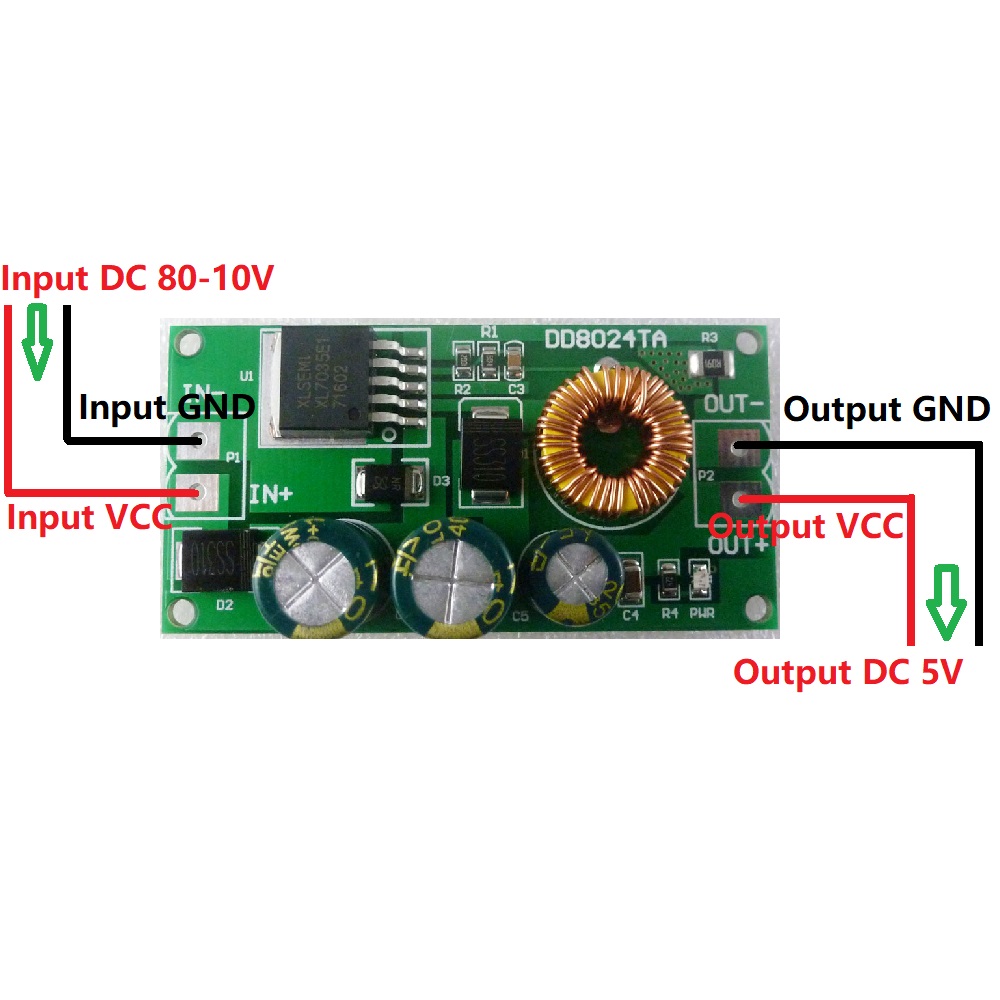

Input voltage 10~80V,output 5V
Maximum output current 1A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
Operating Temperature : –40°C to +85°C
6V :
Input voltage 10~80V,output 6V
Maximum output current 1A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
Operating Temperature : –40°C to +85°C
9V :
Input voltage 10~80V,output 9V
Maximum output current 0.75A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
Operating Temperature : –40°C to +85°C
12V :
Input voltage 14~80V,output 12V
Maximum output current 0.75A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
Operating Temperature : –40°C to +85°C
15V :
Input voltage 17~80V,output 15V
Maximum output current 0.75A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
Operating Temperature : –40°C to +85°C
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Applications:
Electric bicycle EBike motorcycle
DC 80V 72V 64V 60V 48V 36V 24V
CCTV camera
RS485 Modbus equipment
