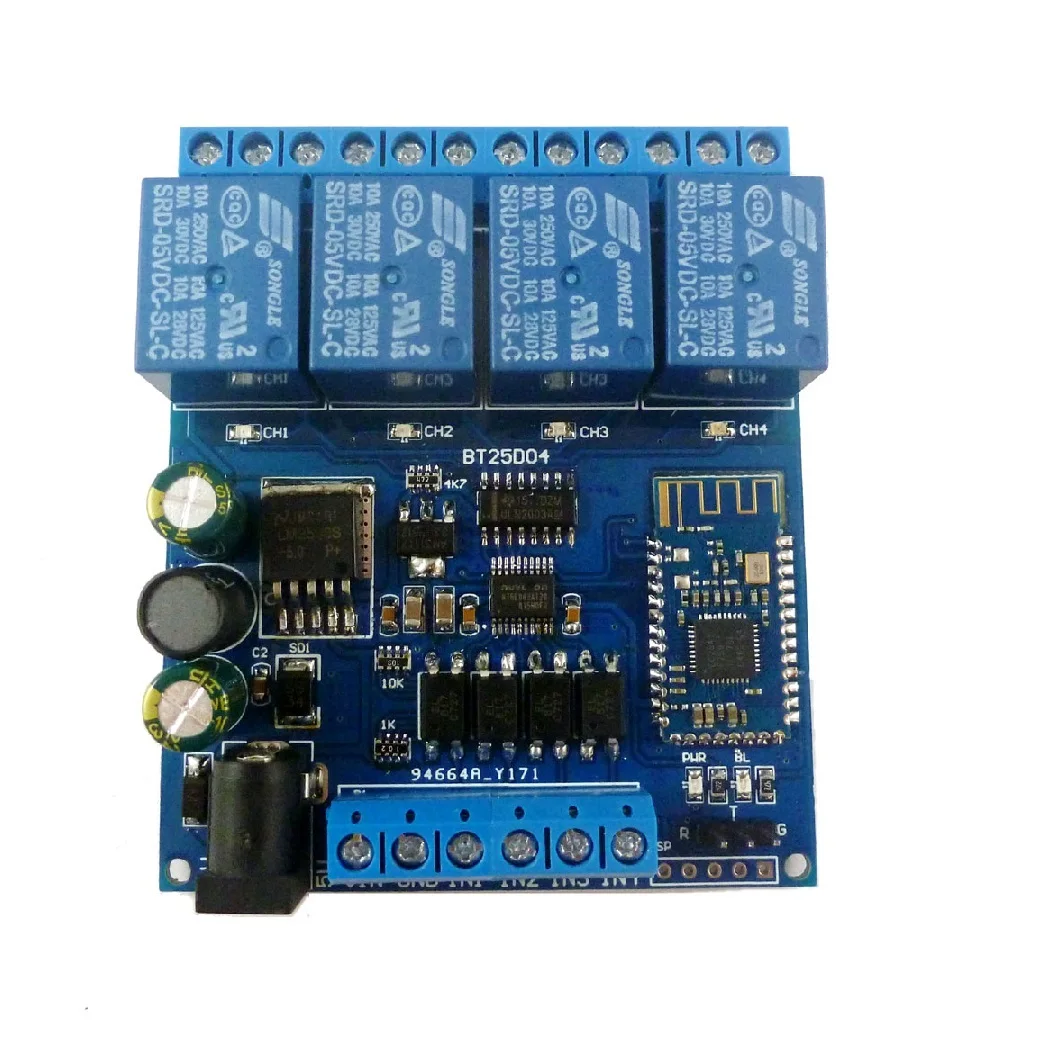

Description:
1 Operating voltage: power supply 1,DC 6-25V; power supply 2,DC 5V.
2 Operating Current: Standby current (all relays closed) 13MA, 1 relay open 43MA, 2 relays open 75MA,3 relays open 107MA, 4 relays open 139MA.
3 Bluetooth protocol: Bluetooth Specification V4.0 BLE.
4 Based on TI CC2541 chipset, Support android 4.3 or above,phone 4s or above (IOS8 or above) mobile control
5 2.4GHz-2.48GHz unlicensed ISM band.
6 send commands via Android/IOS Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control). It can also be triggered by an external pulse signal.
7 ''Momentary'' ''Self-locking'' ''Interlock'' ''open'' ''close'' ''Delay1(Second)'',''Delay2(0.1Second)'' 7 Commands
8 External trigger input, opto-isolated switch, low pulse inputs.
9 size 80*66*19mm
10 Weight : 75g
NOTE:
Remote control switch
Remote locking
Garage door remote control
Smart Home / Home Automation
DC 5-24V LED lighting
Fluorescent lamp
DC 5-24V DC Motor
Fluorescent lamp
Automotive electronics
Industrial automation and control
PTC Camera
Air conditioning / fan remote control
2 DC 5V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, toy car and other DC 5V equipment
