Typical applications:
Home lighting system
Remote control switch
Remote locking
Smart Home / Home Automation
DC 12V LED lighting
Fluorescent lamp
12V DC Motor
Fluorescent lamp
Automotive electronics
PLC
Industrial automation and control
1 DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 12V equipment
2 DC 12V motor reversing control, Wiring diagram below. "LOAD" can be RS360 and other DC 12V equipment
3 DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment
4 DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment

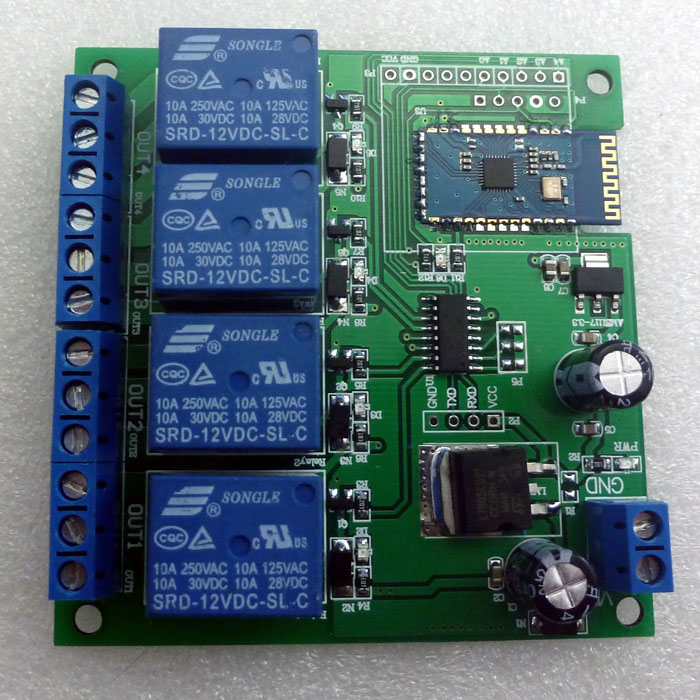

Product Name:12V 4 Channel Bluetooth Relay Android Mobile Remote control Switch for Motor LED Light Lock NET
Module No.: CE028
Package inlcuded:
1 pcs DC 12V 4 Channel Bluetooth Relay Module
Description: 1: DC 12V power supply (voltage range 9-13V, 5V version can be customized ) 2: Standby current (all relays closed) 35MA, 1 relay open 60MA, 2 relays open 91MA, 3 relays open 125MA, 4 relays open 155MA 3: send commands via Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control) 4 "Momentary" "Self-locking" "Interlock" "open" "close" 5 Commands Bluetooth relay manual:
USE:
1 Click to find Bluetooth devices
2 Search for Bluetooth devices
3 Click mating connector,
4 The first connection requires a password, the default password is: 1234
5 After a successful connection, the indicator is no longer flashing.
 Glossary: NO : Relay normally open contact COM : Relay common contact NC : Relay normally closed contact Momentary : Mobile terminal input "A0" (B0 / C0 / D0 is the same), the relay is "open",and after delay of 1 second the relay is "Close". Self-locking : Mobile terminal input "A1", the relay is "Open", input "A1", the relay is "Close", and so on Interlock : Mobile terminal input "A2", relay 1 is "Open", the other relay is "Close"; input "B2", relay 2 is "Open", the other relay is "Close", and so on. Open : NO connection COM, NC disconnect COM Close : NO disconnect COM, NC connection COM CommandS (Format: character, case-insensitive)
Bluetooth APP operations:
Access Password : 1234 Bluetooth Baud rate: 9600BPS |
