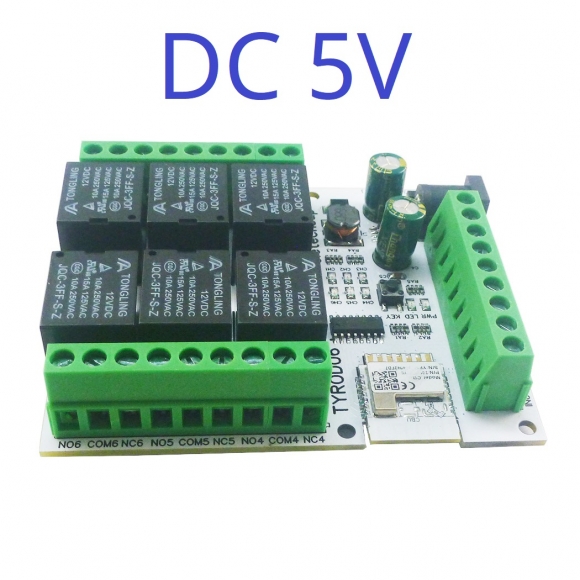

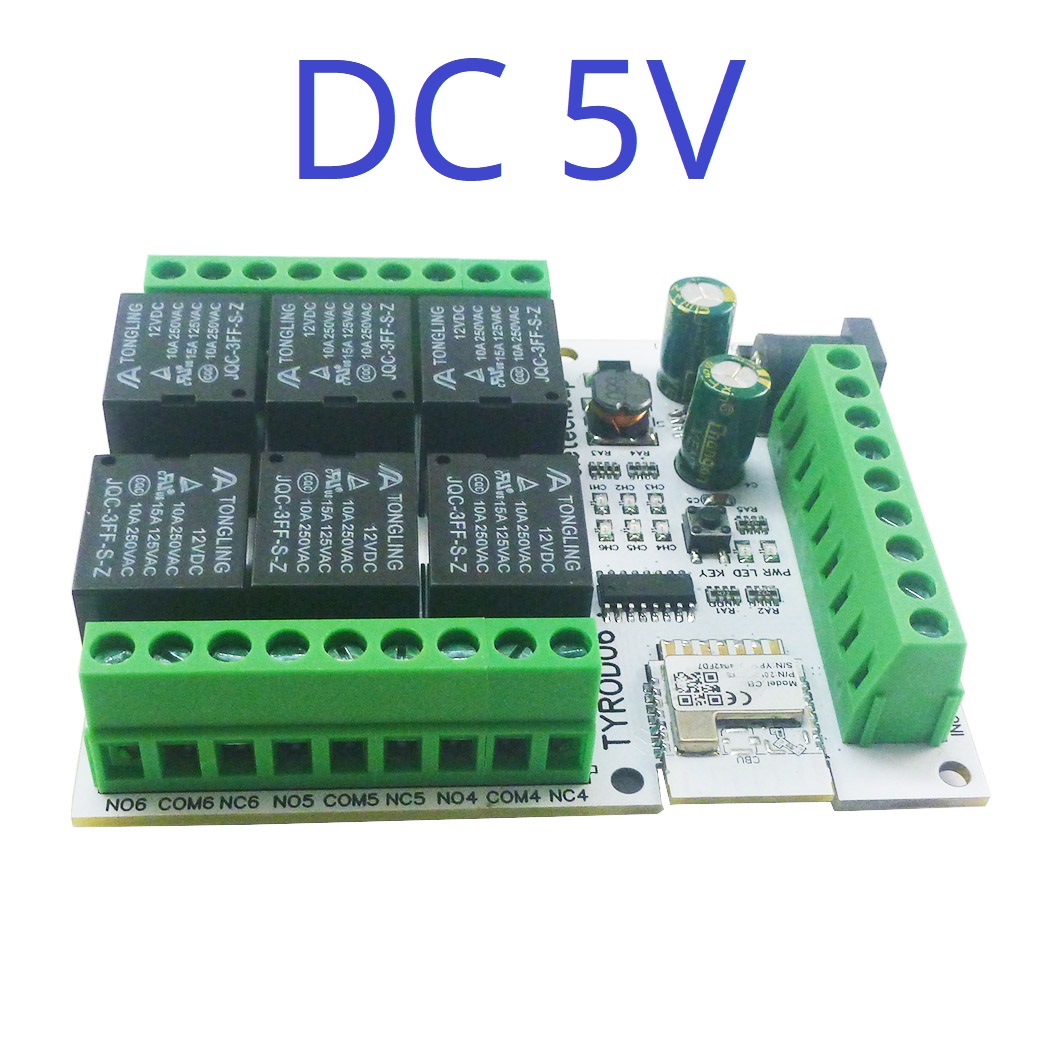

TYROD06 is the first WIFI smart relay module developed and designed by eletechsup. It has 6-channel NPN input ports and 6-channel 10A relay dry contact ports. Each output port has three contacts: NC, COM, and NO. Using this module, you can easily achieve ultra-remote control of home appliances.
Product parameters:
1 Working voltage: DC 5V/12V/24V(Three voltage versions)
2 Working current (DC 12V): standby 12MA, WIFI connection status 20-25MA, 1 relay on 48MA, 2 relays on 72MA, 3 relays on 102MA, 4 relays on 129MA, 5 relays on 160MA, 6 relays on 192MA
3 WiFi 2.4 ghz b/n/g
4 6 input channels, can directly control relay ON/OFF
5.6 10A relay outputs with NC COM NO ports
6 Support TUYA and smartlife APP, support Android and Apple mobile phone operating systems
7 Through the APP, the following functions can be realized: ON/OFF, Countdown, Timing, Cycle timing, Random timing, Inching switch
7 Size: 86*72*20MM
8 Weight: 107grams
9 Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC
How to use:
1 Download ''Tuya Smart'' OR ''Smart Life'' APP in the App Store
2 Follow the prompts of the APP to register and log in to your account
3 Follow the video ''TYROD06 first time using Demo'' to configure the network
![](https://ae01.alicdn.com/kf/S70870c749fb54f01ba46dcb8cefcd8aby.jpg)
![](https://ae01.alicdn.com/kf/S1e0b1288cf304a319e2f37fe74c32808L.jpg)
![](https://ae01.alicdn.com/kf/S9db3096246f24cd5a9642540036ccf21Q.jpg)
