DD0603SA Auto Buck-Boost DC DC 0.9-6V to 3.3V Step-UP Step-Down Converter Board Power Supply Module DD0603SA_3V3

DD0603SA Auto Buck-Boost DC DC 0.9-6V to 3.3V Step-UP Step-Down Converter Board Power Supply Module DD0603SA_3V3

  • Model: DD0603SA_3V3
  • Availability: In stock
  • Weight: 0.003Kg
US$1.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name:   Auto Buck-Boost DC DC 0.9-6V to 3.3V Step-UP Step-Down Converter Board Power Supply Module DD0603SA_3V3
Packing list:

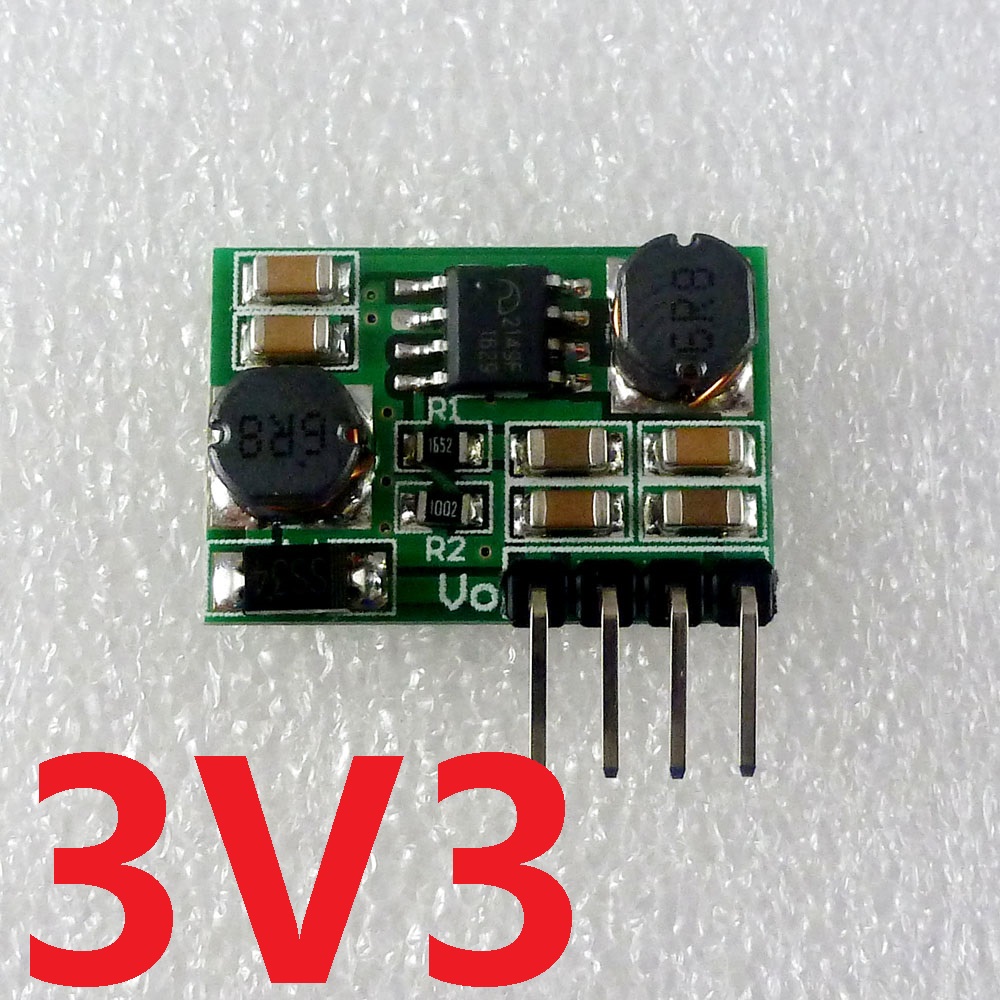

1 PCS DD0603SA_3V3 0.9-6V TO 3.3V DC DC Boost-Buck Converter Board


Description:

Input voltage DC 0.9 ~ 6V, output DC 3.3V(+-5%)

The maximum input voltage can not exceed 6.5V

Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 61%-85% .

Operating temperature range : -25~+85 Degrees Celsius

Storage temperature range : -45~+125 Degrees Celsius

2.54mm pin pitch,MCU Development Board Breadboard friendly.

Size : 22mm x 15mm x 5.7mm(Very small)

Weight : 2.6g(Very light)



Applications

Battery powered equipment
Breadboard Power Supply
ARM FPGA CPLD MCU Development board
electrical tools
Small power motors
Camera, Video camera
Toy car
power bank
LED Lighting
Wireless communication equipment
Audio equipment


Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself


Q & A:


Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
