OP31C08 In 9-24V Out 3-8V PNP to PNP 8ch PLC Digital Switch IO Isolation Protection Board 3.3V 5V 12V 24V Logic Level Converter NPN PNP Wet Contact

OP31C08 In 9-24V Out 3-8V PNP to PNP 8ch PLC Digital Switch IO Isolation Protection Board 3.3V 5V 12V 24V Logic Level Converter NPN PNP Wet Contact

  • Model: OP31C08_PNP_12V_5V
  • Availability: In stock
  • Weight: 0.04Kg
US$5.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: 8ch PLC Digital Switch IO Isolation Protection Board 3.3V 5V 12V 24V Logic Level Converter NPN PNP Wet Contact

Packing list:

1 PCS 8CH DC 3.3V/5V/12V/24V NPN PNP Opto-isolated level conversion Board




Description:
This is a 8-channel photoelectric isolation module, which can realize NPN to NPN(PNP to PNP) conversion, and can realize any level conversion of 3-24V. It is a reliable MCU PLC input and output port isolation module.

Input level : 3-8V/9-24V two versions
Output level: 3-8V/9-24V two versions
Working current: 3-8V out version 4-20MA; 9-24V out version 6-25MA
Input signal type: NPN/PNP
Output signal type: NPN/PNP
Input signal current: 3-8V version 4-15MA; 9-24V version 3-9MA
Output signal current: 3-8V version 1-3MA; 9-24V version 2-5MA
Isolation voltage: 3000V
Signal frequency: <10KHz
Working temperature: -40-110 degrees Celsius
Conversion type: NPN to NPN; PNP to PNP
Size: 72*50*18MM(only Board);76*63*44MM(with Box)
Weight: 37 grams(only Board);75 grams(with Box)


In 3-8V,Out 3-8V Version ,Suitable for the following level conversions
3.3V to 3.3V
3.3V to 5V
5V to 3.3V
5V to 5V

In 3-8V,Out 9-24V Version ,Suitable for the following level conversions
3.3V to 12V
3.3V to 24V
5V to 12V
5V to 24V

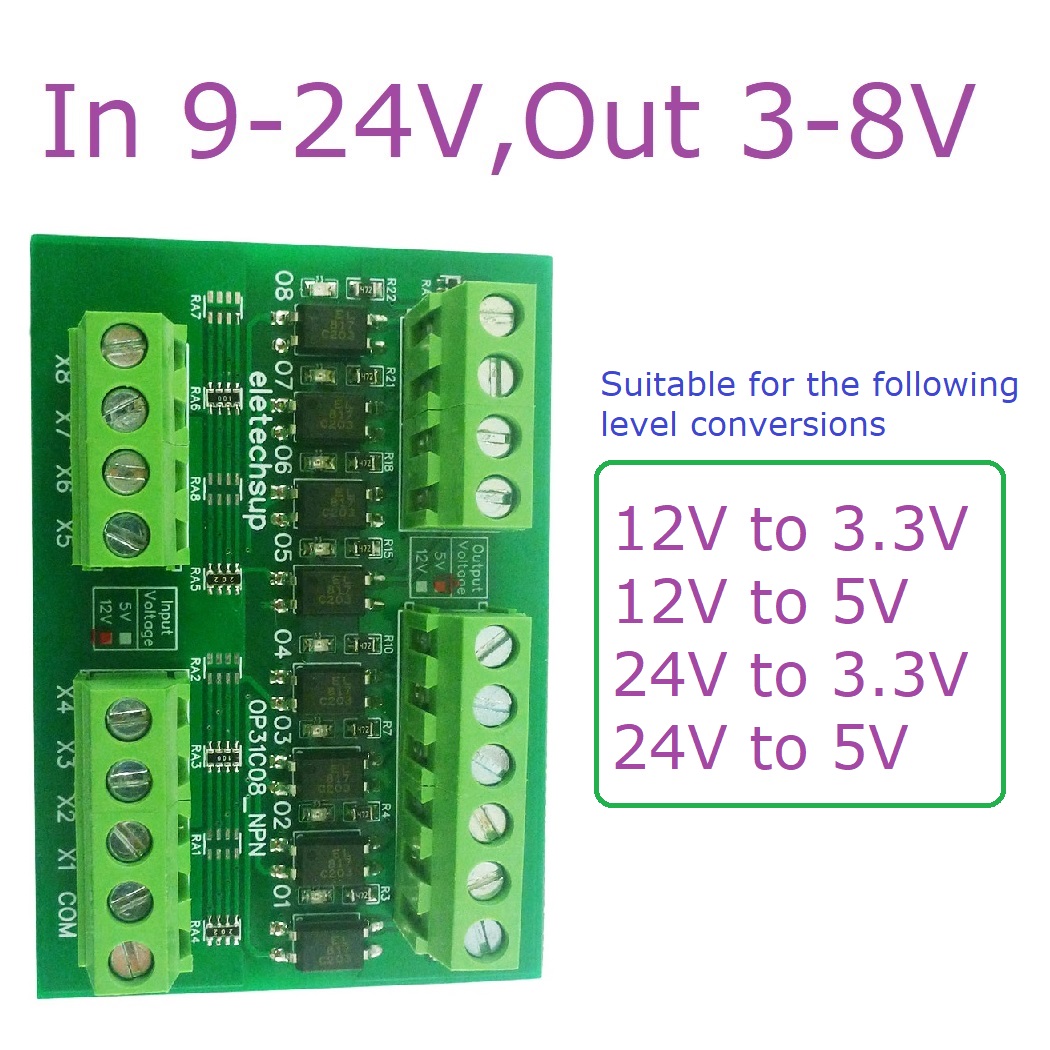

In 9-24V,Out 3-8V Version ,Suitable for the following level conversions
12V to 3.3V
12V to 5V
24V to 3.3V
24V to 5V

In 9-24V,Out 9-24V Version ,Suitable for the following level conversions
12V to 12V
12V to 24V
24V to 12V
24V to 24V
