Product Name:   DD2412SA_5V 2-24V to 5V DC-DC Boost-Buck Step-up & Step-down Converter Power Supply Module for Cell phone charger
Packing list:

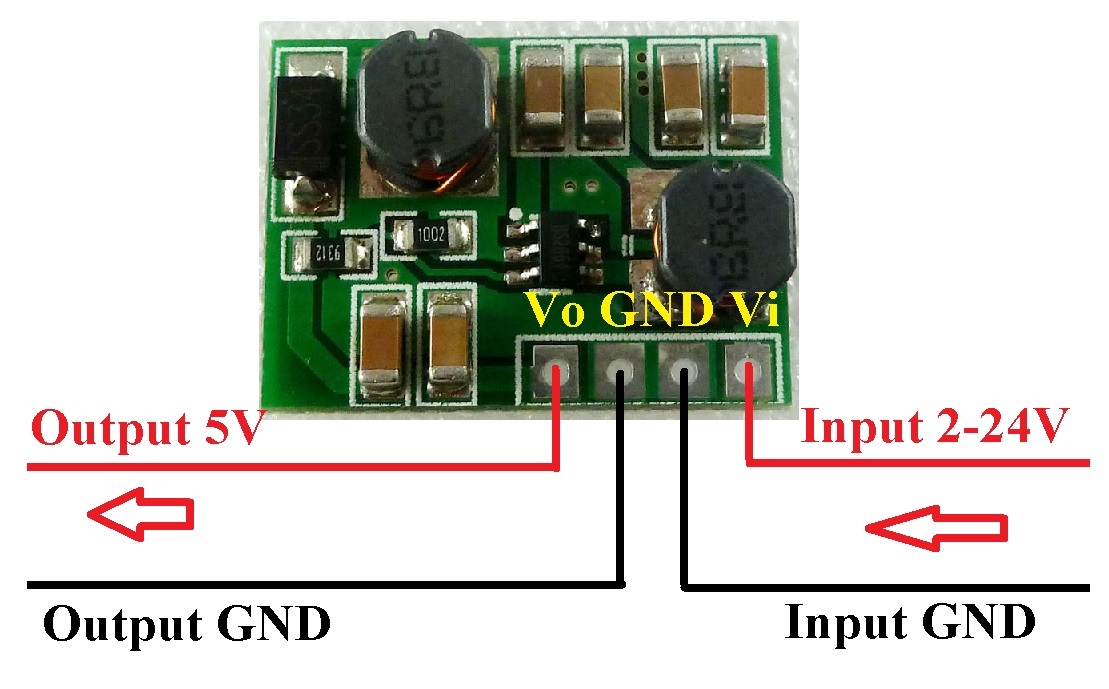

1 PCS DD2412SA_5V 2-24V TO 5V DC DC Boost-Buck Converter Module


Description:

Input voltage DC 2-24V, output DC 5V±5% (No-load voltage is 5-5.4V)

2 in 1 DC DC Boost-Buck Converter Module working frequency 1.2MHZ.efficiency 70%-90% .

Operating temperature range : -40~+85 Degrees Celsius

Storage temperature range : -65~+150 Degrees Celsius

2.54mm pin pitch,MCU Development Board Breadboard friendly.

Size : 21.4mm x 15.6mm x 5.8mm(Very small)

Weight : 2.2g(Very light)



Applications

Battery powered equipment
Breadboard Power Supply
ARM STM32 AVR PIC FPGA CPLD Board
Small power motors
Camera, Video camera
Toy car
power bank
Phone PDA
LED Lighting
Wireless communication equipment
Audio equipment


Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself


Q & A:


Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
