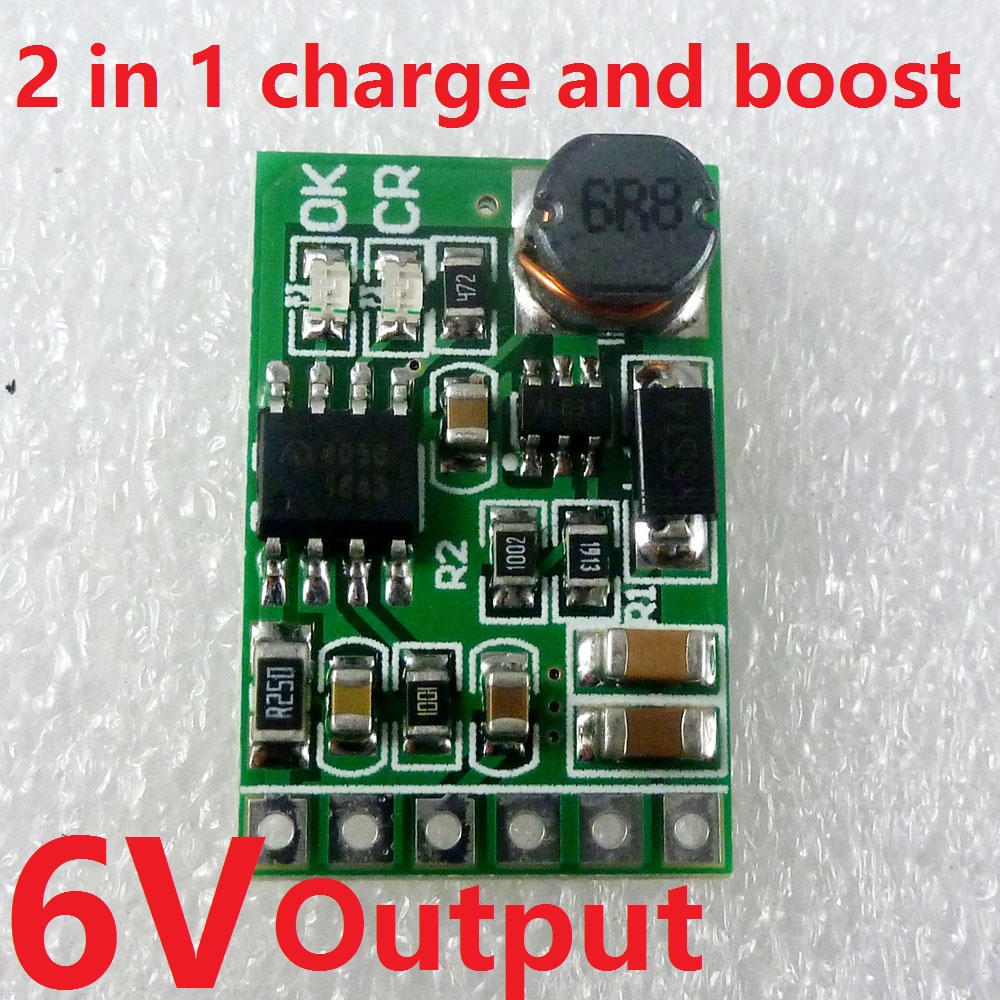

DD05CVSB 2 In 1 CH Discharger Board DC DC Converter Step-up Module Charge In 4.5-8V Boost Out 6V For UPS Mobile Power Diy

DD05CVSB 2 In 1 CH Discharger Board DC DC Converter Step-up Module Charge In 4.5-8V Boost Out 6V For UPS Mobile Power Diy

  • Model: DD05CVSB_6V
  • Availability: In stock
  • Weight: 0.003Kg
US$2.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name:2 In 1 CH Discharger Board DC DC Converter Step-up Module Charge In 4.5-8V Boost Out 5V For UPS Mobile Power Diy

Packing list:

1 Pcs DD05CVSA 2 in 1 charge and boost DC DC Converter









Description:










2 in 1 charge and Discharger(boost) modules







Charge voltage : DC 4.5V-8V(Recommend DC 5V)


Charging current : 0-1A


Full charge voltage : 4.2V+-2%.


Led indicator : ''OK'' LED is fully charged OR battery failure status indicator;


''CR'' LED is charge status indicator







(Boost in)Discharge current : 0-2A;


(Boost in)Discharge quiescent current : 450uA


(Boost in)Discharge conversion efficiency : 78%-90%







(Boost out)Output current : 0-1.2A(5V),0-1A(6V),0-0.66A(9V),0-0.5A(12V);







Operating ambient temperature : -40° to +85°


Storage temperature : -65° to +125°


Does not include pin size : 23 x 15.4 x 5.7mm


Weight : 2.2g(with Pin),1.8g(no Pin)






Note :


This module without lithium battery over-discharge protection,


Matching protection board Click here to buy







Applications:








Battery powered equipment


Lithium Battery 18650 14500


Mobile phone diy


UPS power supply equipment diy


Solar charging


MP3/MP4 player


Audio equipment


Video equipment


Portable Devices


Bluetooth Applications
