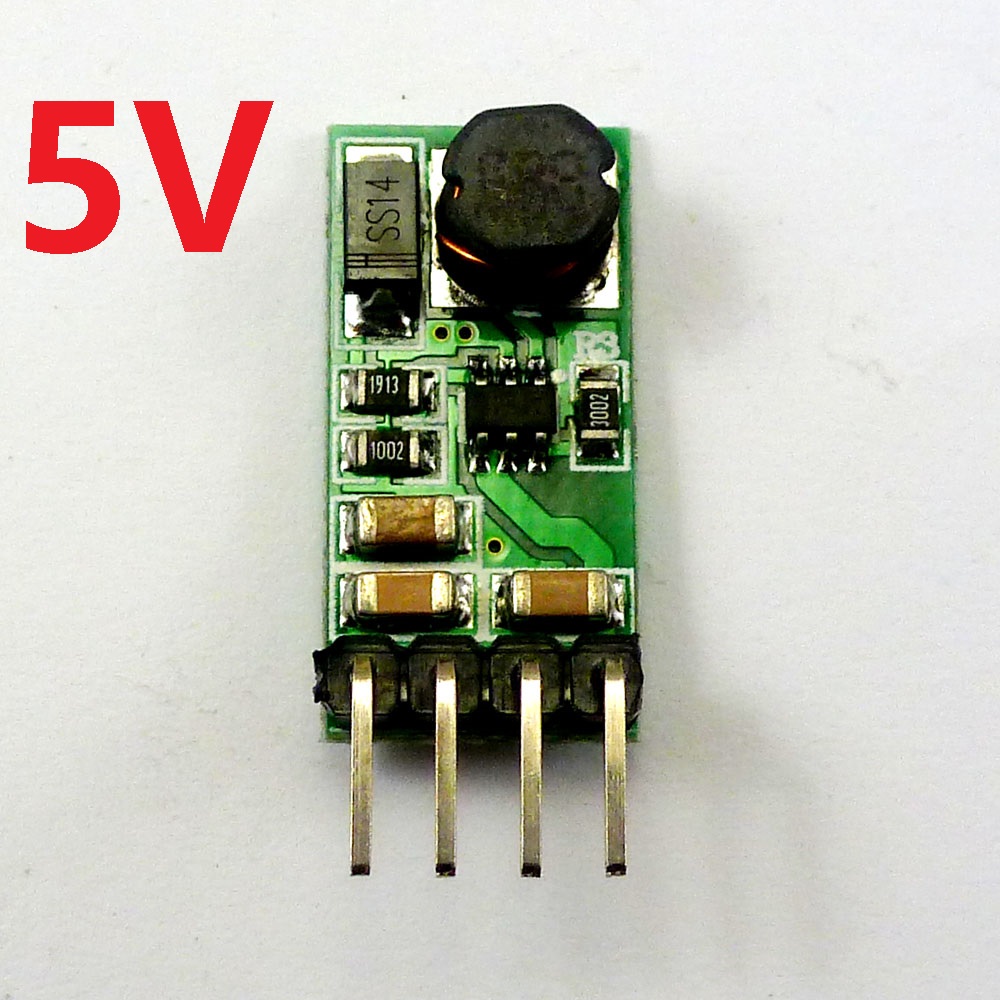

5V:
9V:
INPUT 3.7V 1A; OUTPUT 9V 360MA
INPUT 4.5V 1A; OUTPUT 9V 440MA
INPUT 5V 1A; OUTPUT 9V 490MA
INPUT 6V 1A; OUTPUT 9V 590MA
12V:
Maximum input current : 1.2A
Long-term work Current : 1A
Conversion efficiency : 80-90%
DC-DC Boost module working frequency 1.0MHZ.
Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR
C8051 etc
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
