DD0405MA Mini 600MA 0.7-3V To 3V Boost Step-up DC-DC Converter Voltage PFM Regulator Module For AA AAA Dry Cell Button Battery

DD0405MA Mini 600MA 0.7-3V To 3V Boost Step-up DC-DC Converter Voltage PFM Regulator Module For AA AAA Dry Cell Button Battery

  • Model: DD0405MA_3V
  • Availability: In stock
  • Weight: 0.003Kg
US$0.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name: Mini 600MA 1.5V 3V 3.3V 3.7V To 5V Boost Step-up DC-DC Converter Voltage PFM Regulator Module For AA AAA Dry Cell Button Battery

Packing list:

1 pcs mini High Efficiency synchronous PFM step-up DC-DC converter











Description:

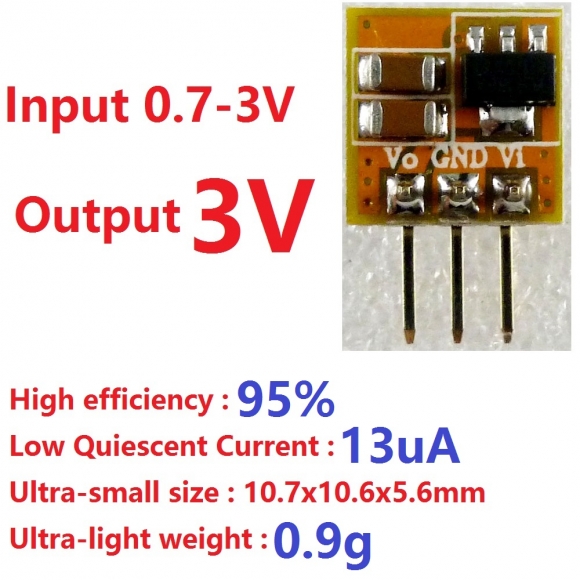

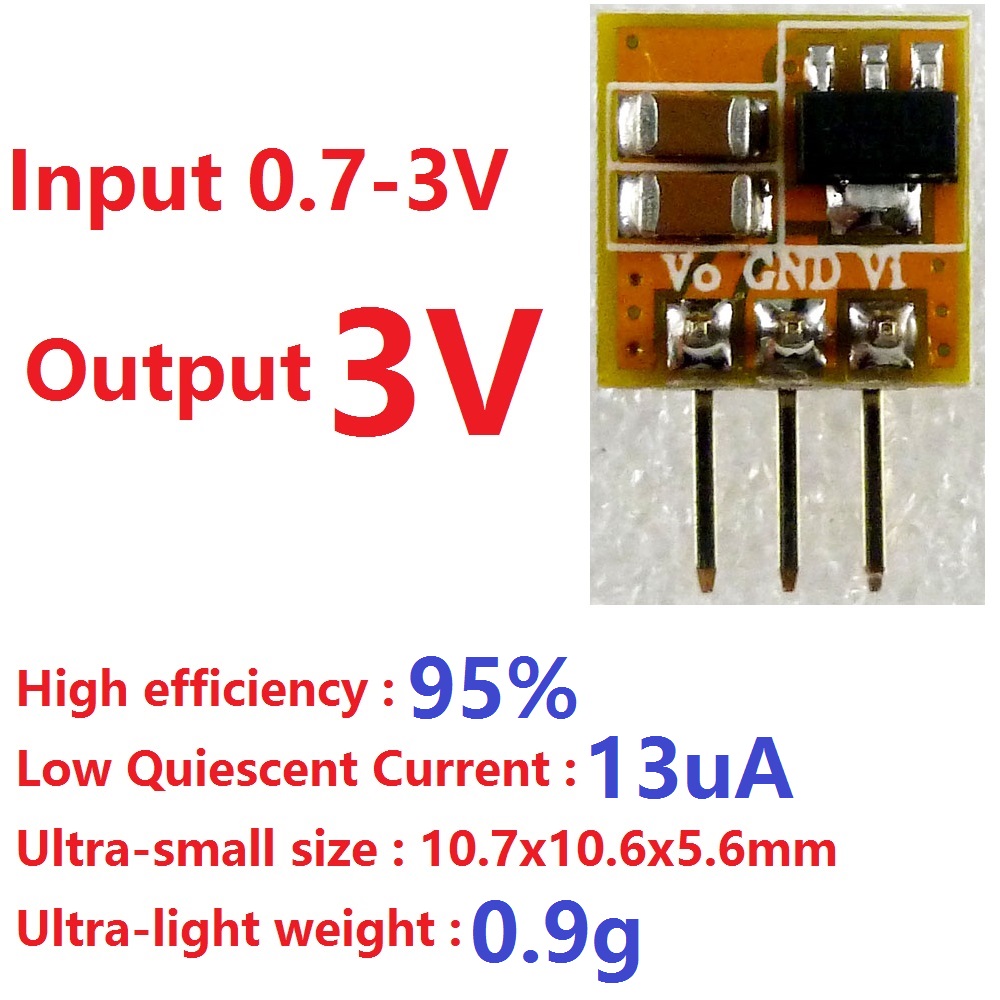

3V :




Input voltage DC 0.7 ~ 3V,output DC 3V±2%



DC DC Boost Converter Module working frequency 350KHZ.




High efficiency : 95% (usually is 77%-93%)




Low Quiescent Current : 13uA



Low ripple and Low noise



Ultra-small size(Not including pin): 10.7x10.6x5.6mm




Ultra-light weight : with Pin is 0.9g,no Pin is 0.65g








3.3V :




Input voltage DC 0.8 ~ 3.3V,output DC 3.3V±2%



DC DC Boost Converter Module working frequency 350KHZ.




High efficiency : 95% (usually is 75%-93%)



Low Quiescent Current : 13uA



Low ripple and Low noise



Ultra-small size (Not including pin): 10.7x10.6x5.6mm




Ultra-light weight :


with Pin is 0.9g,no Pin is 0.65g












5V :




Input voltage DC 1 ~ 5V,output DC 5V±2%



DC DC Boost Converter Module working frequency 350KHZ.




High efficiency : 95% (usually is 76%-93%)




Low Quiescent Current : 13uA



Ultra-small size


(Not including pin): 10.7x10.6x5.6mm




Ultra-light weight :
with Pin is 0.9g,no Pin is 0.65g












Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



Q & A:




Q : Why output voltage is less than the nominal voltage



A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low







Applications:




AA AAA Dry cell powered equipment


Breadboard Power Supply


Small power motors


Camera, Video camera


Electric toys


Model aircraft


LED Lighting


raspberry pi Arduino UNO MEGA2560


electronic diy kit


STM32 FPGA/CPLD PIC AVR Board


electronic diy kit


Wifi Module,ESP8266



Bluetooth Module,HC-05,HC-06,SPP-C
