DD0606SA 1-4.5V to 4.5V DC DC Step up Boost Converter Module Power Supply Board for aaa duracell DC Motor car toy

DD0606SA 1-4.5V to 4.5V DC DC Step up Boost Converter Module Power Supply Board for aaa duracell DC Motor car toy

  • Model: DD0606SB_4V5
  • Availability: In stock
  • Weight: 0.003Kg
US$1.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Below item is powered by Canton-Power Ltd .

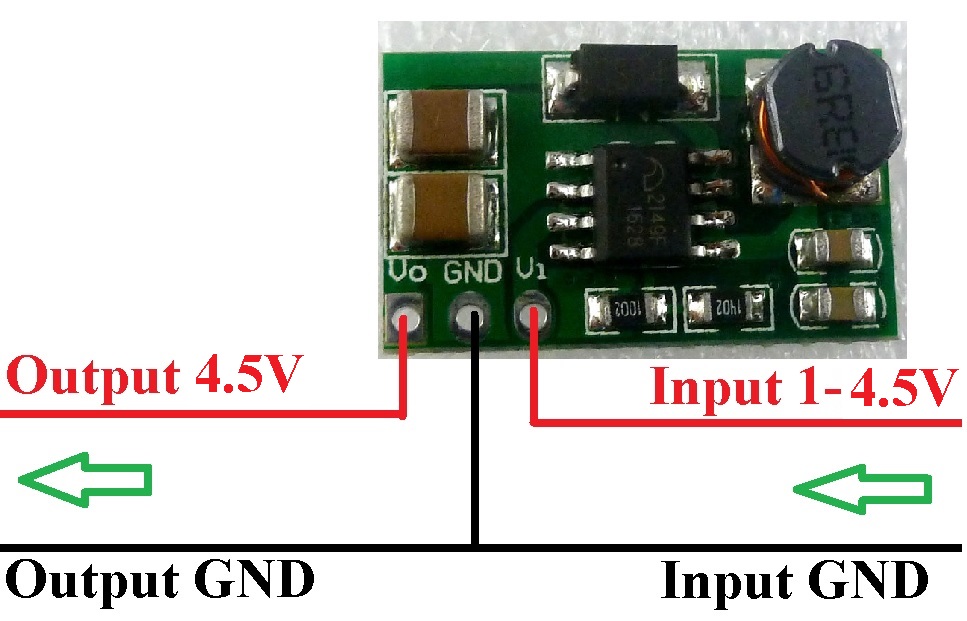

Product Name:   DD0606SA_4V5 1-4.5V to 4.5V DC DC Step up Boost Converter Module Power Supply Board for aaa duracell DC Motor car toy
Packing list:

1 PCS 1V-4.5V TO 4.5V Step-up Boost Module


Description:

Input voltage DC 1 ~ 4.5V, output DC 4.5V(+-5%)

DC DC Boost Converter Module working frequency 1MHZ.efficiency 66%-88% .

Operating temperature range : -25~+85 Degrees Celsius

Storage temperature range : -45~+125 Degrees Celsius

2.54mm pin pitch,MCU Development Board Breadboard friendly.

Excluding Pin Size : 21.3mm x 12.5mm x 5.7mm(Very small)

Weight : 1.85g(Very light



Applications

Battery powered equipment
Breadboard Power Supply
ARM STM32 FPGA CPLD Board
Wireless Module,  esp8266 nrf24l01 rtl8710 GSM etc
3.3V Small power motors
Camera, Video camera
3.3V Toy car
PDA
LED Lighting
Wireless communication equipment
Audio equipment


Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself


Q & A:


Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
