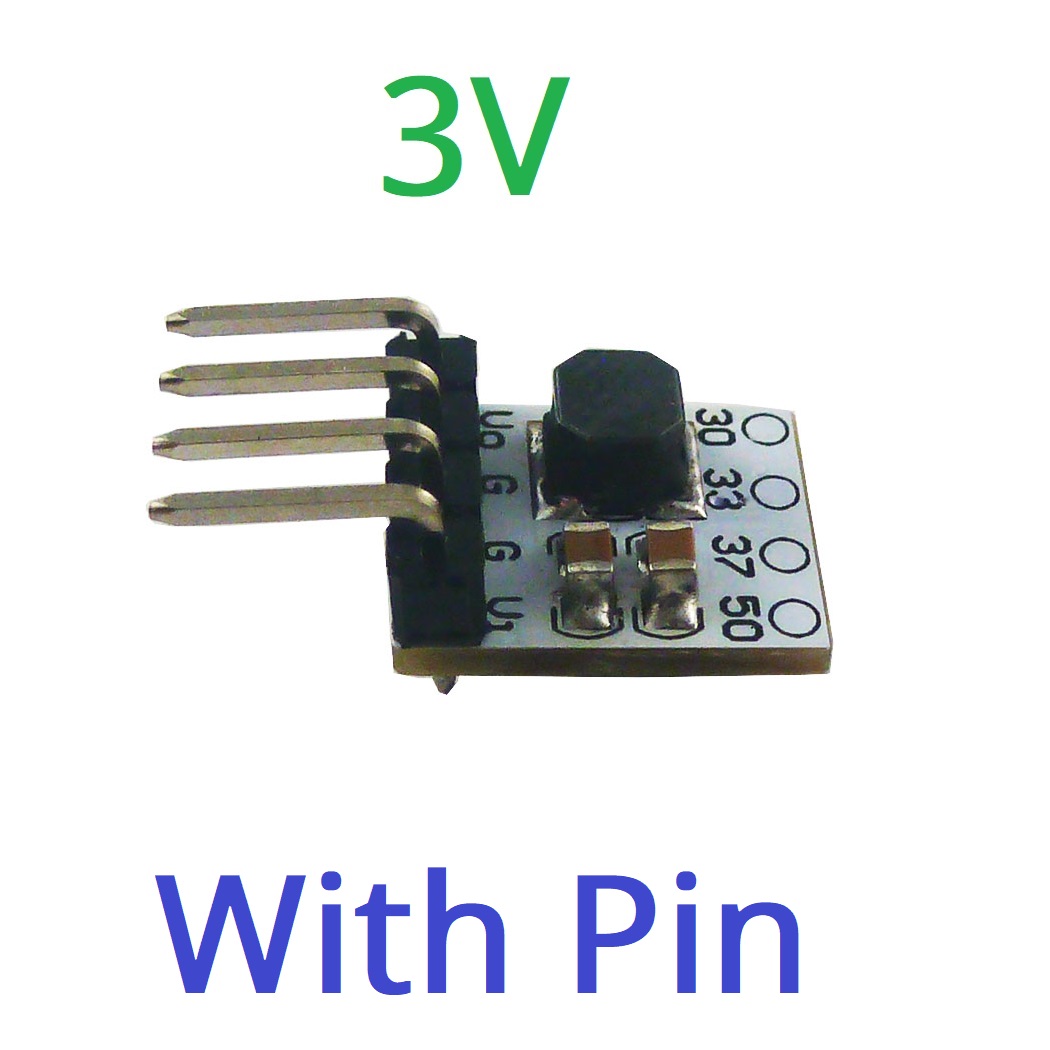

3V: Input voltage DC 0.7 ~ 3V, Output DC 3V±2%
3.3V: Input voltage DC 0.8 ~ 3.3V,Output DC 3.3V±2%
3.7V: Input voltage DC 0.8 ~ 3.7V,Output DC 3.7V±2%
5V: Input voltage DC 1 ~ 5V, Output DC 5V±2%
DC DC Boost Converter Module working frequency 350KHZ.
High efficiency : Up to 95%
Low Quiescent Current : 15uA
Low ripple and Low noise
Mini size(Not including pin): 12x10.6x5mm
Ultra-light Weight : 0.6g(Only Board),1g(with Pin )
Voltage and current input and output details (laboratory test results, for reference only)
3V Version:
Input 0.7V 100MA,Output 2.99V 20MA
Input 1V 100MA, Output 2.92V 100MA
Input 1.5V 520MA,Output 2.90V 200MA
Input 1.8V 520MA,Output 2.92V 250MA
Input 2V 560MA, Output 2.91V 300MA
Input 2.5V 650MA,Output 2.91V 200MA
3.3V Version:
Input 0.8V 90MA, Output 3.28V 20MA
Input 1V 220MA, Output 3.25V 60MA
Input 1.2V 340MA,Output 3.23V 100MA
Input 1.5V 480MA,Output 3.21V 180MA
Input 2V 360MA, Output 3.24V 200MA
Input 2.5V 630MA,Output 3.21V 400MA
Input 2.8V 700MA,Output 3.21V 500MA
Input 3V 630MA, Output 3.21V 600MA
5V Version:
Input 1V 60MA,Output 5V 10MA
Input 1.2V 180MA,Output 4.92V 40MA
Input 1.5V 400MA,Output 4.86V 100MA
Input 2V 420MA, Output 4.85V 150MA
Input 2.5V 450MA,OOutput 4.86V 200MA
Input 2.8V 400MA,Output 4.86V 250MA
Input 3V 570MA, Output 4.86V 300MA
Input 3.3V 800MA,Output 4.81V 450MA
Input 3.7V 780MA,Output 4.86V 500MA
Input 4.2V 820MA,Output 4.87V 600MA
Input 4.5V 880MA,Output 4.90V 700MA
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Applications
18650 LI-ON Lifepo4 Battery
Breadboard Power Supply
for raspberry pi Arduino UNO MEGA2560
electronic diy kit
STM32 FPGA/CPLD PIC AVR Board
electronic diy kit
Wifi Module,ESP32,ESP8266
HC-05,HC-06,SPP-C,BLE Bluetooth Module
