  • Model: N4DAC02
  • Availability: In stock
  • Weight: 0.003Kg
US$4.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

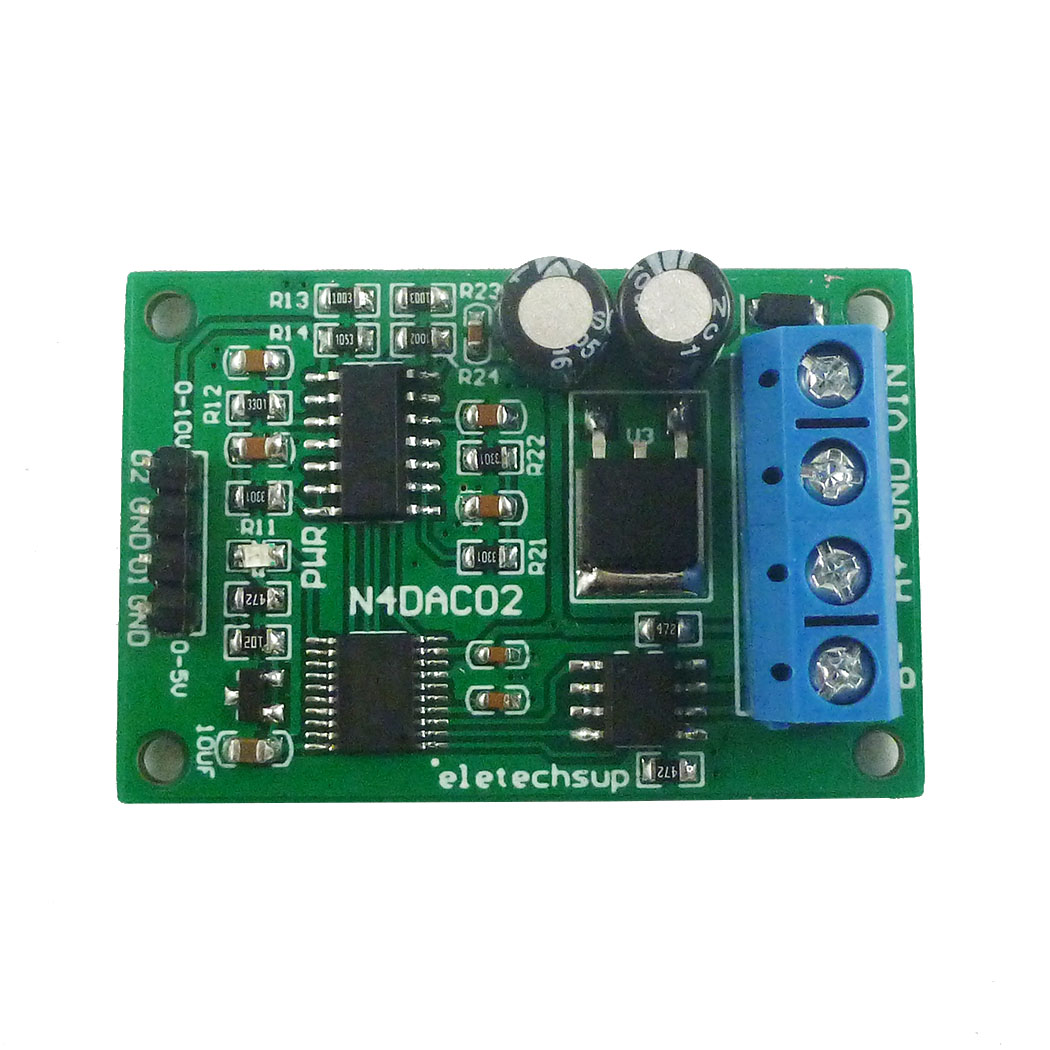

Product Name:2CH DC 12V 0-5V 0-10V Voltage Signal Generator DAC Converter Module RS485 Modbus RTU For PLC Measuring Instruments


Package inlcuded:
  1 x N4DAC02 12-25V 2 Channel PWM DAC RS485 Module

Description:

1: Operating Voltage : DC 12 (DC 12-25V), recommended power supply with small ripple
2: Operating Current : 12-13MA
3: MODBUS RTU Command support 03 06 function code
4: CH1(O1) output voltage is 0-5V, maximum output current is 20MA. 1-5V accuracy 1%, <1V there is a ripple of 50HZ/40MV.
CH2(O2) output voltage is 0-10V, maximum output current is 20MA. 2-10V accuracy 1%, <2V there is a ripple of 50HZ/80MV.
5: The voltage resolution is 0.01V, the output accuracy is 1%; if the error is greater than 1%, it can be calibrated
6 :MODBUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter;
7 :Under the MODBUS command mode, it can support up to 247 devices in parallel
8 :Size: 45 * 35 * 15mm
9 :Weight: 10g


Instruction manual Please ask us after the purchase

Note:
This is a low-cost digital-to-analog conversion module based on the PWM+ADC solution. It has the following disadvantages:
1 channel 1 (O1) has 1% accuracy at 1-5V, <1V has 50HZ/40MV ripple, channel 2 (O2) has 1% accuracy at 2-10V, and <2V has 50HZ/80MV Ripple.
2 channel 1 (O1) minimum output voltage is 0.05V, channel 2 (O2) minimum output voltage is 0.1V
3 There is a 10-20MS high pulse at the moment of power-on
Application
4-20MA/0-20MA Sensor
Current and voltage signal transmission
Automated industry PLC
Smart Home,Home Automation ;
Identification system;
RS485 Remote monitoring;
Multimeter voltmeter

Interface introduction




Wiring diagram
