DD0403MA 3V Mini Step-Down Power Supply Buck DC-DC Converter LDO Voltage Regulator Module Repl AMS1117-3.3 Power Supply Board

DD0403MA 3V Mini Step-Down Power Supply Buck DC-DC Converter LDO Voltage Regulator Module Repl AMS1117-3.3 Power Supply Board

  • Model: DD0403MB_3V
  • Availability: In stock
  • Weight: 0.003Kg
US$0.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns
Description:

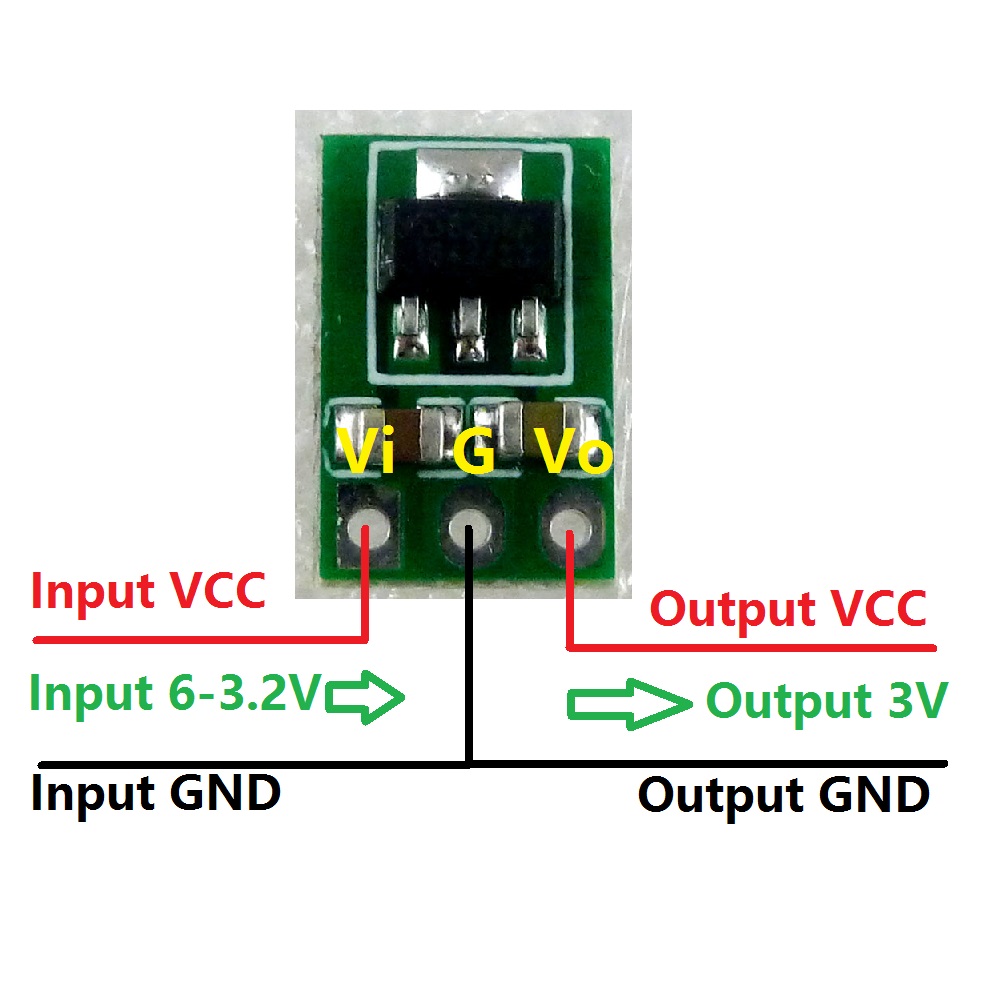

3V :




Low power consumption,Low ESR Cap.Compatible DD0403MA Series LDO Module,Very suitable for lithium battery-powered




Input voltage: DC 3.2-6V




Output voltage: DC 3V



Long time maximum output current 300mA


Short time maximum output current 400mA




Highly Accurate:±2%




Quiescent Current : 8uA




Short Circuit Current : 30mA




Over Current Protection : 500mA




Operating Temperature: -25℃ ~ +85℃




Size : 11.6 x 7.8 x 2.5mm





Weight : with pin 0.5g,no pin 0.3g




3.3V :




Low power consumption,Low ESR Cap.Compatible DD0403MA Series LDO Module,Very suitable for lithium battery-powered




Input voltage: DC 3.5-6V




Output voltage: DC 3.3V



Long time maximum output current 300mA


Short time maximum output current 400mA




Highly Accurate:±2%




Quiescent Current : 8uA




Short Circuit Current : 30mA




Over Current Protection : 500mA




Operating Temperature: -25℃ ~ +85℃




Size(Not including pin) : 11.6 x 7.8 x 2.5mm





Weight : with pin 0.5g,no pin 0.3g











Attention :



This is a DC-DC voltage converter module,Must be noted when using:


1 Input voltage can not be greater than the maximum input range

2 Output power can not be greater than the maximum load for a long time

3 Input power must be greater than the output power, because the power consumption of the module itself








Applications:




AA AAA Dry cell powered equipment


Breadboard Power Supply


Small power motors


Camera, Video camera


Electric toys


Model aircraft


LED Lighting


raspberry pi Arduino UNO MEGA2560


electronic diy kit


STM32 FPGA/CPLD PIC AVR Board


electronic diy kit


Wifi Module,ESP8266



Bluetooth Module,HC-05,HC-06,SPP-C
