DD2712SA 3.5A DC-DC Converter Module Buck Step-Down Voltage Regulator Board 4.5V-27V to 3.7V

DD2712SA 3.5A DC-DC Converter Module Buck Step-Down Voltage Regulator Board 4.5V-27V to 3.7V

  • Model: DD2712SA_3V7
  • Availability: In stock
  • Weight: 0.003Kg
US$1.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name: 1 PCS 3.5A DC-DC Converter Module Buck Step-Down Voltage Regulator Board 4.5V-27V to 3V 3.3V 3.7V 5V 6V 7.5 9V 12V



Packing list:
1 PCS 3.5A DC DC Step Down Converter Module 4.5V-27V to 3V/3.3V/3.7V/5V/6V/7.5V/9V/12V



Description:

3V :
Input voltage 4.5~27V,output 3V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15.1 x 6.2mm
Weight : 2.46g


3.3V :
Input voltage 4.5~27V,output 3.3V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C

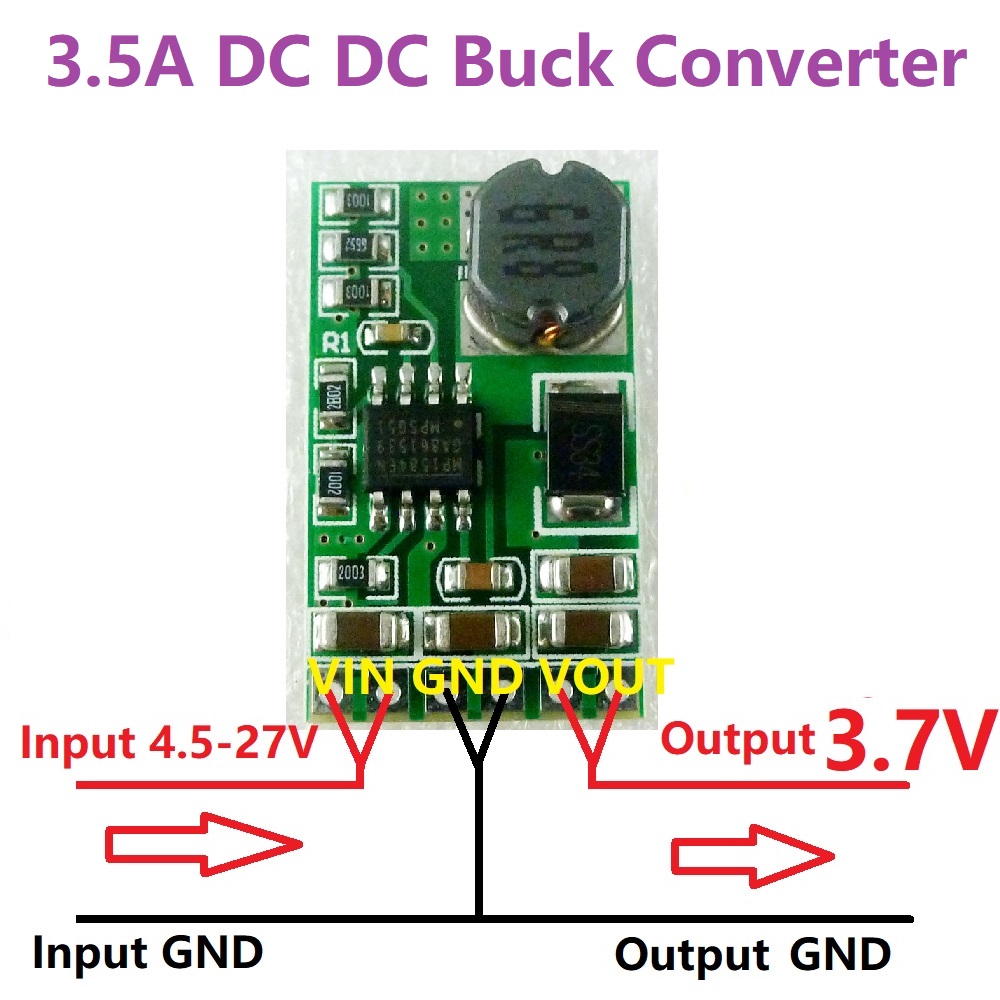

3.7V :
Input voltage 4.5~27V,output 3.7V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C


5V :
Input voltage 6.5~27V,output 5V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C



6V :
Input voltage 7.5~27V,output 6V
Maximum output current 2.5A,Short time maximum output current 3.3A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C



7.5V :
Input voltage 9~27V,output 7.5V
Maximum output current 2.5A,Short time maximum output current 3A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-93% .
Quiescent current: about 250uA
Qvertemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C


9V :
Input voltage 11~27V,output 9V
Maximum output current 2.3A,Short time maximum output current 3A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-93% .
Quiescent current: about 250uAOvertemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C



12V :
Input voltage 13~27V,output 12V
Maximum output current 2A,Short time maximum output current 3A
DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C


Attention :
This is a DC-DC voltage converter module,Must be noted when using:

1. Input voltage can not be greater than the maximum input range
2. Output power can not be greater than the maximum load for a long time
3. Input power must be greater than the output power, because the power consumption of the module itself
