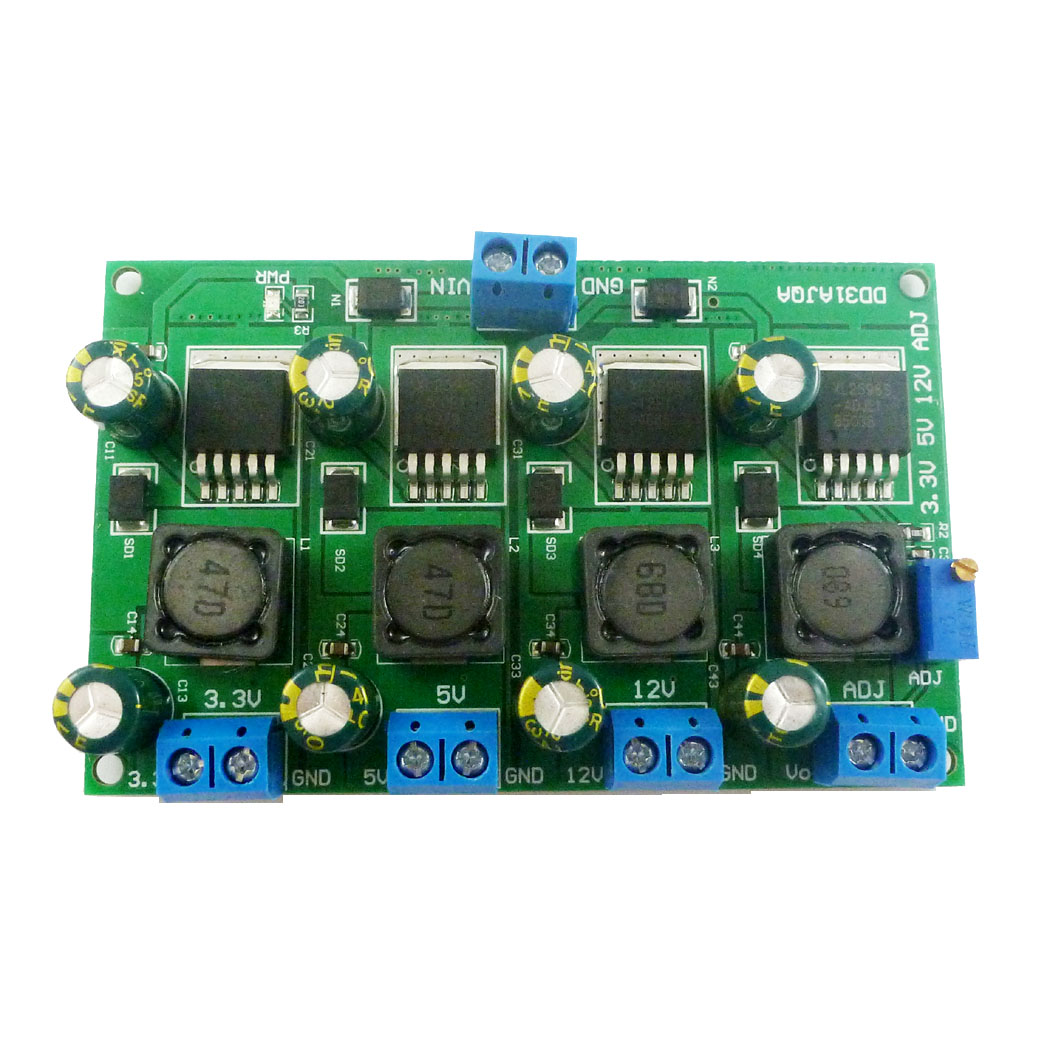

DD31AJQA 3A 4 CH Multiple Switching Power Supply Module 3.3V 5V 12V ADJ Adjus

DD31AJQA 3A 4 CH Multiple Switching Power Supply Module 3.3V 5V 12V ADJ Adjus

  • Model: DD31AJQA
  • Availability: In stock
  • Weight: 0.04Kg
US$9.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name : 3A 4 CH Multiple Switching Power Supply Module 3.3V 5V 12V ADJ Adjustable Output DC DC Step-Down Buck Converter Board


Packing list:

1 PCS DD31AJQA 3A multi-channel DC DC Step-Down Buck Converter Module
Description:

4-channels Step-down Buck DC-DC Converter power module

3.3V output: Input 4.5-30V, Output 3.3V (±3%)
5V output : Input 6.5-30V, Output 5V (±3%)
12V output : Input 13.5-30V, Output 12V (±3%)
AJD output : Input 4.5-30V, Adjustable Output 2-28V
Maximum output current per channel : 3A;
Overall maximum load power: 50 watts
Master chip : XL2596(compatible LM2596)
Working frequency 150KHz.
Input reverse connection protection
Built in thermal shutdown function,Built in current limit function,Built in second current limit function

Operating Temperature :–40°C to +85°C
Storage Temperature : –65°C to +150°C

Size : 88 x 55 x 15mm
Weight : 57g


Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



Applications:

MCU ARM STM32 CPU FPGA/CPLD UNO MEGA3560
PTZ CCTV IP camera
Smart home / home automation
WIFI Router Switch Network equipment
LED Motor
Lead-acid batteries
Battery powered equipment
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
