DD7818TA 2A DC 80V 72V 64V 48V 36V 24V to 6V HV Buck DC-DC Converter Module Power Supply Board replace LM2596HV LDO

DD7818TA 2A DC 80V 72V 64V 48V 36V 24V to 6V HV Buck DC-DC Converter Module Power Supply Board replace LM2596HV LDO

  • Model: DD7818TB_6V
  • Availability: In stock
  • Weight: 0.021Kg
US$2.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name:   2A DC 80V 72V 64V 48V 36V 24V to 15V 12V 9V 6V 5V HV Buck DC-DC Converter Module Power Supply Board replay LM2596HV LDO


Packing list:

1 PCS 2.1A HV DC-DC Converter Buck Step-Down Regulator Module 8-80V to 15V 12V 9V 6V 5V


Description:

1 input reverse polarity protection
2 TVS overvoltage protection
3 high frequency filter capacitor
4 high Q value 100UH inductance
5 Output overcurrent protection
6 Over temperature protection
7 Output short circuit protection

3.3V :
Input voltage 8~80V,output 3.3V

Maximum output current 2.1A

DC-DC high-voltage Step-Down Converter module working frequency 100KHz.
Maximum conversion efficiency is 93% .

Quiescent current: about 2.5mA

Operating Temperature : –40°C to +85°C

Size : 60 x 30 x 16mm

Weight : With terminal 20g;No terminal 16.5g

5V :
Input voltage 10~80V,output 5V

Maximum output current 2.1A

DC-DC high-voltage Step-Down Converter module working frequency 100KHz.
Maximum conversion efficiency is 93% .

Quiescent current: about 2.5mA

Operating Temperature : –40°C to +85°C

Size : 60 x 30 x 16mm

Weight : With terminal 20g;No terminal 16.5g

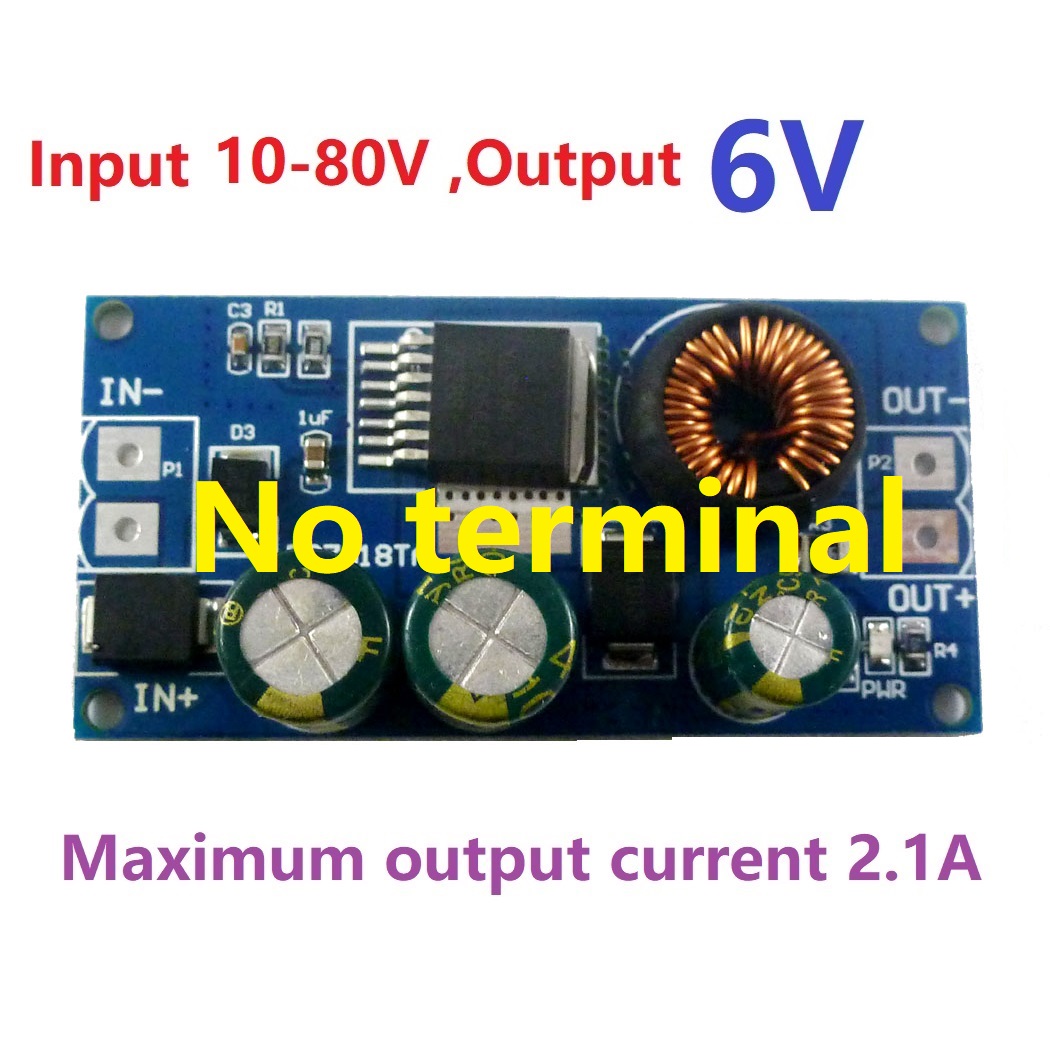

6V :
Input voltage 10~80V,output 6V

Maximum output current 2.1A

DC-DC high-voltage Step-Down Converter module working frequency 100KHz.
Maximum conversion efficiency is 93% .

Quiescent current: about 2.5mA

Operating Temperature : –40°C to +85°C

Size : 60 x 30 x 16mm

Weight : With terminal 20g;No terminal 16.5g

9V :
Input voltage 12~80V,output 9V

Maximum output current 1.5A

DC-DC high-voltage Step-Down Converter module working frequency 100KHz.
Maximum conversion efficiency is 93% .

Quiescent current: about 2.5mA

Operating Temperature : –40°C to +85°C

Size : 60 x 30 x 16mm

Weight : With terminal 20g;No terminal 16.5g

12V :
Input voltage 14.5~80V,output 12V

Maximum output current 1.5A

DC-DC high-voltage Step-Down Converter module working frequency 100KHz.
Maximum conversion efficiency is 93% .

Quiescent current: about 2.5mA

Operating Temperature : –40°C to +85°C

Size : 60 x 30 x 16mm

Weight : With terminal 20g;No terminal 16.5g

15V :
Input voltage 18~80V,output 15V

Maximum output current 1.2A

DC-DC high-voltage Step-Down Converter module working frequency 100KHz.
Maximum conversion efficiency is 93% .

Quiescent current: about 2.5mA

Operating Temperature : –40°C to +85°C

Size : 60 x 30 x 16mm

Weight : With terminal 20g;No terminal 16.5g


Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself





Applications:

Electric bicycle EBike motorcycle
DC 80V 72V 64V 60V 48V 36V 24V 12V
CCTV IP  PTZ camera
RS485 Modbus PLC equipment
Motor ​Toy Wifi Router
Network equipment
Multimeter instrumentation
Electric toys
Smart home / home automation
Battery powered equipment
EBike Lead-acid batteries
replace LM2596HV LDO
