DD8024TA High-Voltage EBike DC-DC Converter Buck Step-Down Regulator Module 80V 72V 64V 60V 48V 36V 24V to 5V

DD8024TA High-Voltage EBike DC-DC Converter Buck Step-Down Regulator Module 80V 72V 64V 60V 48V 36V 24V to 5V

  • Model: DD8024TA_5V
  • Availability: In stock
  • Weight: 0.02Kg
US$2.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Product Name: High-Voltage EBike DC-DC Converter Buck Step-Down Regulator Module 80V 72V 64V 60V 48V 36V 24V to 15V 12V 9V 6V 5V 3.3V




Packing list:
1 PCS High-Voltage DC-DC Converter Buck Step-Down Regulator Module 80V 72V 64V 60V 48V 36V 24V to 15V 12V 9V 6V 5V 3.3V

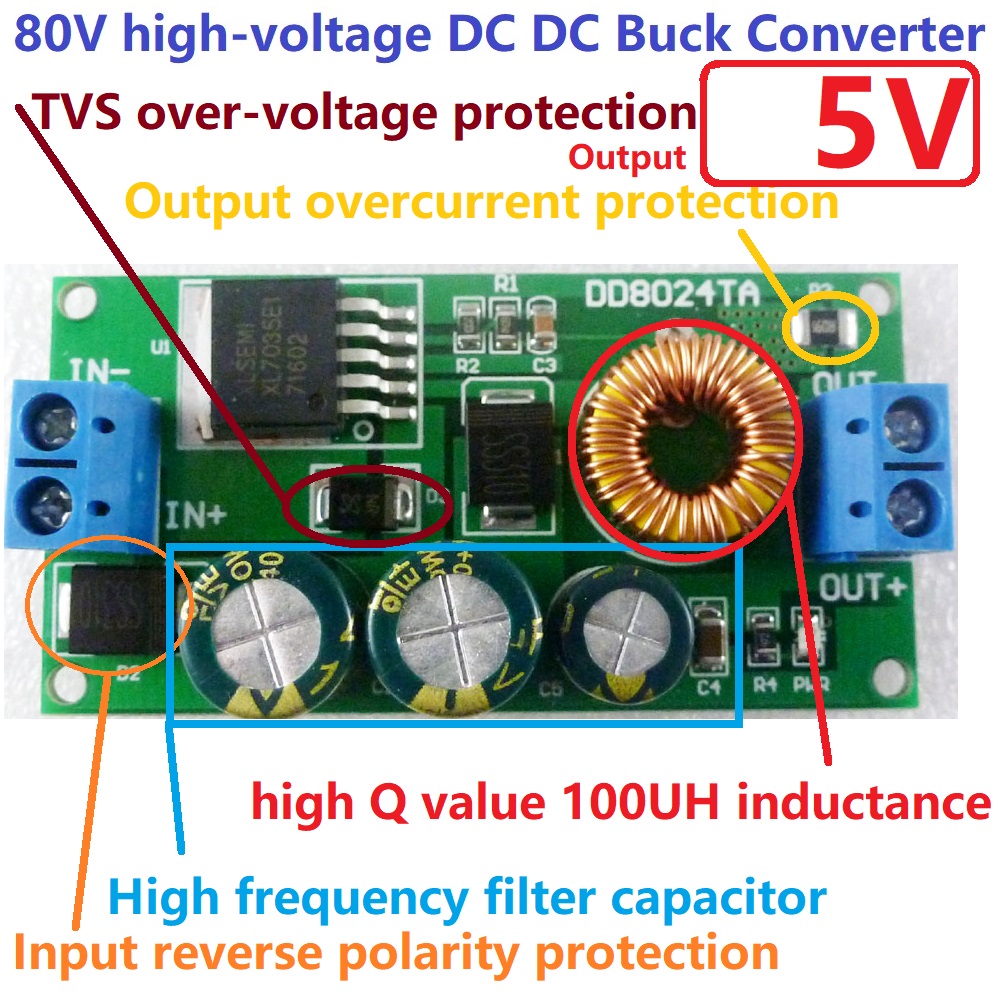

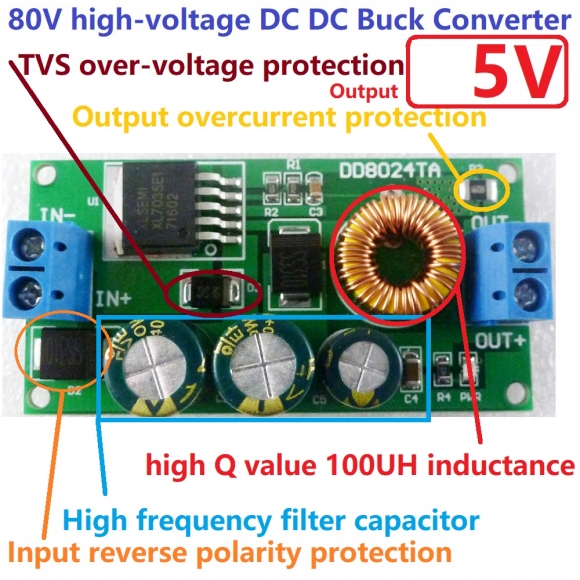

Description:

1 input reverse polarity protection
2 TVS overvoltage protection
3 high frequency filter capacitor
4 high Q value 100UH inductance
5 Output overcurrent protection
6 Over temperature protection
7 Output short circuit protection

For high power versions, Please click on the image below.

3.3V :
Input voltage 10~80V,output 3.3V

Maximum output current 1A

DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .

Quiescent current: about 2.5mA

Operating Temperature : –40°C to +85°C
Size : 59 x 30 x 16mm

Weight : With terminal 19g;No terminal 15.5g


5V :
Input voltage 10~80V,output 5V

Maximum output current 1A

DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .

Quiescent current: about 2.5mA

Operating Temperature : –40°C to +85°C



6V :
Input voltage 10~80V,output 6V

Maximum output current 1A

DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .

Quiescent current: about 2.5mA

Operating Temperature : –40°C to +85°C



9V :
Input voltage 10~80V,output 9V

Maximum output current 0.75A

DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .

Quiescent current: about 2.5mA

Operating Temperature : –40°C to +85°C



12V :
Input voltage 14~80V,output 12V

Maximum output current 0.75A

DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .

Quiescent current: about 2.5mA

Operating Temperature : –40°C to +85°C



15V :
Input voltage 17~80V,output 15V

Maximum output current 0.75A

DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .

Quiescent current: about 2.5mA

Operating Temperature : –40°C to +85°C




Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself


Applications:

Electric bicycle EBike motorcycle
DC 80V 72V 64V 60V 48V 36V 24V
CCTV camera
RS485 Modbus equipment
