Product Name : 8CH Analog-to-Digital Conversion ADC Module 0-5V 0-10V 4-20MA 0-20MA Voltage Current to RS485 Modbus PinBoard PLC Remote IO DIY

Features:

1 Working voltage: DC5V/ DC 12V(7-24V) two versions
2 Working current: standby 6-8MA, working current 11-29MA
3 Support standard Modbus RTU command, function code: write 06/16 read 03/04
4 With hardware reset function, RS485 with TVS anti-surge protection, anti-reverse power supply
5. In MODBUS command mode, up to 64 devices can be used in parallel
6 The default baud rate is 9600BPS, the baud rate can be selected by command 1200 2400 4800 19200 38400 57600 115200BPS
7 Check bit: NO(default), Even Odd
8 You can set the data sending return time, the maximum can be set to 1000ms
9 Size: 42 * 17.8 * 5mm ( only board) 42 * 17.8 * 11mm (with pin)
10 Weight: 4 grams (only board ); 4.6 grams (with pin)

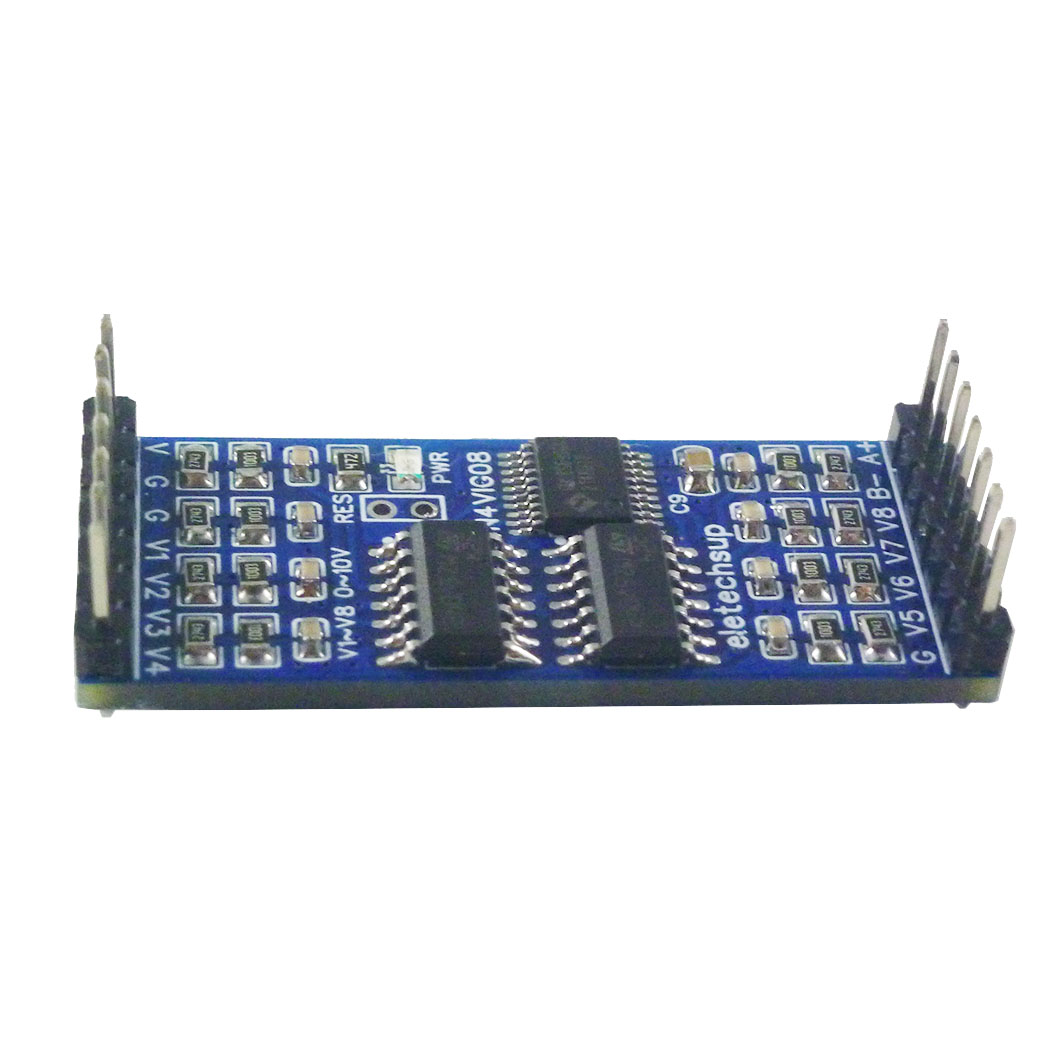

This is a 2.54MM pin header version of the RS485 0-5V/0-10V/4-20MA/0-20MA voltage/current collector.
A 12-bit ADC is used to collect the voltage signal, but the data read is voltage/current data with a unit of 0.01V/0.01MA.
The size is kept to a minimum while meeting the functional performance. It can be used as a core board and embedded into the base board.



Interface definition:

V : Power input+
G : Power input-
V1: Voltage input channel 1
V2: Voltage input channel 2
V3: Voltage input channel 3
...
V8: Voltage input channel 8
A+: RS485 signal A+
B-: RS485 signal B-




For more information, please contact me


Application

PLC Output expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Displacement/Hall sensor

PT100 K P J Thermocouple Sensor
Automatic curtain control
0-20MA/4-20MA Current
Sensor
0-10V/0-5V Voltage Sensor
Motion detector
Industrial field measurement and sensing


Package inlcuded:
1 PCS 8CH RS485 0-5V/0-10V/4-20MA/0-20MA Collector PinBoard Module
(Please select the version you want)
