N4VIH16 5V 16AI 0-5V 0-10V Current/Voltage Analog Acquisition RS485 Modbus RTU ADC Module DC 5V 12V 24V mini PinBoard

N4VIH16 5V 16AI 0-5V 0-10V Current/Voltage Analog Acquisition RS485 Modbus RTU ADC Module DC 5V 12V 24V mini PinBoard

  • Model: N4VIH16_PIN_5V
  • Availability: In stock
  • Weight: 0.003Kg
US$9.99
  • Description
  • Datasheet Document Download
  • Guidance videos
  • Reviews
  • Shipping & Returns

Package inlcuded:

1 PCS 16CH 0-5V/0-10V 4-20MA/0-20MA Current Voltage RS485 Modbus Rtu Collector Board
(Please select the version you want)




Features:

1 Working voltage: DC5V/ DC 7-24V two power supply versions
2 Working current: standby 7-8MA, working current 12-20MA
3 Support standard Modbus RTU command, function code: write 06/16 read 03/04
4 Accuracy: 0.8% (can be calibrated through register)

5 With hardware reset function, RS485 with TVS anti-surge protection, anti-reverse power supply
6 In MODBUS command mode, up to 128 devices can be used in parallel
7 The default baud rate is 9600BPS, the baud rate can be selected by command 1200 2400 4800 19200 38400 57600 115200BPS
8 Check bit: NO(default), Even Odd
9 You can set the data sending return time, the maximum can be set to 1000ms

10 Size: 44 * 35.6 * 5mm ( only board) 44* 35.6*11mmmm (with pin)
11 Weight: 7.6 grams (only board ); 9.2 grams (with pin)

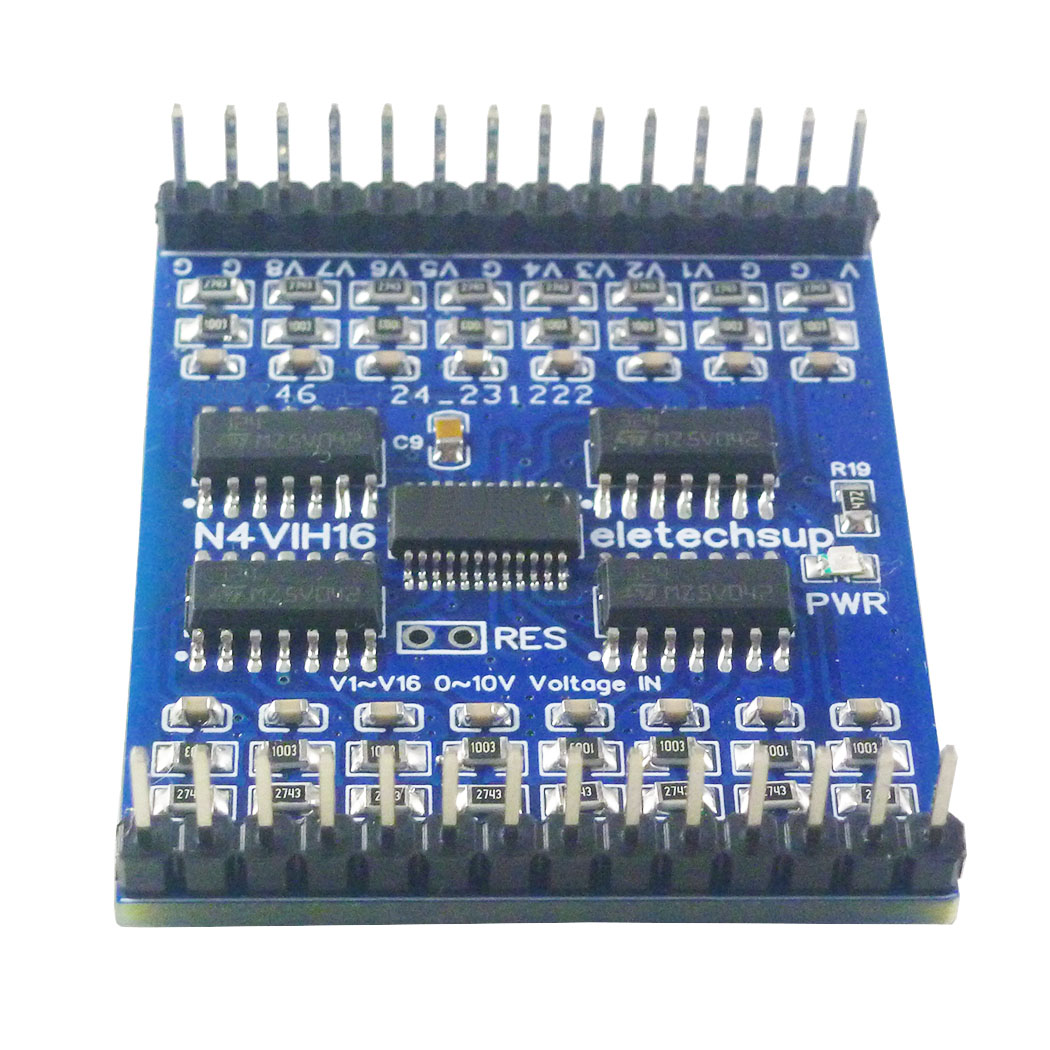

This is a 2.54MM pin header version of the RS485 0-5V/0-10V/4-20MA/0-20MA voltage/current collector.
A 12-bit ADC is used to collect the voltage signal, but the data read is voltage/current data with a unit of 0.01V/0.01MA.
The size is kept to a minimum while meeting the functional performance. It can be used as a core board and embedded into the base board.



Interface definition:

N4VIH16 16CH Voltage Version:
V : Power input+
G : Power input-
V1: Voltage input channel 1
V2: Voltage input channel 2
V3: Voltage input channel 3
...
V16: Voltage input channel 16
A+: RS485 signal A+
B-: RS485 signal B-


N4CIE16 16CH Current Version:
VIN : Power input+
GND: Power input-
I1: Current input channel 1
I2: Current input channel 2
I3: Current input channel 3
I4: Current input channel 4
...
I15: Current input channel 15
V1: Voltage input channel 1
A+: RS485 signal A+
B-: RS485 signal B-




For more information, please contact me


Application

PLC AIO expansion board DIY
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Displacement/Hall sensor

PT100 K P J Thermocouple Sensor
Automatic curtain control
0-20MA/4-20MA Current
Sensor
0-10V/0-5V Voltage Sensor
